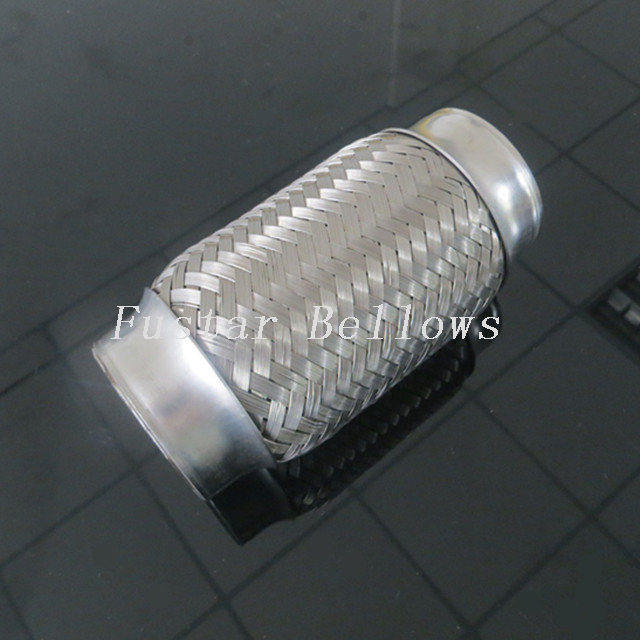

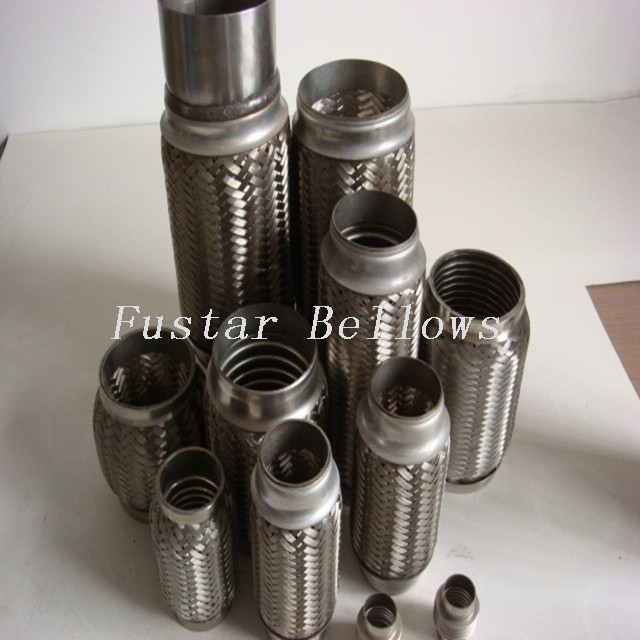

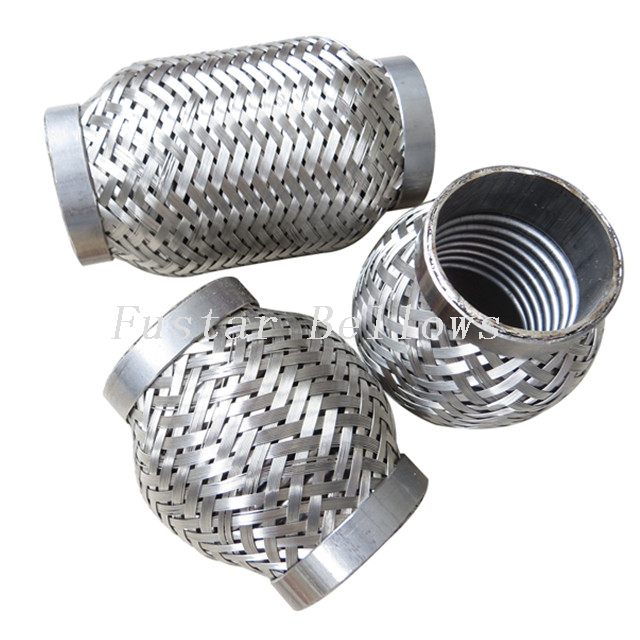

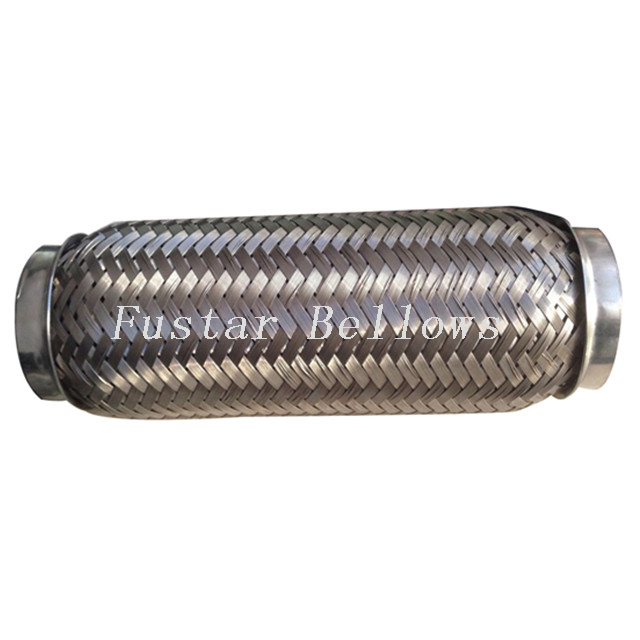

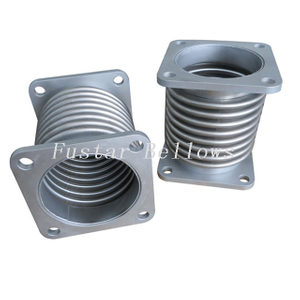

Exhaust Bellows
Size DN25(1”)- DN800(32”)
Fustar Bellows Co,.Ltd is one of the leading manufacturers of exhaust bellows, metallic bellows , expansion joints, flexible metal hoses since 1995. We can guarantee our exhaust bellows quality, so you needn’t worry about the question of quality.
Exhaust bellows expansion joint is installed on engine exhaust manifold and muffler exhaust pipe, making the entire exhaust system with flexible connection, thereby reducing vibration noise, easy installation and extend the life of the exhaust muffler system. To the system of exhaust, the exhaust bellows make a big function. We can also have methods to enhance exhaust bellows’ absorption ability. When molding corrugated pipe, we adopt the double hydraulic, with water as medium, making the corrugated pipe is more advantageous to car exhaust emissions, and corrugated pipe and the slip joint internal configurable quilt, it can eliminate the engine noise. The exhaust bellow can always eliminate the noise of operation system. To match up exhaust bellows, you can also click and know about flexible metal hose for exhaust pipe, exhaust bellows expansion joint, and exhaust bellows compensator.
Features
· Suitable for a wide range of the tail pipe link
· Can make parts with a high degree of flexibility
· In particular, we increased the height of the bellows to enhance the effectiveness of vibration absorption
· This product is used to exhaust system and high-and low-temperature
· It can be decrease engine noise and vibration
Basic Parameters
Compensation：Axial and lateral
Bellows Material: S. S. 304, 316L, 321
Other Parts Material: Carbon steel, stainless steel, PTFE
Bellow Type: Single layer or multi-layer
Connection type: Welded/Flanged
Design Temp.: Max 450 deg. C
Design Pressure: Max 25MPa
Testing:Working Pressure
Flexible Components&Assemblies
Bellows
Braided Connectors
Pump& Compression Connectors
Expansion Joints
Exhaust Flex
Exhaust Wye Manifold Assemblies
Tubing / Elbows / Adapters
Hose& Hose Assemblies
Interlock Hose, Bulk & Assemblies
Hydraulic Hoses
Application
Pipeline;
Marine;
Nuclear power station;
Building;
When ordering , connection types, nominal diameter,operating temperature & pressure and materials for both flexible hose and connections should be specified.
