Expansion Joints – Definition, Types & Applications

Metal expansion joints (compensators) are core components used to compensate for thermal expansion and displacement in pipelines, vessels, and mechanical equipment. They are widely used in buildings, bridges, piping systems, HVAC systems, and industrial equipment to absorb thermal displacement and attenuate vibration.

What Is an Expansion Joint?

Definition

An expansion joint is a flexible connecting device installed in a structure or piping system that allows for axial, lateral, and angular displacement caused by thermal expansion, seismic loads, wind loads, or mechanical vibrations, preventing engineering accidents such as cracking, leakage, and fatigue failure due to stress concentration.

Working Principle

Using a metal bellows as the core elastic element, displacement compensation is achieved through the compression or stretching of its folds. Combined with connecting components (welded/flanged/sleeved) at both ends and guiding structures, it balances thermal stress and mechanical vibrations in the system, maintaining pipeline straightness and equipment operational stability.

Purpose & Importance of Expansion Joints

Absorbs thermal expansion displacement (such as the expansion of steam pipes due to temperature increase), preventing pipe bending, deformation, or weld cracking.
Mitigates structural displacement caused by external forces such as earthquakes and wind loads, protecting building load-bearing walls and bridge piers.
Reduces fluid impact vibration and noise, minimizes equipment support wear, and extends the service life of equipment.
Seals high-temperature and high-pressure media, preventing leakage of toxic/flammable media and avoiding safety accidents.
Adapts to complex working conditions (such as high temperature, corrosion, and high pressure), meeting customized needs of special industries.

Expansion-Joint-01

Building & Bridge Importance

Without expansion joints, concrete buildings will develop cracks due to temperature-induced contraction, and steel structure bridges may experience deck misalignment or even collapse due to thermal displacement, affecting structural safety and service life.

Expansion-Joint1-02

Piping System Importance

Piping systems without expansion joints are prone to flange leakage and pipe rupture due to thermal stress concentration, leading to production interruptions, environmental pollution, and even explosion risks, seriously impacting industrial safety and economic benefits.

Types of Expansion Joints

Absorbs thermal expansion displacement (such as the expansion of steam pipes due to temperature increase), preventing pipe bending, deformation, or weld cracking.
Mitigates structural displacement caused by external forces such as earthquakes and wind loads, protecting building load-bearing walls and bridge piers.
Reduces fluid impact vibration and noise, minimizes equipment support wear, and extends the service life of equipment.
Seals high-temperature and high-pressure media, preventing leakage of toxic/flammable media and avoiding safety accidents.
Adapts to complex working conditions (such as high temperature, corrosion, and high pressure), meeting customized needs of special industries.

Definition

An expansion joint is a flexible connecting device installed in a structure or piping system that allows for axial, lateral, and angular displacement caused by thermal expansion, seismic loads, wind loads, or mechanical vibrations, preventing engineering accidents such as cracking, leakage, and fatigue failure due to stress concentration.

Working Principle

Using a metal bellows as the core elastic element, displacement compensation is achieved through the compression or stretching of its folds. Combined with connecting components (welded/flanged/sleeved) at both ends and guiding structures, it balances thermal stress and mechanical vibrations in the system, maintaining pipeline straightness and equipment operational stability.

Materials of Expansion Joints

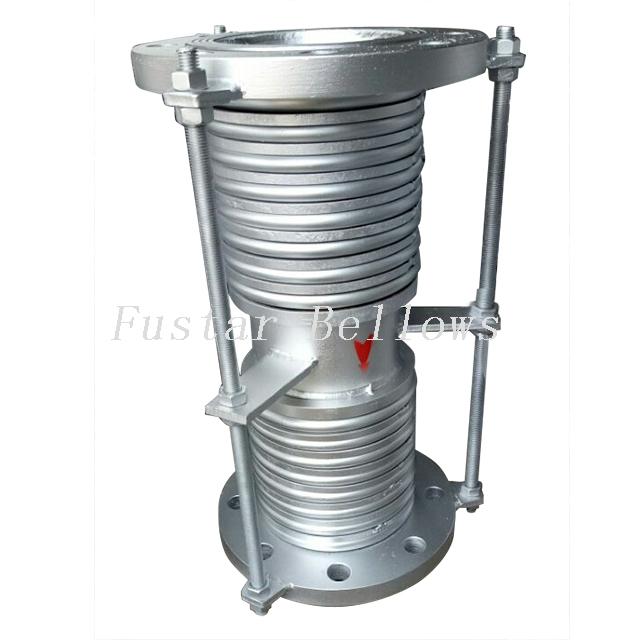

Metal Expansion Joints (Stainless Steel Bellows)

SS304/SS316 bellows, resistant to high temperatures up to 1200℃ and high pressure up to PN100, chemically stable and corrosion-resistant, with a compact structure. Used in steam pipelines and chemical reactors, absorbing axial displacement of ±300mm, reducing pipeline stress, and extending equipment life.

Rubber Expansion Joints (EPDM, Neoprene, etc.)

EPDM/Neoprene rubber, providing vibration isolation and noise reduction of 10-15dB, suitable for low to medium pressure systems of 0-2.5MPa. Used in HVAC water pipes and heating networks, preventing flange leakage, and offering a long service life of over 15 years.

Fabric Exapnsion Joints & PTFE (Non-metallic)

High-temperature fabric (glass fiber/ceramic fiber) withstands 1000℃ flue gas, used in boiler exhaust ducts, providing axial compensation of 500mm, lightweight, flexible, and easy to install. PTFE lining provides strong corrosion resistance, used in pickling pipelines and semiconductor exhaust systems.

Expansion Joint

Expansion Joint

Typical Applications of Expansion Joints

Building & Concrete Structures

Building & Concrete Structures

Building Expansion Joints absorb thermal displacement of floor slabs/walls through metal bellows, preventing concrete cracking, tile detachment, and structural stress concentration.
Typically used in large-span buildings such as commercial complexes and hospitals, they work in conjunction with expansion joint covers to achieve both aesthetics and functionality. The design must comply with concrete expansion joint spacing standards to avoid failure due to excessive compression.
Bridges & Civil Structures

Bridges & Civil Structures

Bridge Expansion Joints utilize stainless steel bellows and rubber seals to absorb thermal expansion, seismic displacement, and vehicle vibrations of the bridge deck, preventing bridge deck misalignment and pier cracking.
In cross-river bridges and highway bridges, bridge expansion joint design matches the displacement amount (axial ±500mm), ensuring smooth driving and extending the bridge's service life to over 50 years.
Piping Systems (Steam, Gas, Water)

Piping Systems (Steam, Gas, Water)

Pipe Expansion Joints balance thermal displacement in steam/gas/water pipe networks, preventing flange leakage and pipe bursts.
Power plant main steam lines use SS316 bellows resistant to 550℃ high temperatures, chemical plant pipelines use PTFE-lined expansion joints for strong corrosion resistance, and urban water supply networks use EPDM rubber expansion joints for noise reduction and vibration damping, ensuring safe system operation.
Industrial Equipment & Exhaust Systems

Industrial Equipment & Exhaust Systems

Generator Exhaust Pipe Expansion Joints absorb engine vibration and thermal displacement, preventing increased exhaust back pressure and excessive noise.
Ship exhaust systems use stainless steel braided hoses resistant to 1200℃ flue gas, and industrial flues use high-temperature fabric expansion joints that are lightweight and flexible, suitable for high-temperature and corrosive environments such as boilers and waste incinerators, ensuring efficient and stable equipment operation.

Design Standards & Selection Guide

Global Standards

Strictly adheres to international/domestic standards such as EJMA (Expansion Joint Manufacturers Association), ASME B31.3 (Pressure Piping Code), GB/T12777 (General Technical Conditions for Metal Bellows Expansion Joints), and ISO21048 (Industrial Piping Expansion Joints), while also meeting regional specifications such as British BS 8110, Indian IS 15587, Australian AS 4041, and Japanese JIS B 8277.

Selection Parameters

Comprehensive evaluation of media corrosiveness (e.g., H₂S, Cl⁻), temperature range (-196℃~1200℃), pressure rating (PN0.6~PN100), displacement (axial ±300mm/lateral 50mm/angular 5°), pipe size (DN15~DN6000), installation length, and end connection methods (welding/flange/quick connector) is required.

Custom Design Service

Provides non-standard customized design services, issuing professional calculation reports based on CFD/FEA simulations to meet special working conditions (such as ultra-high temperature, strong corrosion, and large displacement), and supports full-process OEM/ODM services.

Installation & Maintenance of Expansion Joints

Concrete Installation

Use a concrete cutting machine to create expansion joints, then fill them with polyurethane sealant and elastic rubber pads to ensure synchronous deformation with the concrete and provide waterproofing and dustproofing; leave an installation gap during installation to prevent sealant failure due to thermal expansion and contraction.

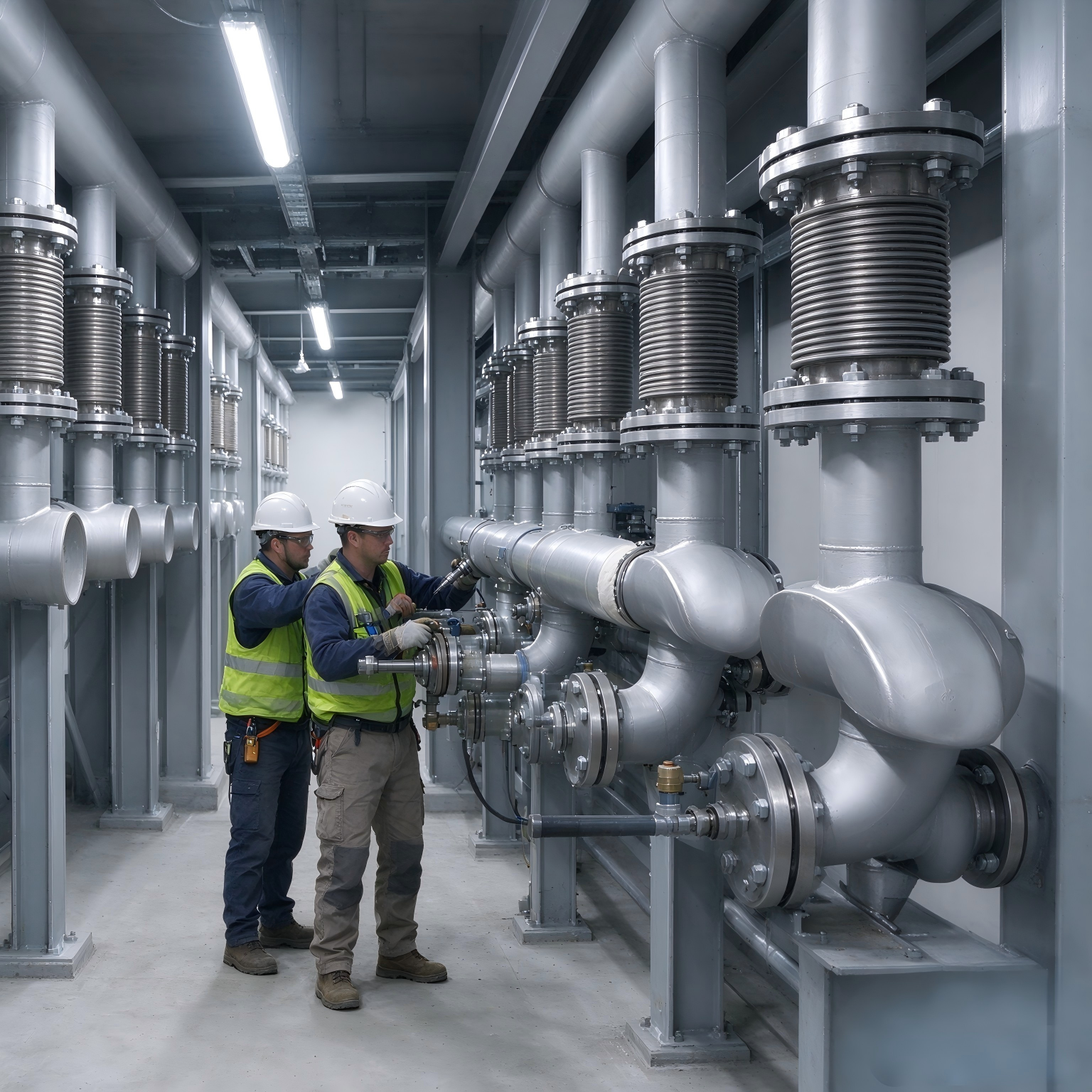

Piping Installation

Precisely locate the installation position, use welding/flange connections to ensure sealing, and install guide supports to prevent lateral displacement. After installation, perform pressure testing and leak detection to ensure safe system operation.

Maintenance Tips

Regularly check for bellows fatigue cracks, casing corrosion, anchor point loosening, seal leaks, and abnormal vibrations; lubricate connecting parts quarterly and conduct a comprehensive inspection annually; use metal repair agents to repair minor damage, and replace severely damaged parts promptly.

Repair & Replacement of Expansion Joints

Expansion-Joint6-1

Concrete Repair

For cracks in concrete expansion joints, a composite repair method using polyurethane sealant and fiberglass fabric is employed to restore waterproofing and expansion functions; severe cracks require cleaning the substrate before refilling with elastic sealing material.

Expansion-Joint6-2

Building & Industrial Repair

For walls, equipment interfaces, and other areas, a composite repair method using metal repair patches and elastic sealing tape is used to prevent leakage and displacement; industrial equipment interfaces require airtightness testing to ensure the effectiveness of the repair.

Expansion-Joint6-3

Replacement Indicators

When bellows exhibit through cracks, loss of elasticity (inability to return to their original shape), irreparable leaks, or excessive displacement (exceeding 15% of the design compensation), they must be replaced promptly; the replacement part must match the original model specifications to ensure system compatibility.

FAQs On Expansion Joints

Q Contraction vs expansion joint – key differences

A
Contraction joints control shrinkage cracks (preventing cracking), while expansion joints absorb thermal expansion and displacement (preventing deformation). The two have different design principles but both are structural deformation control measures.
Q Both control joints (to control shrinkage) and expansion joints (to absorb thermal displacement) are needed in buildings; expansion joints are mainly used in piping systems, while control joints are mostly used in concrete structures.

A
A construction joint is a temporary joint for construction phasing, while an expansion joint is a permanent deformation joint (designed and pre-planned). The two are not interchangeable – the former is for construction needs, the latter for functional requirements.
Q Expansion joints are used to absorb thermal displacement and structural deformation, while control joints are used to control concrete shrinkage cracks. The two functions are complementary, but their application scenarios differ – both are needed in buildings.

A
Both control joints (to control shrinkage) and expansion joints (to absorb thermal displacement) are needed in buildings; expansion joints are mainly used in piping systems, while control joints are mostly used in concrete structures.
Q What is the difference between an expansion joint and a control joint?

A
Expansion joints are used to absorb thermal displacement and structural deformation, while control joints are used to control concrete shrinkage cracks. The two functions are complementary, but their application scenarios differ – both are needed in buildings.
