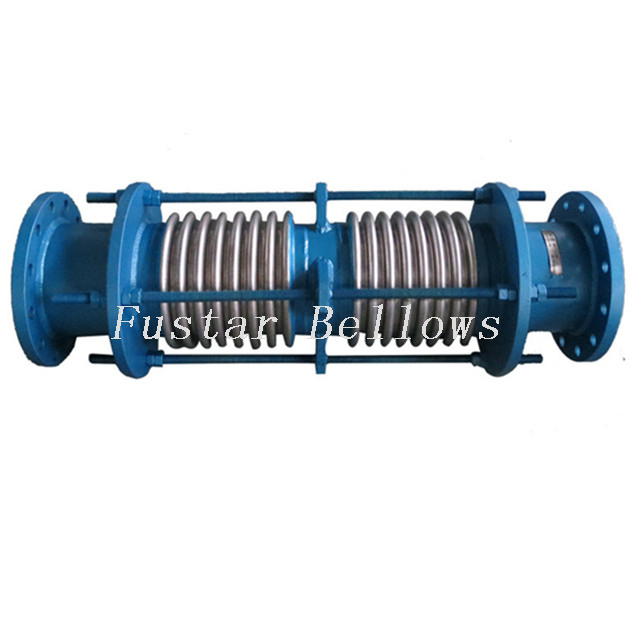

EJMA Standard Stainless Steel Dual Axial Corrugated Bellow Expansion Joint

Our dual axial expnasion joint works in the same way a hinged expansion joint does.It utilizes the ability of a bellows to rotate in angular direction.The axial movement capability is the result of the angular rotation of the bellows and their center to center distance. The longer the distance between the bellows, the larger is the movement capacity.
Availability:
Quantity:
  • DN350
  • Fustar
  • 83071000

Dual Axial Corrugated Bellow Expansion Joint

The dual axial compensator is composed of two bellows connected by one middle pipe, rigid base connected to the middle section,and two flanges or end pipes in two ends. Each bellows compensates the displacement of each pipe section as a single ordinary expansion joint. The rigid connection between the base and middle section pipe can withstand all the forces and moments related to the application.

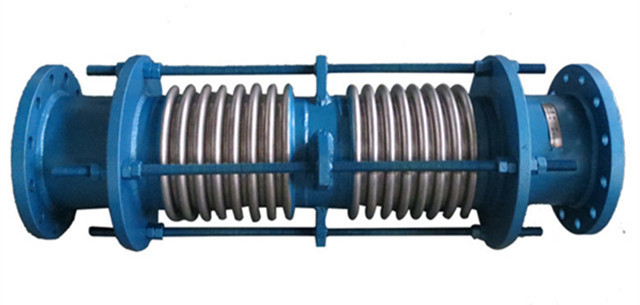

Axial expansion joint

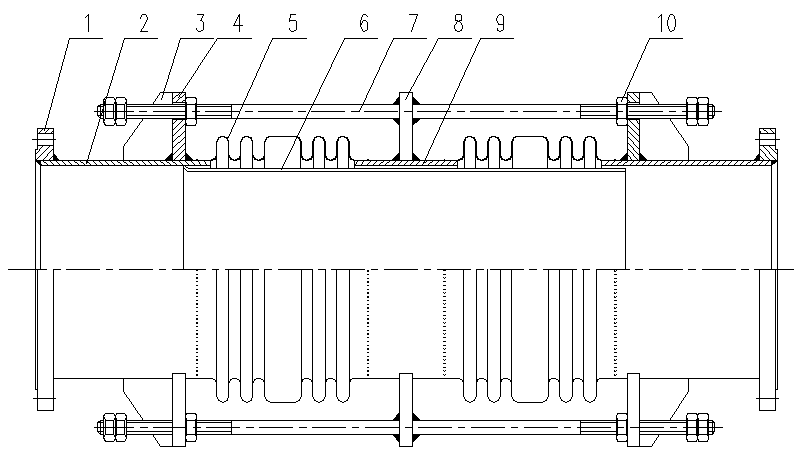

2. 复式轴向型

       Dual Axial Expansion Joint

Drawing


NO

ITEMS

MATERIALS


NO

ITEMS

MATERIALS

1

Flange

SS304/Carbon steel

6

Inner Sleeve

SS304/Carbon steel

2

Connection tube

Carbon steel

7

Guide rod

Carbon steel

3

Stiffened plate

Carbon steel

8

Guide plate

Carbon steel

4

Ear Plate

Carbon steel

9

Middle connection tube

Carbon steel

5

Bellow

SS304/SS316L/SS321

10

Hex nut

Carbon steel


Technique Parameter of Dual Axial Bellows Expansion Joint

Normal Diameter

  Length

     Axial

Movements

          Axial

       Stiffness

Joint Size

D X S

 Radial Max.       Size D1

 Working

 Pressure

  mm

mm

mm

 N/mm

mm

mm

Mpa

100

490~800

30~80

180~460

Ø108X4

340

0.25~4.0

150

500~860

32~80

169~410

Ø219X4.5

440

0.25~4.0

200

560~880

40~140

310~720

Ø219X6

529

0.25~4.0

250

560~1090

48~146

389~862

Ø273X8

570

0.25~4.0

300

720~1360

56~172

420~910

Ø325X8

650

0.25~4.0

350

720~1360

60~172

463~1059

Ø377X8

675

0.25~4.0

400

720~1360

60~172

637~1273

Ø426X10

740

0.25~4.0

500

760~1360

72~168

799~1598

Ø529X10

880

0.25~2.5

600

760~1510

72~168

1536~3568

Ø630X10

1030

0.25~2.5

700

760~1510

76~180

1815~3630

Ø720X10

1120

0.25~2.5

800

760~1510

76~180

1291~2583

Ø820X12

1260

0.25~2.5

900

760~1510

76~180

1548~2809

Ø920X12

1380

0.25~2.5

1000

760~1510

76~180

1573~2936

Ø1020X12

1480

0.25~2.5

* Theyre the regular sizes based on pressure of PN16 above, we can design and produce according to users detail required sizes and conditions.
