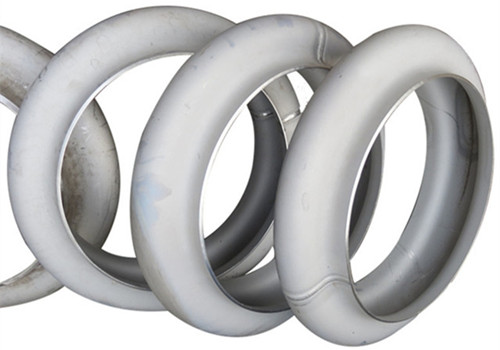

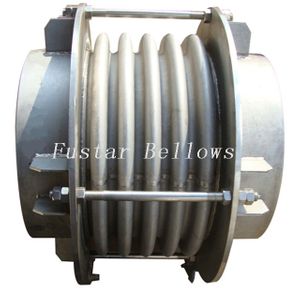

Carbon Steel Thick Wall Expansion Joint

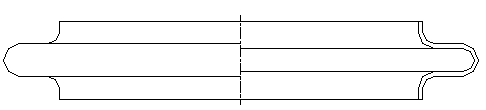

Thick Wall Expansion Joint | Structure Diagram |
Features
There’re two kinds of expansion joint :Intergral forming and elded forming, mainly used to compensate for axial displacement of the device itself, and more used for vessel thermal deformation compensation, small compensation, usually only 1 to 2 waves.
Technique Parameter
DN
| Outer Diameter | Convolution Height | Circle Radius | Length | Wall Thickness /Single Bellow Max Movements (mm/mm) | |||
mm | mm | mm | R | mm | Q235A | SS304 | SS316L | SS321 |
150 | 159 | 30 | 12 | 4R+5S | 3.0/0.7 | 0.8/2.9 | 0.8/3.0 | 0.8/2.9 |
150 | 159 | 45 | 20 | 4R+5S | 3.0/1.1 | 0.8/3.3 | 0.8/3.5 | 0.8/3.4 |
200 | 219 | 40 | 15 | 4R+5S | 3.0/1.1 | 0.8/4.4 | 0.8/4.5 | 0.8/4.4 |
200 | 219 | 55 | 20 | 4R+5S | 3.0/1.7 | 1.2/5.4 | 1.0/5.8 | 1.0/5.6 |
250 | 273 | 50 | 20 | 4R+5S | 3.0/1.7 | 1.0/5.2 | 1.0/5.4 | 1.0/5.3 |
250 | 273 | 65 | 25 | 4R+5S | 3.0/2.0 | 1.2/6.2 | 1.2/6.5 | 1.2/0.3 |
300 | 325 | 60 | 20 | 4R+5S | 3.0/2.3 | 1.5/6.9 | 1.2/7.4 | 1.2/7.2 |
300 | 325 | 80 | 30 | 4R+5S | 3.0/2.6 | 1.5/7.7 | 1.5/8.0 | 1.5/7.8 |
350 | 377 | 70 | 25 | 4R+5S | 3.0/2.6 | 1.5/8.0 | 1.5/8.3 | 1.5/8.1 |
350 | 377 | 80 | 30 | 4R+5S | 3.0/2.6 | 2.0/8.0 | 1.5/8.8 | 1.5/8.5 |
400 | DN+2S | 70 | 30 | 4R+5S | 3.0/2.6 | 1.5/7.3 | 1.2/7.6 | 1.2/7.4 |
400 | DN+2S | 95 | 30 | 4R+5S | 3.0/3.6 | 3.0/9.6 | 2.0/11.0 | 2.0/10.7 |
450 | DN+2S | 80 | 30 | 4R+5S | 3.0/3.2 | 2.0/8.7 | 1.5/9.4 | 1.5/9.1 |
450 | DN+2S | 105 | 30 | 4R+5S | 3.5/4.3 | 3.0/12.1 | 2.5/12.6 | 2.5/12.4 |
500 | DN+2S | 85 | 30 | 4R+5S | 3.0/3.5 | 2.0/10.2 | 2.0/10.6 | 2.0/10.3 |
500 | DN+2S | 105 | 30 | 4R+5S | 3.5/4.5 | 3.0/12.6 | 2.5/13.6 | 2.5/13.2 |
550 | DN+2S | 95 | 35 | 4R+5S | 3.0/3.8 | 2.0/10.4 | 2.0/10.7 | 2.0/10.4 |
550 | DN+2S | 105 | 35 | 4R+5S | 3.5/4.5 | 3.0/12.2 | 2.5/12.9 | 2.5/12.6 |
600 | DN+2S | 105 | 35 | 4R+5S | 3.0/4.1 | 2.5/12.3 | 2.0/12.7 | 2.0/12.4 |
600 | DN+2S | 125 | 35 | 4R+5S | 3.5/5.6 | 3.0/16 | 3.0/16.8 | 2.0/16.2 |
650 | DN+2S | 115 | 35 | 4R+5S | 3.0/5.0 | 3.0/14.1 | 2.5/14.6 | 2.5/14.2 |
650 | DN+2S | 125 | 35 | 4R+5S | 3.5/5.7 | 3.0/16.6 | 3.0/17.3 | 2.0/16.8 |
700 | DN+2S | 125 | 35 | 4R+5S | 4.0/5.7 | 3.0/17.4 | 3.0/13.1 | 3.0/17.3 |
750 | DN+2S | 125 | 35 | 4R+5S | 4.0/6.1 | 3.0/18.1 | 3.0/18.8 | 3.0/18.3 |
800 | DN+2S | 125 | 35 | 4R+5S | 4.0/6.2 | 3.0/18.1 | 3.0/18.8 | 3.0/18.3 |
900 | DN+2S | 125 | 35 | 4R+5S | 4.0/6.4 | 3.0/19.6 | 3.0/20.4 | 3.0/19.8 |
1000 | DN+2S | 150 | 45 | 4R+5S | 4.0/7.6 | 3.5/21.4 | 3.5/22.3 | 3.5/21.6 |
* The above parameters are designed according to GB/16749-1997.
Application
Carbon steel thickwall expansion joints are commonly used in the pumps, tanks, compressors, turbines at the outlet of container, in order to reduce the force of the above equipment.
