Characteristics of Bellows Designs

Characteristics of Bellows Designs

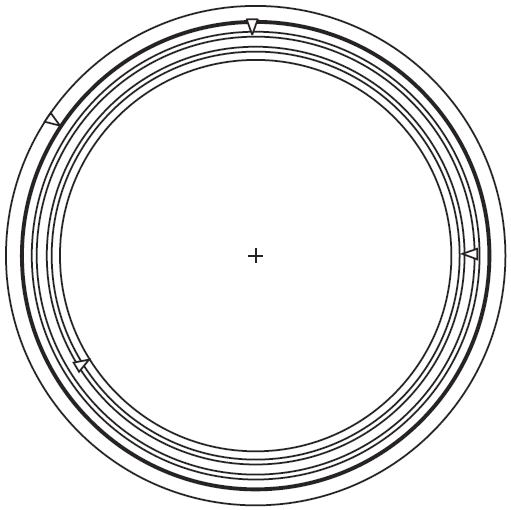

Multi-Ply

*  Each ply made from welded tube

*  Each ply leak proof

*  Wetted ply can be made of different (higher alloy)

material for enhanced corrosion resistance

*  Allowance for weep holes

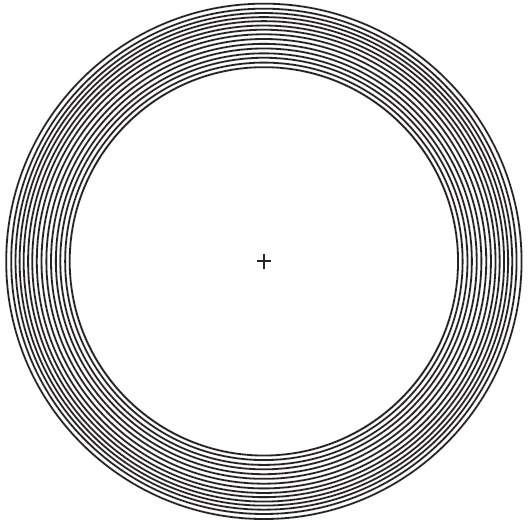

Multi-ply (Spiral)

*  Inner/Outer plies welded

*  No sudden leak

*  Wetted ply can be made of different(higher alloy) material

 for enhanced corrosion resistance
