DN125-250MM BS EN1092 PN10 Flange End Expansion Joint

DN125-250MM BS EN1092 PN10 Flange End Expansion Joint

The DN125-250MM flanged end expansion joint is designed to absorb thermal expansion or terminal movement in piping systems.They're available in different sizes and materials.The flanged expansion joint is also called as expansion bellows,flanged compensators,pipeline bellows,flexible joint and many more terms,but they're the same meaning. We manufacture this expansion joint according to GB/T12777-2008.

Flange End Connection For Expansion Joint Introduction

Flange Diameter: DN15-DN8000MM

Flange Pressure: 0.6~5.0Mpa according to different pressure grade

Flange Standard: ANSI,DIN,JIS,BS and GB

Flange Material: Stainless steel SS304,SS316L,SS321 or carbon steel

Flange Type : Welding neck flange

                       Flat flange for welding

                       Threaded flange

                       Blind flange

                       Lapped flange/Plain collar

                       Lapped joint(short stub end)

                       Slip-on flange

                       Socket welding flange

* Any other non-standard flanges can be customized as client's detail sizes requirement.


Drawing of DN125-250MM BS EN1092 PN10 Flange End Expansion Joint

Specifications of DN125-250MM Expansion Joint
1 Ear plate material: carbon steel Q235A

2 Nut: GB/T41-2000,carbon steel Q235A

3 Tie rod: carbon steel Q235A

4  Inner bellows: inner size of 125mm,stainless steel SS304

5  BS EN1092 flange standard : inner diameter of 125mm,stainless steel SS304

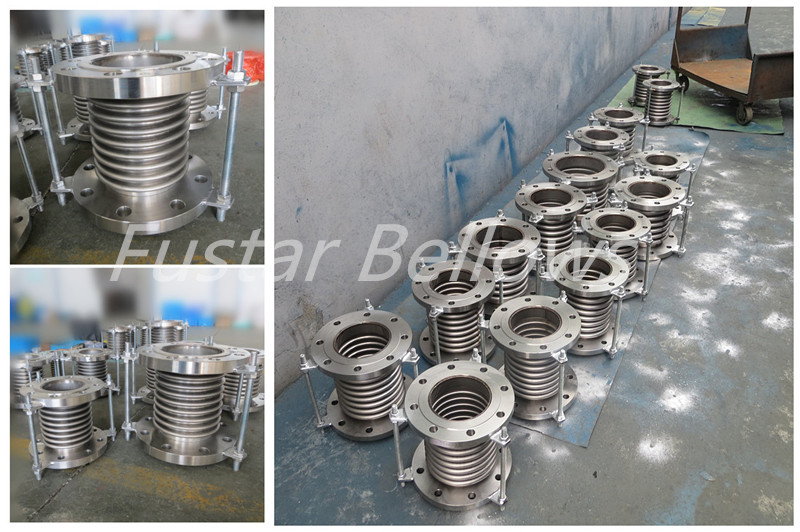

Photo Gallery
