Bellows Movements

Views: 4     Author: Site Editor     Publish Time: 2017-04-08      Origin: Site

Bellows Movements

Axial Movement

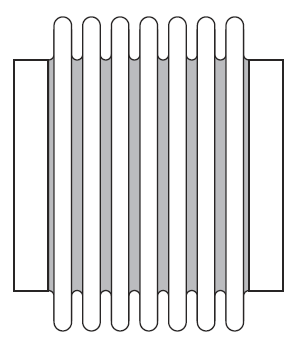

bellows neutral.png



Bellows neutral

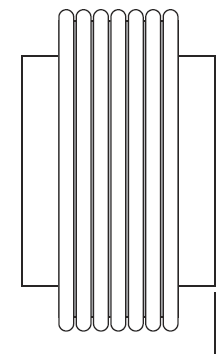

bellows compressed.png




Bellows compressed












 Total Movement

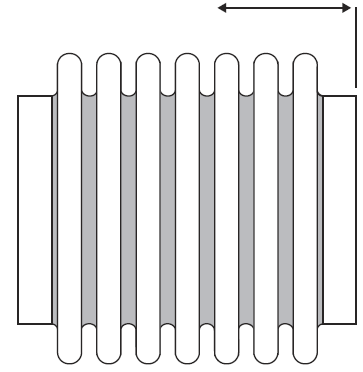

bellows expanded.pngBellows expanded


















Bellow Flexibility

A bellows consists of one or more convolutions and each convolution can have a position that is neutral , extended or compressed.

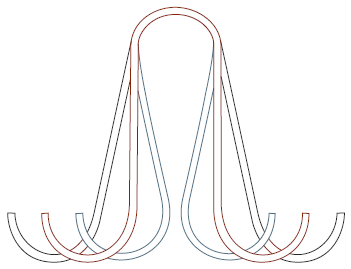

 bellow flexibility.png



Bellows (convolution) in neutral position

Bellows (convolution) in extended position

Bellows (convolution) in compressed position

When the convolutions are in a wequence , the effect is a piping componet that can compensate for a number of movements.
