Commercial Building Fire Sprinkler Hose

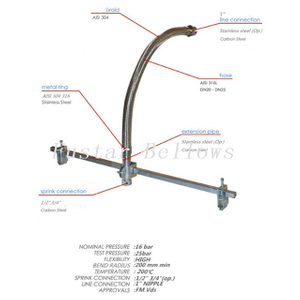

Commercial building fire sprinkler hose assembly consists of a flexible hose,inlet fitting for connection to the branch line and an outlet fitting for connection to the sprinkler.These flexible hose with fittings are intended to be installed using the anchoring devices referenced in the manufacture’s installation instructions.Flexible hose length is limited to a maximum of 2000mm so as to minimize the potential for inadequate support and undesirable movement of a sprinkler after installation.
The fire sprinkler hoses have high flexibility or limited flexibility.The fire hoses having high flexibility are intended for use in applications where frequent movement between the two ends of the hose is expected after installation. Fire sprinkler hoses having limited flexibility are intended for use in applications where little or no movement between the two ends is expected after installation.
Specifications
| Material Features |
| Bellow Hose | AISI 316 Stainless Steel |
| Sprinkler Connection | AISI304/AISI316 |
| Extension Pipe | AISI304/AISI316 |
| Braiding wire | AISI 304 Stainless Steel |
| Fire Line Connections | AISI304/AISI316/Carbon Steel |
| Connection Adapter | Carbon Steel |
| Dimensions |
| Nominal Diameter | DN20(3/4”) ,DN25(1”) |
| Connection | 1” nipple x 1/2” Special sprinkler head connection 1” nipple x 3/4” (Optional) |
| Standard Length | 500mm-700mm-1000mm-1500mm-2000mm |
| Friction Losses and Specifications |
| Hose Length | Input End | Output End | Max.No of 90℃ Bends | Max. Pressure |
| 0.5M | 1 inch | 1/2 inch | 3 | 20 bar |
| 0.7M | 1 inch | 1/2 inch | 4 | 20 bar |
| 1.0M | 1 inch | 1/2 inch | 4 | 20 bar |
| 1.5M | 1 inch | 1/2 inch | 4 | 20 bar |
| 2.0M | 1 inch | 1/2 inch | 4 | 20 bar |
Features
· Fully assembled for ease of installation.
· One-piece brackets available in 24″ and 48″ width.
· No tools required for bracket installation.
· Compatible with pendant, semi-recessed and concealed sprinkler heads.
· Hose lengths from 28″ to 71″ long.
· Outlet sizes available in 1/2″ and 3/4″.
· Unbraided and braided hose assemblies.
Application
The metal fire sprinkler hoses are intended for use in hydraulically-designed sprinkler systems.The hydraulic pressure loss associated with these devices needs to be included in the dydraulic design calculations.
