DN350*350*160MM Fabric Expansion Joint
The DN350*350*350mm fabric expansion joint is a flexible component consisting of a composite non-metal mateirals,end flanges connected to adjacent pipeline and insulation materials.The introduction of fabric expansion joints has changed the way engineers solve thermal growth problems in gas transfer applications.This fabric bellows expansion joint will normally accommodate large movements over relatively short installation lengths.
Their use in large dusting systems in place of metallic units reduces cost and weight,as well as enables fast,simple replacements.We design fabric joints to meet your service requirements and offer a range of multi-layer fabrics for low to high temperature applications.

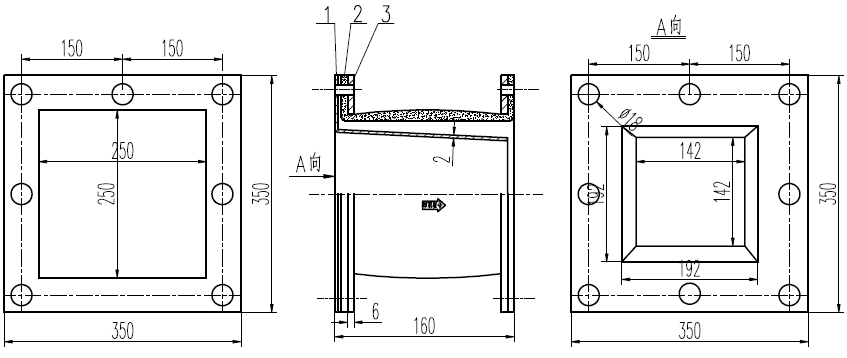

Drawing of DN350*350*160MM Fabric Expansion Joint
Construction
1 Inner sleeve
2 Five ply fabric materials :
1st:steel wire mesh 0.15mm
2nd:silicone fabric 1.2mm
3rd:PTFE cloth 0.18mm
4th:double layers glass fabric 0.9mm X2=1.8mm
5th:Needle felted carpet 10mm
3 Flange

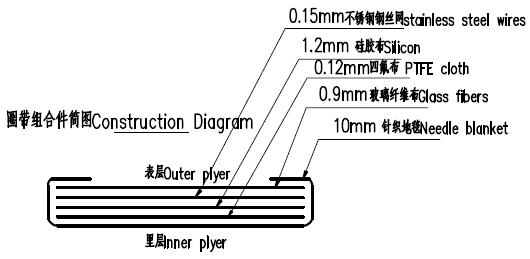

Fabrics Material Diagram
Specification Description
Inner sleeve material: stainless steel SS304
Thickness of internal rectangular sleeve:2.0mm
Flange material: carbon steel
Flange thickness: 6mm
Working temperature: 250 celcius degree
Fabric Expansion Joint Application
• Gas turbine exhaust pipeline
• Desulfurization system
• Flue gas duct and exhaust system for kinds of industries
• Coal fired boiler, circulating fluidized bed boiler and exhaust-heat boiler for flue gas duct
DN350*350*160MM Fabric Expansion Joint
The DN350*350*350mm fabric expansion joint is a flexible component consisting of a composite non-metal mateirals,end flanges connected to adjacent pipeline and insulation materials.The introduction of fabric expansion joints has changed the way engineers solve thermal growth problems in gas transfer applications.This fabric bellows expansion joint will normally accommodate large movements over relatively short installation lengths.
Their use in large dusting systems in place of metallic units reduces cost and weight,as well as enables fast,simple replacements.We design fabric joints to meet your service requirements and offer a range of multi-layer fabrics for low to high temperature applications.
Drawing of DN350*350*160MM Fabric Expansion Joint
Construction
1 Inner sleeve
2 Five ply fabric materials :
1st:steel wire mesh 0.15mm
2nd:silicone fabric 1.2mm
3rd:PTFE cloth 0.18mm
4th:double layers glass fabric 0.9mm X2=1.8mm
5th:Needle felted carpet 10mm
3 Flange
Fabrics Material Diagram
Specification Description
Inner sleeve material: stainless steel SS304
Thickness of internal rectangular sleeve:2.0mm
Flange material: carbon steel
Flange thickness: 6mm
Working temperature: 250 celcius degree
Fabric Expansion Joint Application
• Gas turbine exhaust pipeline
• Desulfurization system
• Flue gas duct and exhaust system for kinds of industries
• Coal fired boiler, circulating fluidized bed boiler and exhaust-heat boiler for flue gas duct
