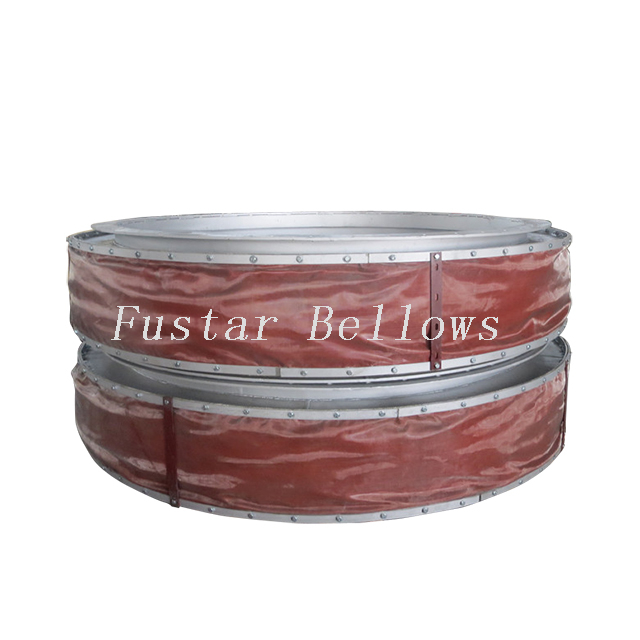

DN2000-400MM Round Fabric Bellow Expansion Joint

The DN2000-400MM round fabric bellow expansion joints are flexible joints designed to provide stress relief and seal in gaseous media in ducting systems. They're produced from a wide variety of fabric materials ,including stainless steel wires,glass fibers,PTFE cloths,silicon,silicate ceramic fiber blanket depending on the designs. Design temperature: 420℃ Design pressure:-0.015Mpa Axial movement:-100mm Lateral movement:+40mm High temperature painting: interzinc

Price: $ 1190

Model:
DN2000-400MM
Brand:
Fustar
Code:
73072900

Quantity:
Availability:





Add to Cart Inquire Add to Basket

Product Description

Product Description

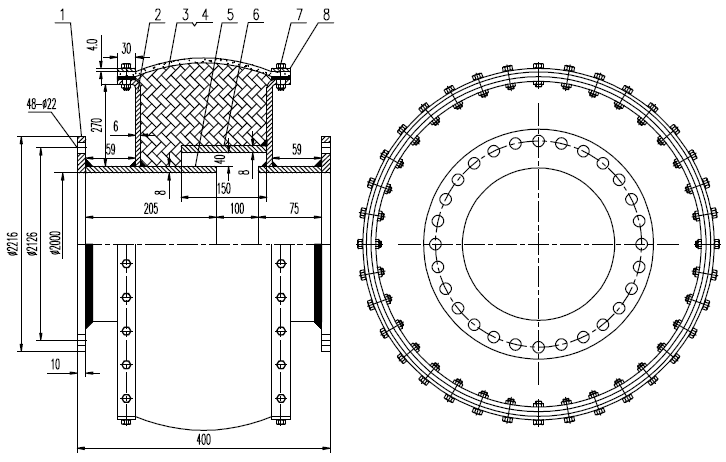

Drawing of DN2000-400MM Round Fabric Bellow Expansion Joint

1 Flange:Q345 carbon steel; 2 Plate:Q345 carbon steel; 3 Ring strap assy:Non-metallic composite materials;

4 Stuffing material:Aluminum silicate ceramic fiber; 5 Connection tube: Q345; 6 Inner tube: Q345;

7 Bolt+Nut+Washer: Q235A Grade; 8 Clamp plate: Q345

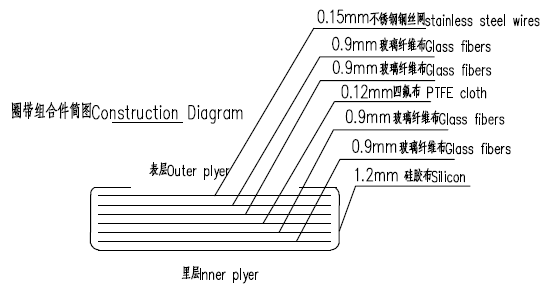

DN2000-400MM Round Fabric Bellow Expansion Joint Structure of Fabric Layers

The number of layers or plies is dependent upon the design conditions and we usually limit fabric bellows expansion joints to five or more layers.

1^st ------ 0.15mm stainless steel wire mesh (outer layer)
2^nd------1.2mm silicone fabric

3^rd------ 0.9mm*2ply thickness glass fiber

4^rd------ 0.12mm thickness PTFE cloth

5^th------0.9mm*2ply thickness glass fiber

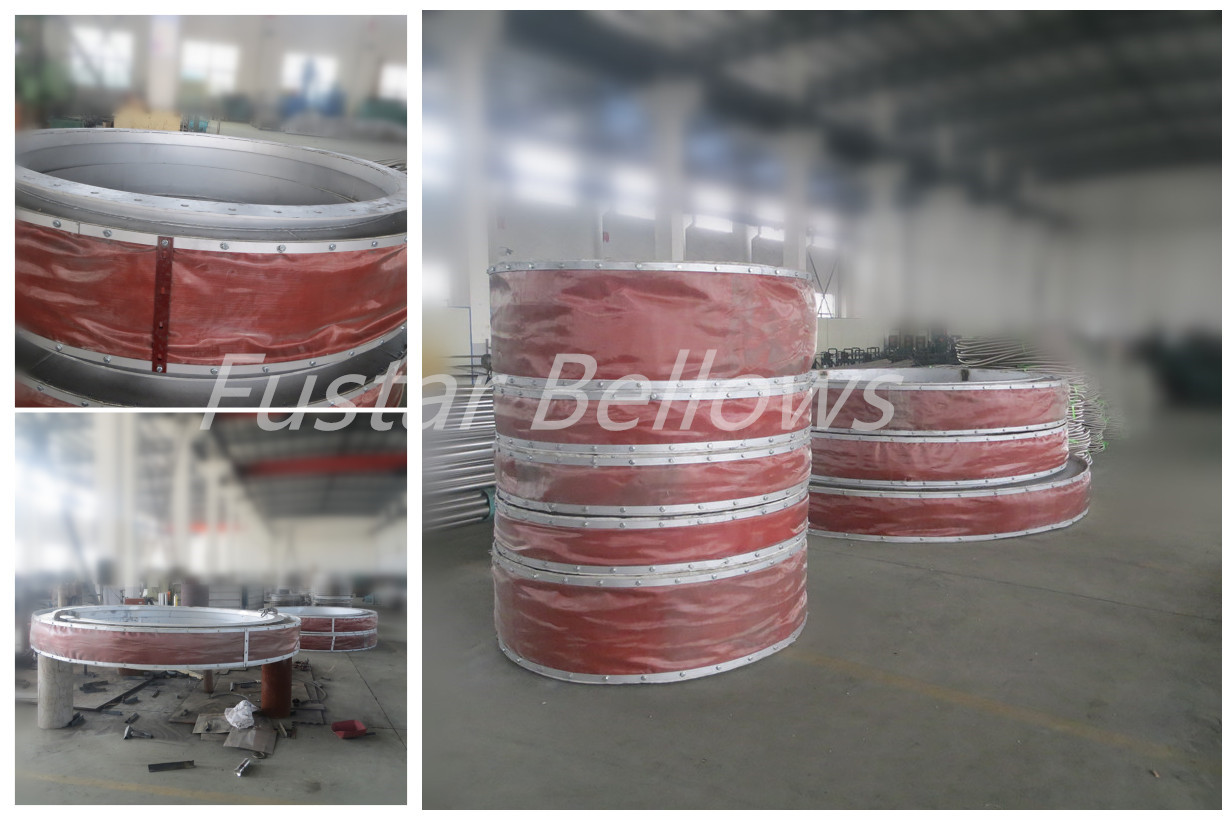

Photo Gallery of Round Fabric Expansion Joints in Working Shop

Non metallic expansion joints production
