SS310 DN1000-500mm High Temperature Expansion Joint

SS310 high temperature expansion joint is commonly used in piping systems to absorb thermal expansion or terminal movements. This SS310 bellows expansion joint with hydroformed bellows for minimal residual stresses and high temperature resistant to 1200℃.
Price: $ 4900
Availability:
Quantity:

  • DN1000-500mm
  • Fustar
  • 83071000

High Temperature Metal Bellows Expansion Joint

1. The expansion joints are available in sizes from 2” to 200” in any face to face required.

2. Our flanged and weld-in styles are the most popular.

3. EJMA(Expansion Joint Manufactures Association) analysis done on all expansion joints.

4. Available in virtually and alloy and in single or multiple plies. High temperature metal bellow expansion joints manufactured from SS304,SS316L,SS321,SS310,inconel stainless steel are the most common.


Technical Requirements For The SS310 DN1000 Metal Expansion Joint

Size: DN1000

Total length: 500mm

Design pressure: 0.05Mpa

Test pressure: 0.1Mpa

Design temperature: 900℃

Axial compensation: 50mm

Standard: GB/T12777-2008

Hydraulic test pressure: 0.1Mpa

Application: Used in furnace

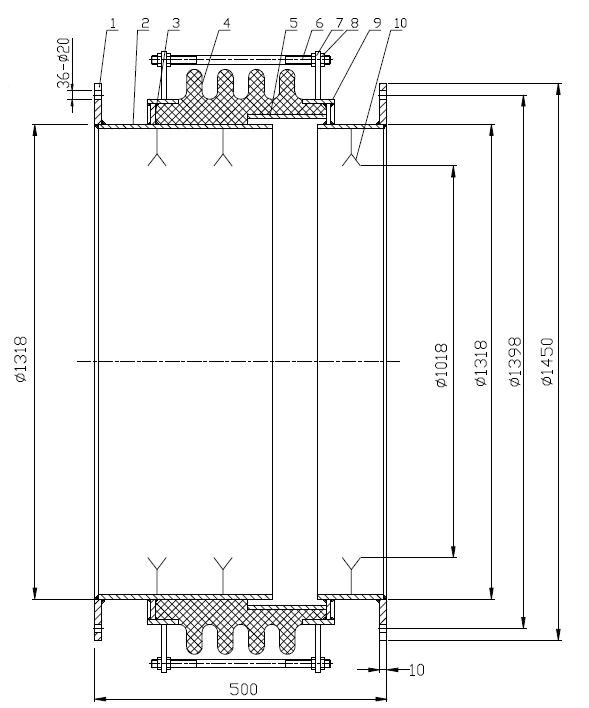

Drawing of DN1000-500mm Bellows Expansion Joint

drawing of high temperature expansion joint


Materials of DN1000-500mm High Temperature Expansion Joint

1. Flange: Q235B

2. Welding: 310S

3. Ring board: 310S

4. Bellows: 310S

5. Inner sleeve: 310S

6. Transport rod: Q235B

7. Ear plate: Q235B

8. Nut: Q235B

9. Welding tube: SS304

10. Anchor: 310S

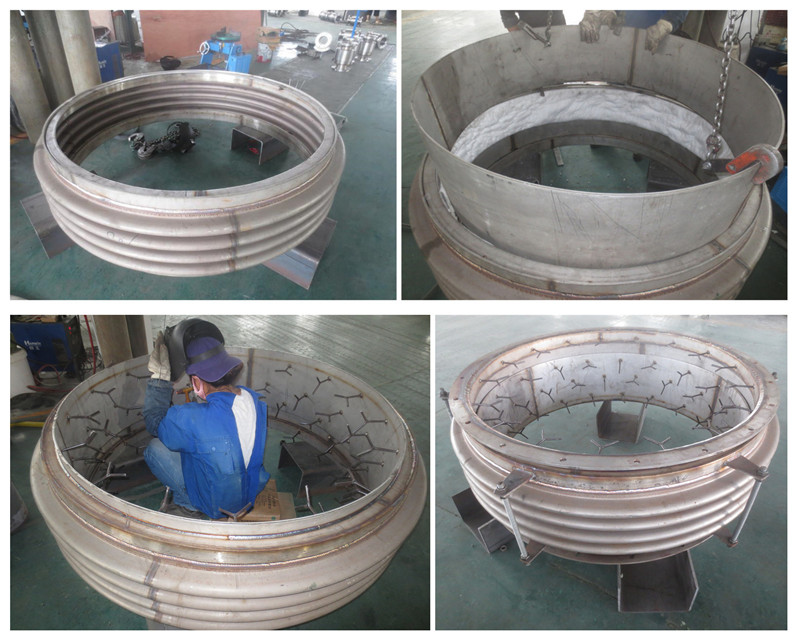

Production of The SS310 Stainless Steel Expansion Joint

SS310 high temperature expansion joint
