4in-170mm ANSI Flanged SS304 Expansion Joint
ANSI flanged bellow expansion joints are designed and manufactured in accordance with EJMA standard strictly.The basic expansion joints are made by attaching flanges,welding pipes to stainless steel bellows.ANSI flanged single bellow expansion joints are most commonly used for axial compression and extension but may also be designed for lateral offset and angular movement.We commonly utilize multi-ply metal bellows for the maximum cycle life.Inner sleeve,tie rods can be added to the flanged metal expansion joint to enhance the performance capabilities.

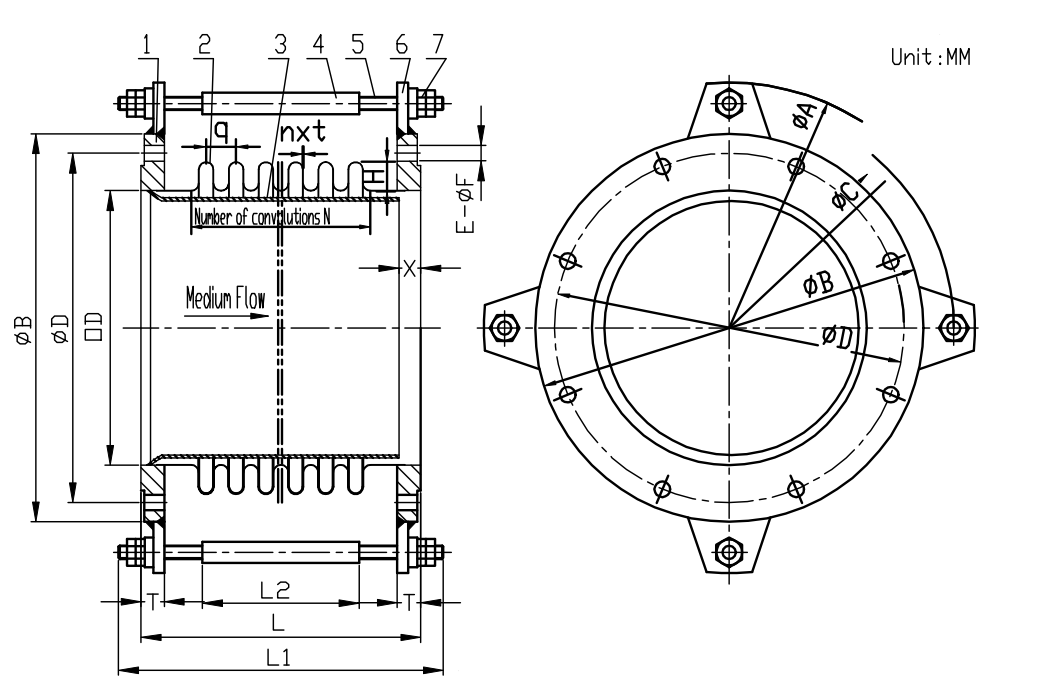

Drawing of ANSI Flange Expansion Joint
Items Of The SS304 4"-170MM Expansion Joint
1. ANSI 150# Flange: Q235B carbon steel
2. Bellow: SS304
3. Inner sleeve: SS304
4. Limited rod: Q235B carbon steel
5. Transport rod: Q235B carbon steel
6. Ear plate: Q235B carbon steel
7. Nut: Q235B carbon steel
Bellows Parameters
OD: 100mm
nxt: 0.5mm+0.6mm
q: 21mm
H: 18mm
N: 6
L1: 245mm
L2: 105mm
Flange Parameters
¢A:310mm
¢B:230mm
¢C:280mm
¢D:190.5mm
E-¢F:8-¢19
T: 23.8mm
Transport rod:3*M12

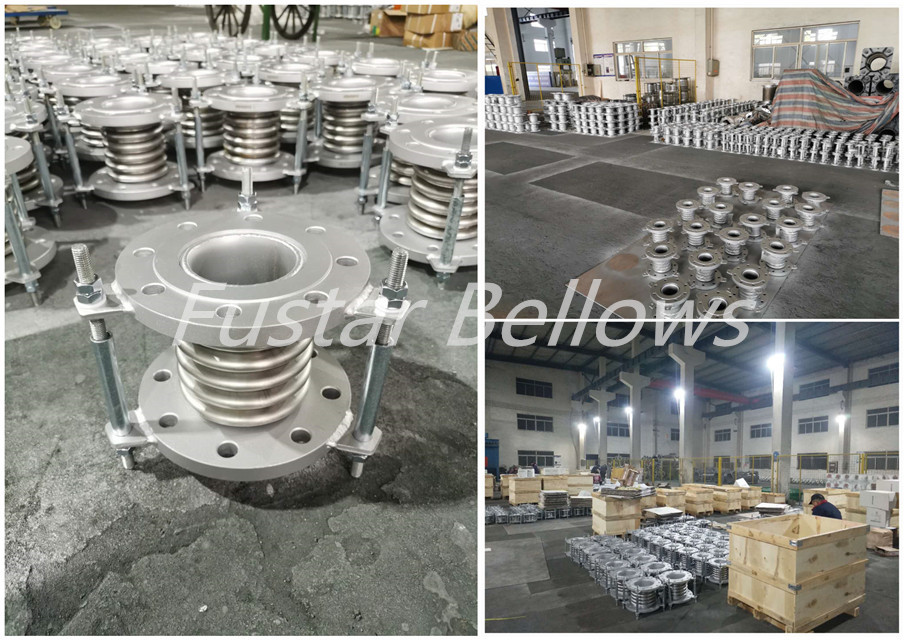

Photos Of 4in-170mm ANSI Flanged SS304 Expansion Joint In Working Shop
4in-170mm ANSI Flanged SS304 Expansion Joint
ANSI flanged bellow expansion joints are designed and manufactured in accordance with EJMA standard strictly.The basic expansion joints are made by attaching flanges,welding pipes to stainless steel bellows.ANSI flanged single bellow expansion joints are most commonly used for axial compression and extension but may also be designed for lateral offset and angular movement.We commonly utilize multi-ply metal bellows for the maximum cycle life.Inner sleeve,tie rods can be added to the flanged metal expansion joint to enhance the performance capabilities.
Drawing of ANSI Flange Expansion Joint
Items Of The SS304 4"-170MM Expansion Joint
1. ANSI 150# Flange: Q235B carbon steel
2. Bellow: SS304
3. Inner sleeve: SS304
4. Limited rod: Q235B carbon steel
5. Transport rod: Q235B carbon steel
6. Ear plate: Q235B carbon steel
7. Nut: Q235B carbon steel
Bellows Parameters
OD: 100mm
nxt: 0.5mm+0.6mm
q: 21mm
H: 18mm
N: 6
L1: 245mm
L2: 105mm
Flange Parameters
¢A:310mm
¢B:230mm
¢C:280mm
¢D:190.5mm
E-¢F:8-¢19
T: 23.8mm
Transport rod:3*M12
Photos Of 4in-170mm ANSI Flanged SS304 Expansion Joint In Working Shop
