DN80-275MM Welded Pipe SS304 Expansion Joint

Size : 3" -275mm
Working pressure: 1.0Mpa
Working temperature: 300℃
Fatigue life: >1000
Axial displacement: ±25
Axial stiffness: 93.6
Movement value: >25
Welding tube: ¢88.9X3.2
Price: $ 40
Availability:
Quantity:

  • DN80-275MM
  • Fustar
  • 83071000

DN80-275MM Welded Pipe SS304 Expansion Joint

       Metal SS304 expansion joint is consist of a flexible bellows element,appropriate end fittings such as butt-welded ends or flanges to allow connection to the adjacent piping or equipment,and other accessory items that may be required for a particular service application. All the materials expand and contract with thermal change.In the case of piping systems,this dimensional change can produce excessive stresses throughout the piping system and at fixed points such as vessels and rotating equipment,as well as within the piping itself.

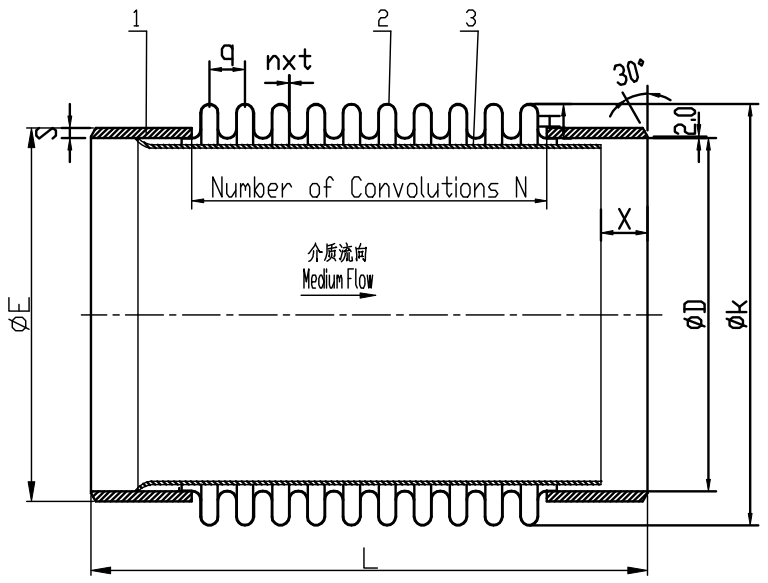

Drawing of DN80 SS304 Welding Expansion Joint

butt welded expansion joint drawing


DN80 Bellows Parameters

Size: 3" (DN80)

L : 275

D: 83

nxt : 0.4*2

q: 17

H: 15

N: 10

K: 113


Structure&Material of the DN80 Butt-weded SS304 Expansion Joint

1. Welding tube: SS304

2. Bellows: SS304

3. Inner sleeve: SS304

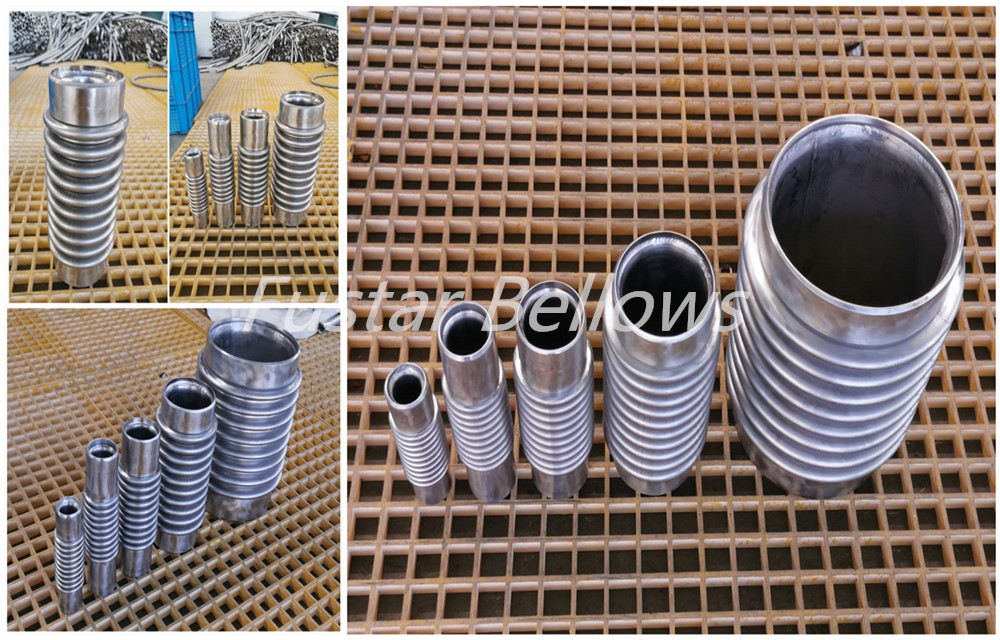

Photos of Welding Expansion Joint In Working Shop
