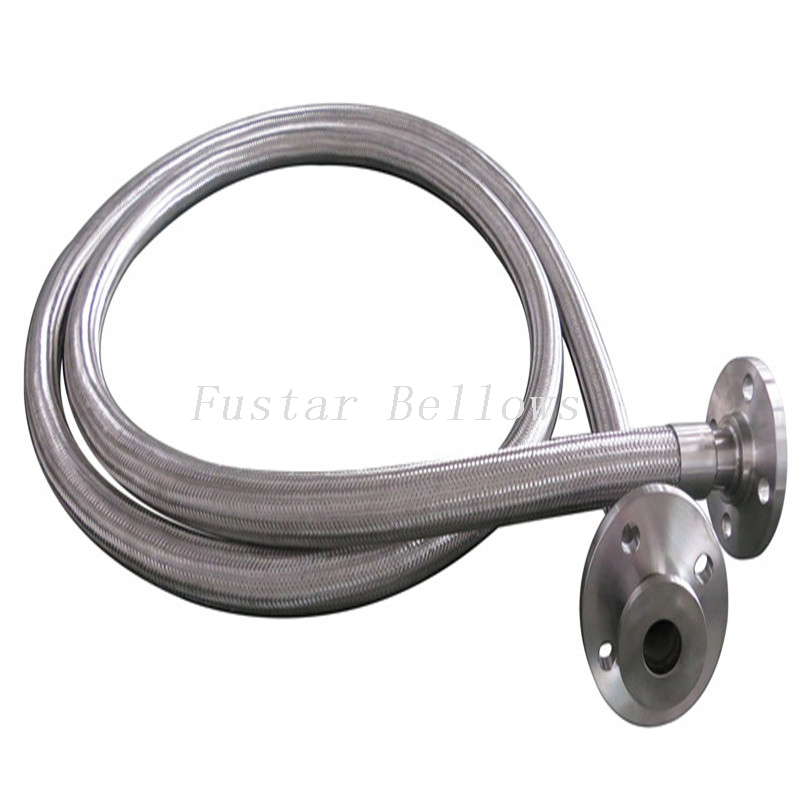

DN25-6000mm SS304 ANSI Flanged Flexible Metal Hose
The DN25 stainless steel SS304 flanged flexible metal hose is produced from SS304 corrugated bellows innercore reinforced with a stainless steel braid.Both the innercore and stainless steel SS304 braids are heliarc welded to the ANSI flanges in two ends. The stainless steel construction for excellent corrosion and diffusion resistance.

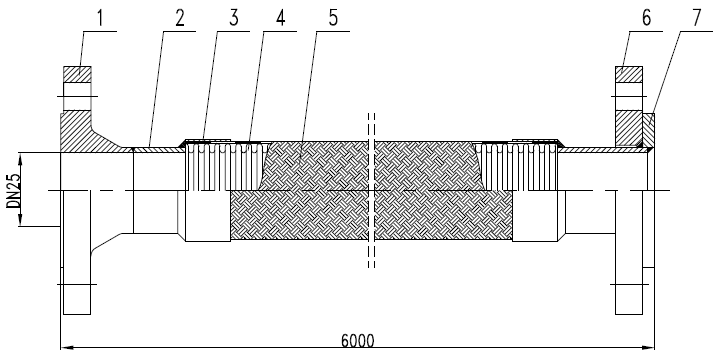

Drawing of DN25-6000mm SS304 ANSI Flanged Flexible Metal Hose
Construction and Specifications for DN25-6000mm Flexible Metal Hose
1 DN25 RF 150LBS flange,HG/T20615-2009, stainless steel SS304
2 Welding lap joint : stainless steel SS304
3 Ferrule: stainless steel SS304
4 Bellows: stainless steel SS304
5 Braids: stainless steel SS304
6 Loosen FF flange,HG/T20615-2009, stainless steel SS304
7 Plain welding ring,HG/T20615-2009, stainless steel SS304
Features
· Available in range of sizes from 6mm to 800mm normal diameter
· Super-flexible
· Chemical resistanct
· Stainless steel grade SS304,SS316L,SS321
· Standard flanges ends connection or custom made end fittings
· Comprehensive range of standard fittings materials including stainless steel,carbon steel
· Temperature range -160℃ to +800℃
· Technical support
Applications
·Chemical compatibility
·Temperature extremes
·Flexibility or vibration
·Fire safety
·Permeability concerns
·Achieving full vacuum

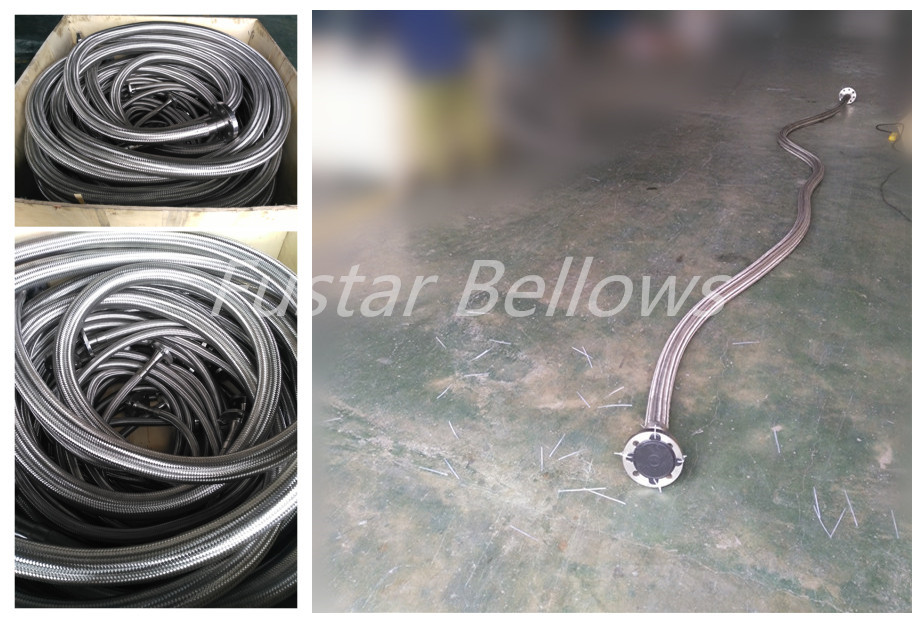

Photo Gallery
