Inconel 625 6"(DN150)-400mm Bellows Expansion Joint
The inconel 625 bellow expansion joint is applicated in the project in sea water, with superior corrosion resistance and temperature performance to stainless steel. Our inconel 625 bellow using edge welded technology are designed for applications that require excellent corrosion resistance properties and flexibility. The flanges are made of superior duplex stainless steel,and it also have high-effective corrosion resistance and temperature resistance.The inconel 625 stainless steel expansion joint also can be used in oil, gas ,smelt besides sea water.
General Description of Inconel 625 Expansion Joint
Bellow Expansion Joint 6"(400mm)
Super duplex SS,Inconel 625 bellow;
Flange:ANSI 150# ,ASTM A182 F53;
Cover:ASTM A240 UNS S32750 ;
Sealing brand: EPDM;
Pipe: ASTM A790 UNS S32750;
Angular rotation: 2 degree;
Design pressure: 10 bar;
Drawing of Inconel 625 Bellow Expansion Joint
Design Condition
1. Bellow design: EJMA
2. Installation position: Horizontal
3. Fluid medium(internal/external): Air/Seawater
4. Design pressure(internal/external): 10bar/2bar
5. Test pressure(internal): 15bar
6. Test procedure: Hydrostatic test
7. Design temperature(Max./Min.): 60℃/10℃
8. Axial spring rate: 134.3N/mm
9. Lateral spring rate: 535.5 N/mm
10. Angular spring rate: 16.2Nm/deg
Maximum design movements
1. Axial compression: +30mm
2. Axial extension: -30mm
3. Lateral :1.5mm
4. Design cycle life: 23,000
Production Photos of 6" Inconel 625 Expansion Joint
Inconel 625 6"(DN150)-400mm Bellows Expansion Joint
The inconel 625 bellow expansion joint is applicated in the project in sea water, with superior corrosion resistance and temperature performance to stainless steel. Our inconel 625 bellow using edge welded technology are designed for applications that require excellent corrosion resistance properties and flexibility. The flanges are made of superior duplex stainless steel,and it also have high-effective corrosion resistance and temperature resistance.The inconel 625 stainless steel expansion joint also can be used in oil, gas ,smelt besides sea water.
General Description of Inconel 625 Expansion Joint
Bellow Expansion Joint 6"(400mm)
Super duplex SS,Inconel 625 bellow;
Flange:ANSI 150# ,ASTM A182 F53;
Cover:ASTM A240 UNS S32750 ;
Sealing brand: EPDM;
Pipe: ASTM A790 UNS S32750;
Angular rotation: 2 degree;
Design pressure: 10 bar;
Drawing of Inconel 625 Bellow Expansion Joint
Design Condition
1. Bellow design: EJMA
2. Installation position: Horizontal
3. Fluid medium(internal/external): Air/Seawater
4. Design pressure(internal/external): 10bar/2bar
5. Test pressure(internal): 15bar
6. Test procedure: Hydrostatic test
7. Design temperature(Max./Min.): 60℃/10℃
8. Axial spring rate: 134.3N/mm
9. Lateral spring rate: 535.5 N/mm
10. Angular spring rate: 16.2Nm/deg
Maximum design movements
1. Axial compression: +30mm
2. Axial extension: -30mm
3. Lateral :1.5mm
4. Design cycle life: 23,000

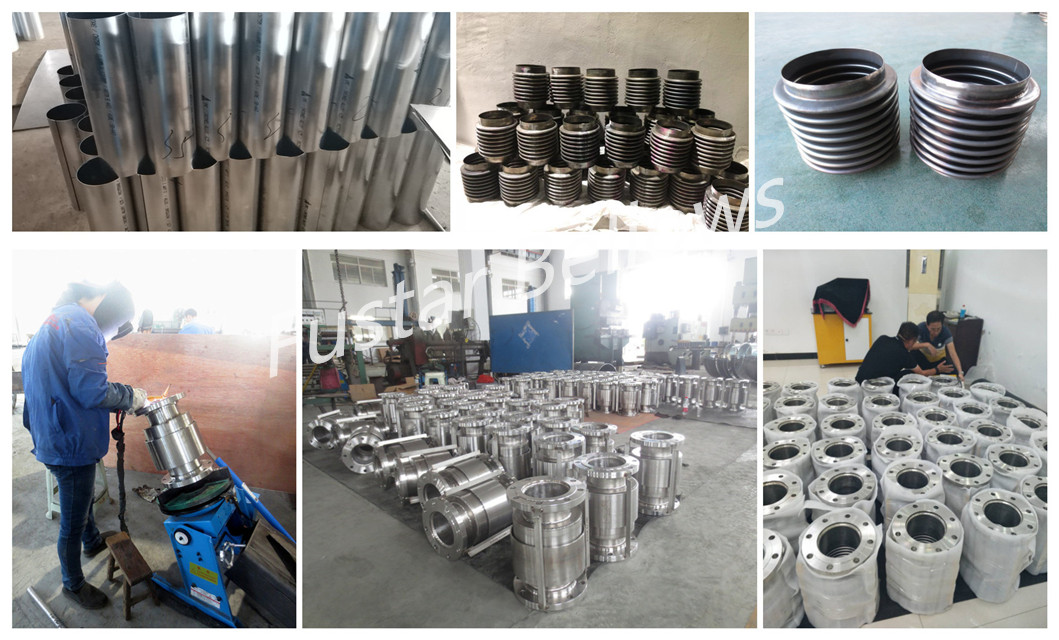

Production Photos of 6" Inconel 625 Expansion Joint
