DN1610-860MM
Fustar
83071000

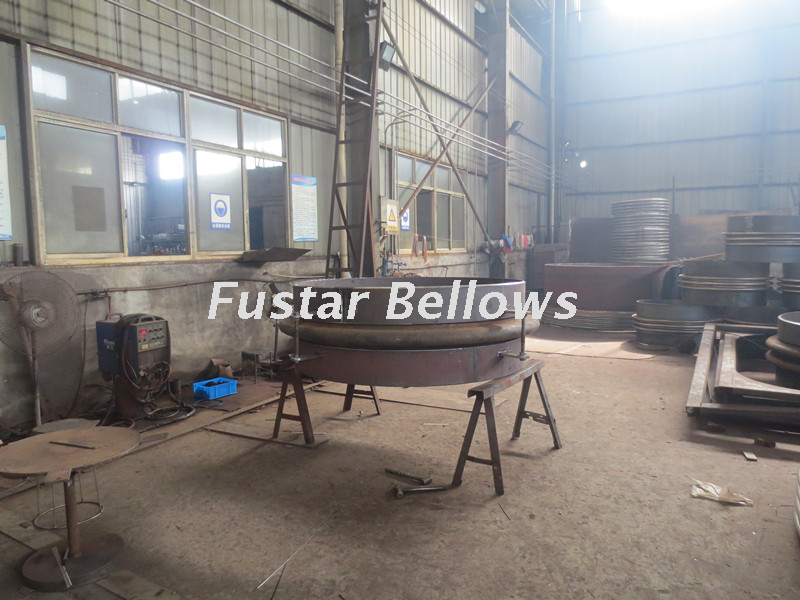

DN1610-860MM Q235B carbon steel bellow expansion joint
The pipeline is commonly composed of several parts and axial expansion joints which are installed along the pipeline according to expansion calculation. The carbon steel welding end expansion joints are designed to absorb lateral movments and other movements based on the calculations for different pipelines.The main part of carbon steel expansion joint is bellows,inner sleeve,tie rods,welding tube or flanges etc. The wall thickness of bellows, number of bellow plys and additional parts of expansion joints are designed according to movements,working temperature,pressure and medium in pipeline.

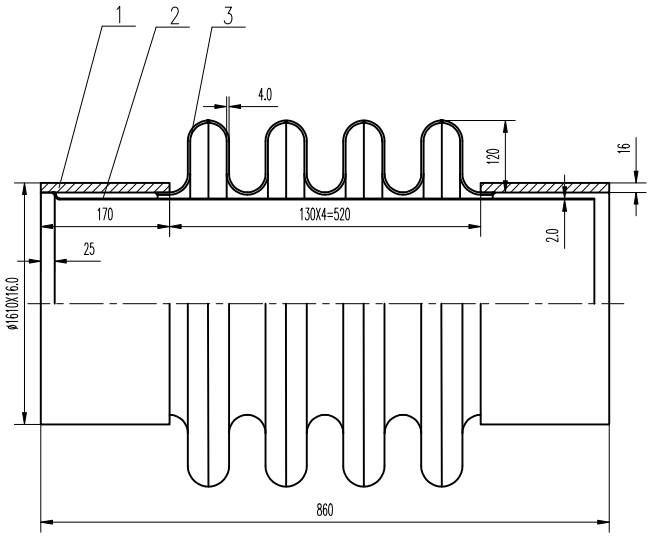

DN1610-860MM Welding Tube Drawing & Parameters
NO.S | ITEMS | MATERIALS |
1 | Welding Tube | Q235B carbon steel |
2 | Inner Sleeve | Q235B carbon steel |
3 | Bellows | Q235B carbon steel |
Technique Parameter
Normal Diameter | Length | Axial Movements | Axial Stiffness | Joint Size D X S | Radial Max. Size D1 | Working Pressure |
mm | mm | mm | N/mm | mm | mm | Mpa |
100 | 320~390 | 20~33 | 417~208 | Ø108X4 | 310 | 0.25~2.5 |
150 | 340~400 | 21~30 | 456~285 | Ø159X4.5 | 370 | 0.25~2.5 |
200 | 350~400 | 32~49 | 480~320 | Ø219X6 | 445 | 0.25~2.5 |
250 | 420~490 | 32~49 | 930~620 | Ø273X8 | 500 | 0.25~2.5 |
300 | 470~560 | 36~54 | 1253~835 | Ø325X8 | 550 | 0.25~2.5 |
350 | 500~610 | 40~60 | 1265~843 | Ø377X8 | 620 | 0.25~2.5 |
400 | 510~620 | 40~60 | 1373~915 | Ø426X10 | 700 | 0.25~2.5 |
500 | 530~630 | 43~65 | 2452~1635 | Ø426X10 | 850 | 0.25~2.5 |
600 | 580~760 | 47~70 | 1740~1160 | Ø529X10 | 1000 | 0.25~2.5 |
700 | 470~790 | 24~71 | 5944~1982 | Ø630X10 | 1110 | 0.25~2.5 |
800 | 480~590 | 24~97 | 6365~1591 | Ø720X12 | 1265 | 0.25~2.5 |
900 | 550~1050 | 27~96 | 5150~1288 | Ø820X12 | 1350 | 0.25~2.5 |
1000 | 550~1050 | 28~125 | 10075~2519 | Ø1020X12 | 1450 | 0.25~2.5 |
*They’re the regular sizes based on pressure of PN16 above, we can design and produce according to users’ detail required sizes and conditions.
Ordering
If you interested in this carbon steel butt-welded expansion joint, just contact our sales department and let us know the detail requirements of welding tube expansion joint or send us drawing,then we can design and quote accurately,we need the datas of detail requirements such as:
1. Diameter
2. Total length
3. Welding tube length and thickness
4. Movements/Convolution No.s
5. Materials of bellows and welding tubes
6. Working pressure & temperature
DN1610-860MM Q235B carbon steel bellow expansion joint
