24"-540mm SS304 Bellows Lined PTFE Expansion Joint

Stainless steel bellows lined PTFE expansion joint is composed of PTFE, stainless steel bellows and end fittings in two ends.It compesate for thermal deformation,mouting stress and vibrations.Widely used in chemical,food and pharmaceutical industry.
Price: $ 1900
Availability:
Quantity:

  • 24"(DN600)-540mm
  • Fustar
  • 73072900

SS304 Bellows Lined PTFE Expansion Joint

SS304 bellows lined PTFE expansion joints are the best option for each application that requires high resistance to chemicals and temperature,ease of cleaning and long service life. The PTFE lined expansion joint with PTFE sleeve to guide the fluid flow,internal PTFE vacuum support rings,special compensators with double-layer bellow with a draining system to enhance security of operation are available to order.

Fustar produce similar products like:steel expansion joints, stainless steel pipe expansion jointstainless steel metal expansion joints, stainless steel braided ptfe hose, ptfe lining stainless expansion joint, metallic bellow expansion joint, stainless steel compensator, carbon steel bellow expansion joint, PTFE lined expansion joint, ptfe bellow expansion joint.

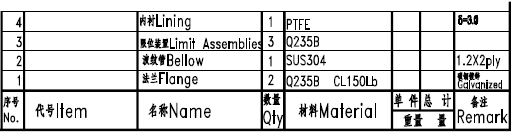

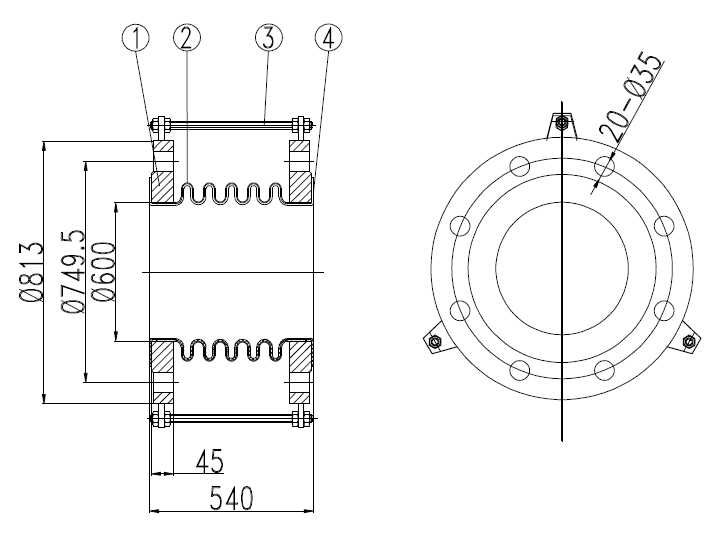

Drawing of 24"-540mm PTFE Expansion Joint

spec

ptfe expansion joint drawing


Design Conditions and Technical Parameters

Name: 24"-540mm SS304 Bellows Lined PTFE Expansion Joint

Normal Size: 24"(DN600)

Bellows: Stainless steel SS304

Thickness of bellows: 1.2mm*2 plys

Thickness of PTFE: 3mm

Flange: ANSI,150LBS

Flange material: carbon steel,galvanized

Design Pressure:1.6Mpa

Design Temperature: 80

Fatigue Life: 1000

Effective Area: 60

Axial Movement: 60mm

Lateral Movement: 3mm



Advantages

Compensate for axial,parallel and angular movement

 Vibration and sound absorption and insulation

 Electrical insulation

 Chemical resistance

 Resistance to vapour permeation

 High temperature resistant

 Anti-stick characteristic
