4"(DN100mm)-190mm ANSI150# flanged SS304 metal bellow PTFE Expansion Joint

SS304 metal bellow PTFE Expansion Joint is composed of PTFE, stainless steel bellows and end fittings in two ends.It compesate for thermal deformation,mouting stress and vibrations.Widely used in chemical,food and pharmaceutical industry.
Price: $ 310
Availability:
Quantity:

  • 4"(DN100mm)-190mm
  • Fustar
  • 73072900

4"-190mm ANSI flanged metal bellow PTFE Expansion Joint

Fustar mainly produce PTFE expansion joints,metal expansion joints,rubber expansion joints,fabric expansion joints, metal flexible hose,bellows etc since 1995.

For the ANSI flanged metal bellow PTFE Expansion Joint,the PTFE are made from the synthetic material Polytetrafluoroethylene,acting as a protective agent against corrosive substances.our PTFE expansion joints are specially to designed to protect pipes which come in contact with strong chemical materials.


Drawing of 4"-190mm ANSI150# flanged SS304 metal bellow PTFE Expansion Joint

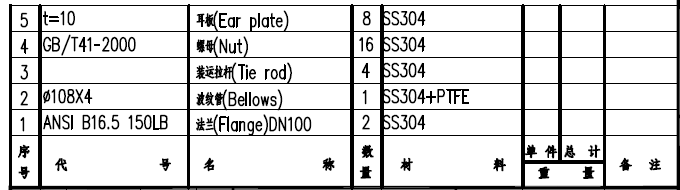

parameters

drawing of PTFE bellow expansion joint


Design Conditions and Technical Parameters

Name: 4"-190mm ANSI150# flanged SS304 metal bellow PTFE Expansion Joint

Normal Size: 4"(DN100mm)

Bellows: Stainless steel SS304 & PTFE

Flange: ANSI B16.5 150LBS, SS304

Tie rod/Ear plate/Nut : SS304

Design Pressure: 0.3Mpa

Design Temperature: 35

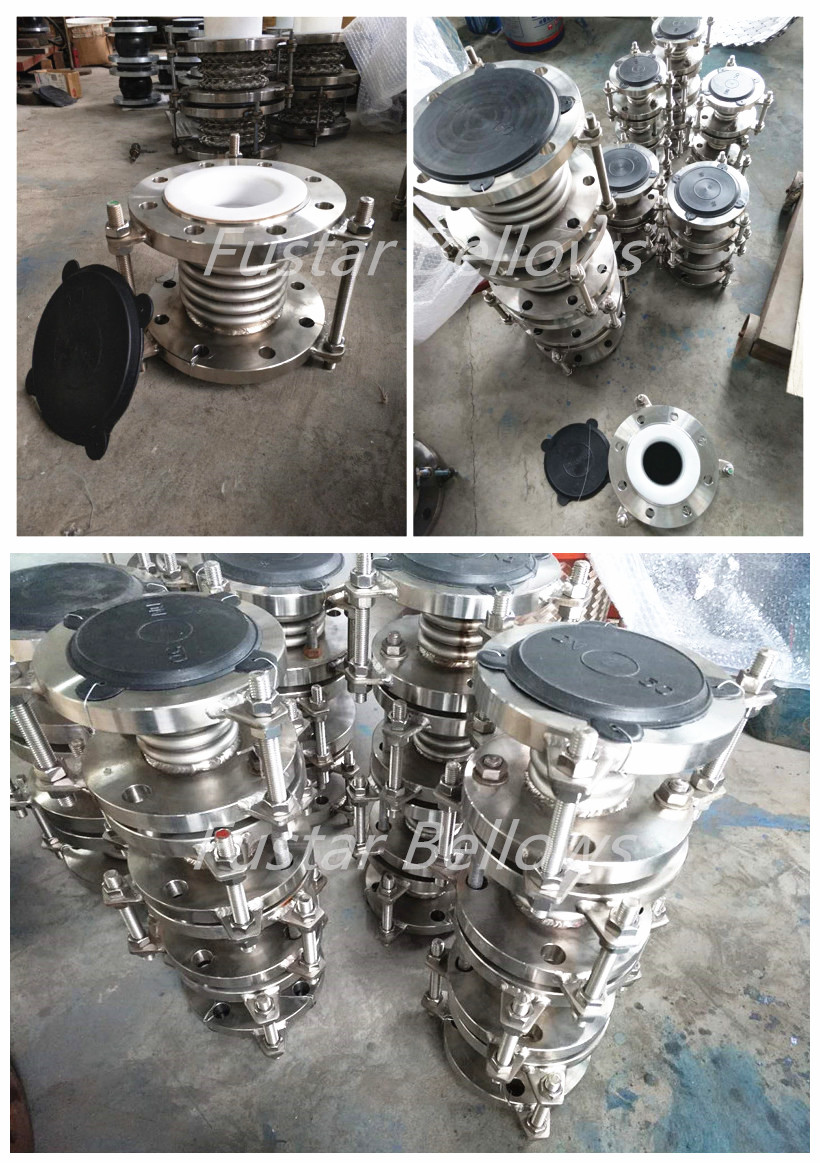

Finished Metal Bellow PTFE Expansion Joint

Finished PTFE bellows
