DN25~DN2000
Fustar
73072900
Steel Liner PTFE Expansion Joint

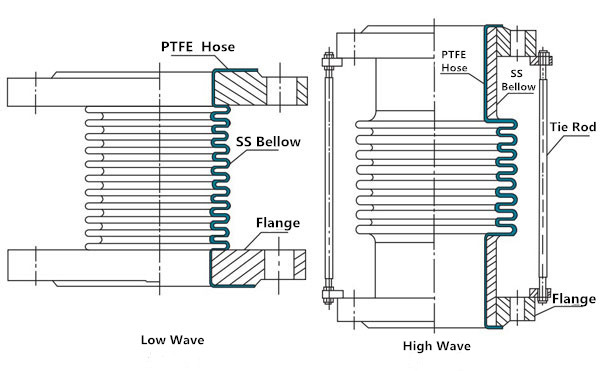

Steel Liner PTFE Expansion Joint | Structure Diagram |
Outer body is stainless steel metal bellows, inner PTFE. It can be resistant to various concentrations of acid, alkali, salt, and bear pressure of stainless steel compensator, not afraid of collision and so on. Marketing for DN25 ~ 2000MM, continuous fatigue life reach 5000 times. Pressure rating:. PN0.6Mpa, PN1.0Mpa, PN1.6Mpa .Operate temperature: ≤200 ℃. We produce similar products like:steel expansion joints, stainless steel pipe expansion joint, stainless steel metal expansion joints, stainless steel braided ptfe hose, ptfe lining stainless expansion joint, metallic bellow expansion joint, stainless steel compensator, carbon steel bellow expansion joint, PTFE lined expansion joint, ptfe bellow expansion joint
Technique Parameter
Spec DN mm | Three waves of the maximum compensate ability | Allow the largest work force | 3 waves length L mm | Connection flange size | ||||||||
Axial △X mm | Transverse △Y mm | Angular △θ | Internal pressure | Negative pressure | PN0.6Mpa | PN1.0Mpa | ||||||
02-1 | 02-2 | TF02-1 | TF02-2 | Kpa | K | n-M | K | n-M | ||||
25 | 12 | 8 | 10 | 20 | 0.6 | 0.7 | 57 | 65 | 75 | 4-M10 | 85 | 4-M12 |
32 | 14 | 12 | 16 | 20 | 0.6 | 0.7 | 52 | 70 | 90 | 4-M12 | 100 | 4-M16 |
40 | 17 | 14 | 18 | 20 | 0.55 | 0.6 | 47 | 75 | 100 | 4-M12 | 110 | 4-M16 |
50 | 20 | 17 | 22 | 20 | 0.55 | 0.6 | 43 | 82 | 110 | 4-M12 | 125 | 4-M16 |
65 | 22 | 20 | 26 | 20 | 0.55 | 0.6 | 38 | 88 | 130 | 4-M12 | 145 | 4-M16 |
80 | 24 | 24 | 32 | 20 | 0.5 | 0.6 | 33 | 92 | 150 | 4-M16 | 160 | 8-M16 |
100 | 26 | 25 | 33 | 20 | 0.5 | 0.6 | 28 | 95 | 170 | 4-M16 | 180 | 8-M16 |
124 | 29 | 25 | 33 | 20 | 0.4 | 0.5 | 24 | 105 | 200 | 8-M16 | 210 | 8-M16 |
150 | 32 | 20 | 26 | 20 | 0.4 | 0.5 | 18 | 115 | 225 | 8-M16 | 240 | 8-M20 |
200 | 40 | 20 | 26 | 20 | 0.35 | 0.4 | 17 | 125 | 280 | 8-M16 | 295 | 8-M20 |
250 | 42 | 20 | 27 | 15 | 0.3 | 0.35 | 14 | 135 | 335 | 12-M16 | 350 | 12-M20 |
300 | 44 | 20 | 27 | 15 | 0.3 | 0.35 | 13 | 145 | 395 | 12-M20 | 400 | 12-M20 |
350 | 46 | 20 | 27 | 15 | 0.2 | 0.25 | 13 | 150 | 445 | 12-M20 | 460 | |
400 | 46 | 20 | 27 | 15 | 0.1 | 0.1 | 11 | 160 | 495 | 16-M20 | 515 | 16-M22 |
450 | 48 | 12 | 16 | 15 | 0.1 | 0.1 | 11 | 180 | 550 | 16-M20 | 565 | 20-M22 |
500 | 48 | 12 | 16 | 15 | 0.08 | 0.1 | 11 | 200 | 600 | 20-M24 | 620 | 20-M27 |
600 | 49 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 220 | 705 | 24-M24 | 725 | 20-M27 |
700 | 50 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 240 | 810 | 24-M27 | ---- | ------ |
800 | 50 | 10 | 13 | 15 | 0.05 | 0.06 | 10 | 260 | 920 | 24-M27 | ---- | ------ |
900 | 50 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 280 | 1020 | 24-M27 | ---- | ------ |
1000 | 52 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 300 | 1120 | 28-M27 | ---- | ------ |
1200 | 52 | 8 | 10 | 15 | 0.03 | 0.035 | 7 | 320 | ---- | ------ | ---- | ------ |
1400 | 54 | 8 | 10 | 15 | 0.02 | 0.025 | 7 | 340 | ---- | ------ | ---- | ------ |
1600 | 54 | 8 | 10 | 15 | 0.01 | 0.01 | 7 | 360 | ---- | ------ | ---- | ------ |
Features
Non Ageing Properties
PTFE has a total resistance to ageing and moisture absorption and is unaffected by outdoor weathering—outlasting rubber and plastic hoses which are stiffer and heavier and often more costly which degrade by chemical attack, temperature and weather.
Alternative Designs
A full range of alternative options are available either as standard or to suit each individual application.
PTFE Lined Fittings
Intergrally lined by continuing the convoluted tube through the end fittings and flared over sealing faces – producing an uninterrupted, step free flow of media. Ideal for “bug free” hygienic non contaminate applications. This design eliminates corrosion of standard unlined end fittings by strong corrosive media.
Universal Usages
In all aspects of industry Wuxing can solve hose usages in a wide variety of applications providing answers to a multitude of fluid transfer problems.
Temperature Range
-100 to +200℃ depending on grade,pressure and application.
Non Contaminating
PTFE transmits to taste,colour or contaminates into media complying to all food , Dairy,Pharmaceutical criteria.
Fatigue Stability
Wuxing is extremely flexible,with tight,kink proof bend radii,means shorter hose to take up severe bends than other hoses,making Wuxing cost effective. When compared to metallic hose so often subject to flexible fatigue ,pinholing and chloride stress corrosion in steam and other application problems. Daming does not suffer from these symptoms.
Applications Include
Chemicals Acids Nuclear
Paint Solvents Marine
Pharmaceuticals Breweries Petrochemicals
Food Steel plants Textiles
Steam Pulp and Paper Automotive
Tanker Hoses Dyeing Plastic
Tar and Bitumen Cosmetics Rubber Process
Drinking Water Medical Biochemicals
Steel Liner PTFE Expansion Joint
Steel Liner PTFE Expansion Joint | Structure Diagram |
Outer body is stainless steel metal bellows, inner PTFE. It can be resistant to various concentrations of acid, alkali, salt, and bear pressure of stainless steel compensator, not afraid of collision and so on. Marketing for DN25 ~ 2000MM, continuous fatigue life reach 5000 times. Pressure rating:. PN0.6Mpa, PN1.0Mpa, PN1.6Mpa .Operate temperature: ≤200 ℃. We produce similar products like:steel expansion joints, stainless steel pipe expansion joint, stainless steel metal expansion joints, stainless steel braided ptfe hose, ptfe lining stainless expansion joint, metallic bellow expansion joint, stainless steel compensator, carbon steel bellow expansion joint, PTFE lined expansion joint, ptfe bellow expansion joint
Technique Parameter
Spec DN mm | Three waves of the maximum compensate ability | Allow the largest work force | 3 waves length L mm | Connection flange size | ||||||||
Axial △X mm | Transverse △Y mm | Angular △θ | Internal pressure | Negative pressure | PN0.6Mpa | PN1.0Mpa | ||||||
02-1 | 02-2 | TF02-1 | TF02-2 | Kpa | K | n-M | K | n-M | ||||
25 | 12 | 8 | 10 | 20 | 0.6 | 0.7 | 57 | 65 | 75 | 4-M10 | 85 | 4-M12 |
32 | 14 | 12 | 16 | 20 | 0.6 | 0.7 | 52 | 70 | 90 | 4-M12 | 100 | 4-M16 |
40 | 17 | 14 | 18 | 20 | 0.55 | 0.6 | 47 | 75 | 100 | 4-M12 | 110 | 4-M16 |
50 | 20 | 17 | 22 | 20 | 0.55 | 0.6 | 43 | 82 | 110 | 4-M12 | 125 | 4-M16 |
65 | 22 | 20 | 26 | 20 | 0.55 | 0.6 | 38 | 88 | 130 | 4-M12 | 145 | 4-M16 |
80 | 24 | 24 | 32 | 20 | 0.5 | 0.6 | 33 | 92 | 150 | 4-M16 | 160 | 8-M16 |
100 | 26 | 25 | 33 | 20 | 0.5 | 0.6 | 28 | 95 | 170 | 4-M16 | 180 | 8-M16 |
124 | 29 | 25 | 33 | 20 | 0.4 | 0.5 | 24 | 105 | 200 | 8-M16 | 210 | 8-M16 |
150 | 32 | 20 | 26 | 20 | 0.4 | 0.5 | 18 | 115 | 225 | 8-M16 | 240 | 8-M20 |
200 | 40 | 20 | 26 | 20 | 0.35 | 0.4 | 17 | 125 | 280 | 8-M16 | 295 | 8-M20 |
250 | 42 | 20 | 27 | 15 | 0.3 | 0.35 | 14 | 135 | 335 | 12-M16 | 350 | 12-M20 |
300 | 44 | 20 | 27 | 15 | 0.3 | 0.35 | 13 | 145 | 395 | 12-M20 | 400 | 12-M20 |
350 | 46 | 20 | 27 | 15 | 0.2 | 0.25 | 13 | 150 | 445 | 12-M20 | 460 | |
400 | 46 | 20 | 27 | 15 | 0.1 | 0.1 | 11 | 160 | 495 | 16-M20 | 515 | 16-M22 |
450 | 48 | 12 | 16 | 15 | 0.1 | 0.1 | 11 | 180 | 550 | 16-M20 | 565 | 20-M22 |
500 | 48 | 12 | 16 | 15 | 0.08 | 0.1 | 11 | 200 | 600 | 20-M24 | 620 | 20-M27 |
600 | 49 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 220 | 705 | 24-M24 | 725 | 20-M27 |
700 | 50 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 240 | 810 | 24-M27 | ---- | ------ |
800 | 50 | 10 | 13 | 15 | 0.05 | 0.06 | 10 | 260 | 920 | 24-M27 | ---- | ------ |
900 | 50 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 280 | 1020 | 24-M27 | ---- | ------ |
1000 | 52 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 300 | 1120 | 28-M27 | ---- | ------ |
1200 | 52 | 8 | 10 | 15 | 0.03 | 0.035 | 7 | 320 | ---- | ------ | ---- | ------ |
1400 | 54 | 8 | 10 | 15 | 0.02 | 0.025 | 7 | 340 | ---- | ------ | ---- | ------ |
1600 | 54 | 8 | 10 | 15 | 0.01 | 0.01 | 7 | 360 | ---- | ------ | ---- | ------ |
Features
Non Ageing Properties
PTFE has a total resistance to ageing and moisture absorption and is unaffected by outdoor weathering—outlasting rubber and plastic hoses which are stiffer and heavier and often more costly which degrade by chemical attack, temperature and weather.
Alternative Designs
A full range of alternative options are available either as standard or to suit each individual application.
PTFE Lined Fittings
Intergrally lined by continuing the convoluted tube through the end fittings and flared over sealing faces – producing an uninterrupted, step free flow of media. Ideal for “bug free” hygienic non contaminate applications. This design eliminates corrosion of standard unlined end fittings by strong corrosive media.
Universal Usages
In all aspects of industry Wuxing can solve hose usages in a wide variety of applications providing answers to a multitude of fluid transfer problems.
Temperature Range
-100 to +200℃ depending on grade,pressure and application.
Non Contaminating
PTFE transmits to taste,colour or contaminates into media complying to all food , Dairy,Pharmaceutical criteria.
Fatigue Stability
Wuxing is extremely flexible,with tight,kink proof bend radii,means shorter hose to take up severe bends than other hoses,making Wuxing cost effective. When compared to metallic hose so often subject to flexible fatigue ,pinholing and chloride stress corrosion in steam and other application problems. Daming does not suffer from these symptoms.
Applications Include
Chemicals Acids Nuclear
Paint Solvents Marine
Pharmaceuticals Breweries Petrochemicals
Food Steel plants Textiles
Steam Pulp and Paper Automotive
Tanker Hoses Dyeing Plastic
Tar and Bitumen Cosmetics Rubber Process
Drinking Water Medical Biochemicals
