Untied Expansion Joint

Views: 18     Author: Site Editor     Publish Time: 2017-04-10      Origin: Site

Untied Expansion Joint Designs

Untied Expansion Joints

Most Common Types:

Axial Expansion Joints

Double Expansion Joint

Internally Guided Expansion joint

Untied Universal Expansion Joints

Pressure Balanced Expansion Joint



Features :

Single or dual bellows with installation fittings only

Commonly used for low pressure service

Simple design= less expensive

All degrees of freedom(axial, lateral, angular)

Incur pressure thrust onto pipe

Anchors affected by bellows spring rate and pressure thrust=higher force



Basic Expansion Joint Designs

Untied=Pressure Thrust

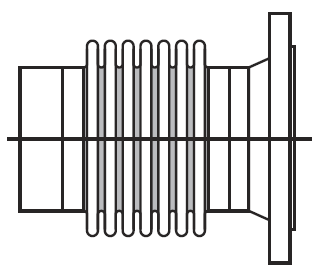

Single (axial)

Expansion Joint

            axial lateral angular movments.png

               Axial ,lateral & angular movements

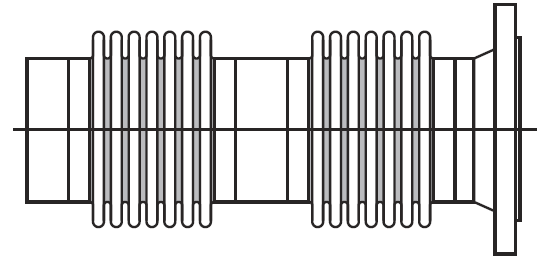

Universal(untied)

Expansion Joint



large movements.png

                Large axial , lateral & (angular)movements
