4”--200mm
Fustar
73072900
4"--200mm Braided PTFE Expansion Joint
SS304 stainless steel braided PTFE expansion joint provide compensation of vibrations and heat-induced expansion in the production line.PTFE bellows are constructed from uniform-walled isostatically molded PTFE and demonstrate a high level of design consistency throughout the production line,and the PTFE bellow convolutions allow the maximum absorption of movement. The SS304 stainless steel wire braid can be one ply,two ply as working pressure needed,to enhance the pressure bearing capacity.
Technical Specification
Diameter: 4"(DN100mm)
Total length: 200mm
Bellows: PTFE
Braids: Stainless steel SS304
Flange:JIS 10K,carbon steel, galvanized
Working Pressure:8 bar
Working Temperature:100℃
Production Standard: GB/T12777-2008

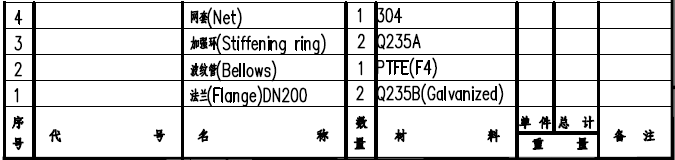

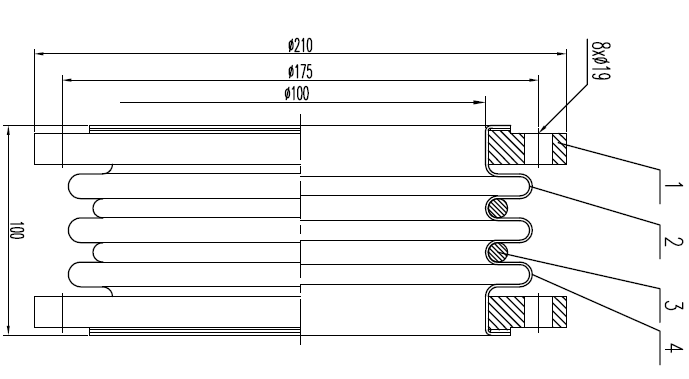

Drawing of 4"--200mm Braided PTFE Expansion Joint
Features of PTFE Expansion Joints
• PTFE Properties: corrosion resistance, can withstand all the Strong acid (except the molten alkali metal, fluoride media and sodium hydroxide >300 ℃), strong oxidizing agents, reducing agents and various organic solvents effect;
• Incombustible: limiting oxygen index <90;
• Application: used to eliminate pipe or containers stretching or displacement caused by climate change or other reasons; or used as a snubber installed in the import and export of pump or other high frequency machinery to reduce or eliminate vibration;
• Insulation Resistance;
• Self Lubrication: has the minimal friction coefficient in plastics, is an ideal oil-free lubricating materials;
• The surface is not sticky;
• High and low temperature resistance: working temperature can be -100~220℃.
• Superior performance: good corrosion resistance, less business costs;
• Resistance to atmospheric aging, radiation resistance and low permeability: surface and performance remain unchanged even long-term exposed in the air.
Applications
The PTFE bellow expansion joint is widely used in chemical industry,pharmaceuticals industry,waste disposal and treatment companies,explosion-protected areas and so on.
4"--200mm Braided PTFE Expansion Joint
SS304 stainless steel braided PTFE expansion joint provide compensation of vibrations and heat-induced expansion in the production line.PTFE bellows are constructed from uniform-walled isostatically molded PTFE and demonstrate a high level of design consistency throughout the production line,and the PTFE bellow convolutions allow the maximum absorption of movement. The SS304 stainless steel wire braid can be one ply,two ply as working pressure needed,to enhance the pressure bearing capacity.
Technical Specification
Diameter: 4"(DN100mm)
Total length: 200mm
Bellows: PTFE
Braids: Stainless steel SS304
Flange:JIS 10K,carbon steel, galvanized
Working Pressure:8 bar
Working Temperature:100℃
Production Standard: GB/T12777-2008
Drawing of 4"--200mm Braided PTFE Expansion Joint
Features of PTFE Expansion Joints
• PTFE Properties: corrosion resistance, can withstand all the Strong acid (except the molten alkali metal, fluoride media and sodium hydroxide >300 ℃), strong oxidizing agents, reducing agents and various organic solvents effect;
• Incombustible: limiting oxygen index <90;
• Application: used to eliminate pipe or containers stretching or displacement caused by climate change or other reasons; or used as a snubber installed in the import and export of pump or other high frequency machinery to reduce or eliminate vibration;
• Insulation Resistance;
• Self Lubrication: has the minimal friction coefficient in plastics, is an ideal oil-free lubricating materials;
• The surface is not sticky;
• High and low temperature resistance: working temperature can be -100~220℃.
• Superior performance: good corrosion resistance, less business costs;
• Resistance to atmospheric aging, radiation resistance and low permeability: surface and performance remain unchanged even long-term exposed in the air.
Applications
The PTFE bellow expansion joint is widely used in chemical industry,pharmaceuticals industry,waste disposal and treatment companies,explosion-protected areas and so on.
