2"-170mm DIN PN16 Flanged SS304 Expansion Joint
The SS304 flanged expansion joint is used to compensate for pipeline movement,vibration and to react at predetermind pressures and forces, application in water, air , oil etc. The flange standard can be DIN, ANSI, BS, JIS, GB or design as the detail sizes(non-standard).Flange materials can be carbon steel,SS304,SS316L,SS321 as clients' different requirement. The material used for the construction of expansion joints well depends upon the temperature and corrosion resistance. The bellow expansion joints is design to withstandard temperature to 600℃ and pressure up to 40bar, so they are successfully not only in comparatively simple applications but also in sophisticated areas such as nuclear fusion,aircraft service ducts.

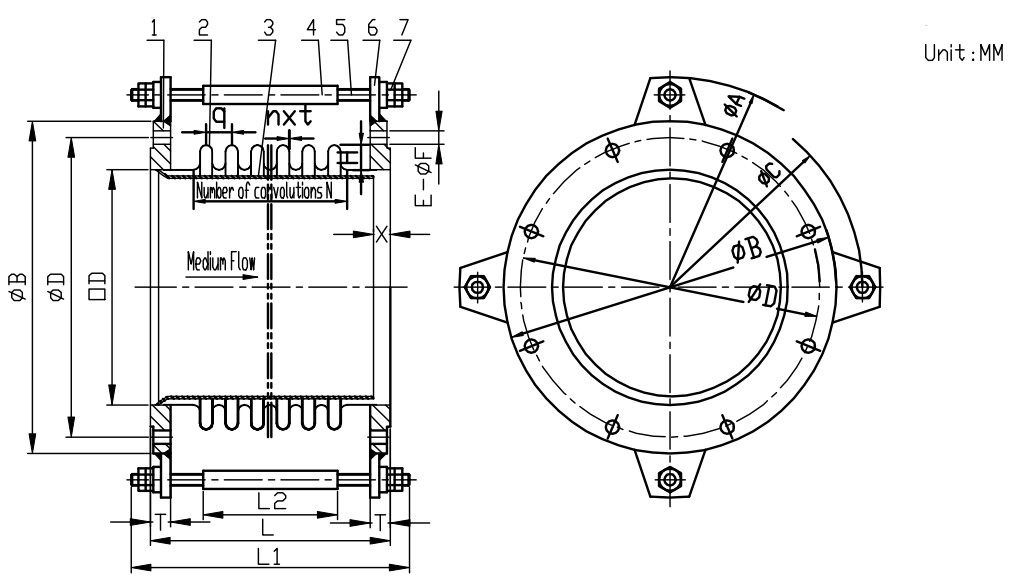

Drawing of DIN Flanged SS304 Expansion Joint
Items Of The SS304 2"-170MM Expansion Joint
1. German standard DIN PN16 Flange: Q235B carbon steel
2. Bellow: SS304
3. Inner sleeve: SS304
4. Limited rod: Q235B carbon steel
5. Transport rod: Q235B carbon steel
6. Ear plate: Q235B carbon steel
7. Nut: Q235B carbon steel
Bellows Parameters
OD: 50mm
nxt: 0.4mm*2
q: 12mm
H: 9mm
N: 8
L1: 245mm
L2: 120mm
Flange Parameters
¢A:245mm
¢B:165mm
¢C:215mm
¢D:125mm
E-¢F:4-¢18
T: 16mm
Transport rod:3*M12
2"-170mm DIN Flanged SS304 Expansion Joint Package and Delievery In 40HQ Container
2"-170mm DIN PN16 Flanged SS304 Expansion Joint
The SS304 flanged expansion joint is used to compensate for pipeline movement,vibration and to react at predetermind pressures and forces, application in water, air , oil etc. The flange standard can be DIN, ANSI, BS, JIS, GB or design as the detail sizes(non-standard).Flange materials can be carbon steel,SS304,SS316L,SS321 as clients' different requirement. The material used for the construction of expansion joints well depends upon the temperature and corrosion resistance. The bellow expansion joints is design to withstandard temperature to 600℃ and pressure up to 40bar, so they are successfully not only in comparatively simple applications but also in sophisticated areas such as nuclear fusion,aircraft service ducts.
Drawing of DIN Flanged SS304 Expansion Joint
Items Of The SS304 2"-170MM Expansion Joint
1. German standard DIN PN16 Flange: Q235B carbon steel
2. Bellow: SS304
3. Inner sleeve: SS304
4. Limited rod: Q235B carbon steel
5. Transport rod: Q235B carbon steel
6. Ear plate: Q235B carbon steel
7. Nut: Q235B carbon steel
Bellows Parameters
OD: 50mm
nxt: 0.4mm*2
q: 12mm
H: 9mm
N: 8
L1: 245mm
L2: 120mm
Flange Parameters
¢A:245mm
¢B:165mm
¢C:215mm
¢D:125mm
E-¢F:4-¢18
T: 16mm
Transport rod:3*M12
2"-170mm DIN Flanged SS304 Expansion Joint Package and Delievery In 40HQ Container
