Angular Gimbal Expansion Joint

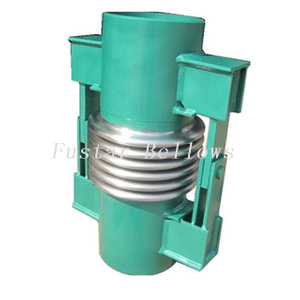

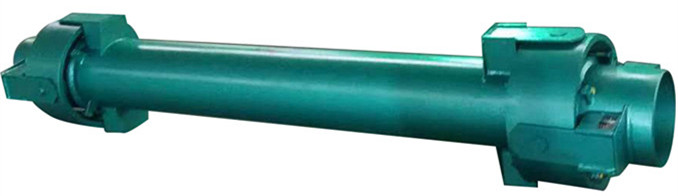

Angular gimbal expansion joint is composed of two universal expansion joints with long middle welded tube, which can absorb lateral deflection displacement in any direction. The hinge shafts can withstand internal pressure thrust.

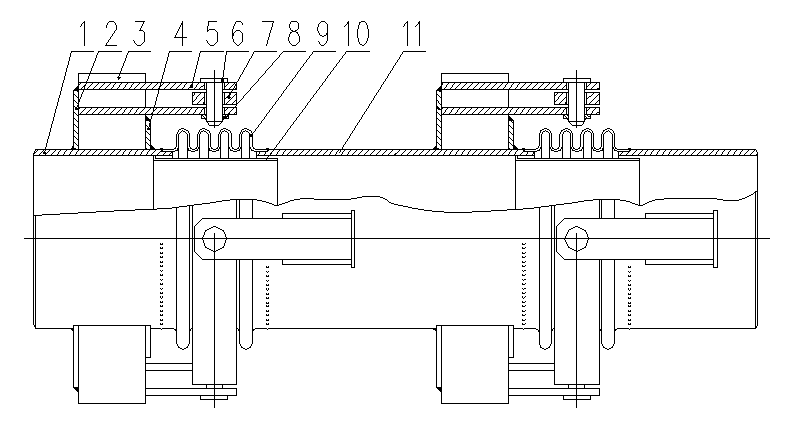

Angular Gimbal Expansion Joint | Drawing |
NO | ITEMS | MATERIALS |
| ITEMS | MATERIALS |
1 | Connection tube | Carbon steel | 7 | Universal ring | Carbon steel |
2 | Outer saddle plate | Carbon steel | 8 | Shield ring | Carbon steel |
3 | Riser | Carbon steel | 9 | Bellow | SS304/SS316L/SS321 |
4 | Inner saddle plate | Carbon steel | 10 | Inner sleeve | SS304/Carbon steel |
5&6 | Hinge plate/Pin roll | Carbon steel | 11 | Middle connection tube | Carbon steel |
Technique Parameter
Normal Diameter | Length | Angular Displacement | Angular Stiffness | Joint Size D X S | Radial Max. Size D1 | Working Pressure |
mm | mm | mm | N/mm | mm | mm | Mpa |
100 | 540 | ±69~12 | 12 | Ø108X4 | 250~410 | 0.25~2.5 |
150 | 720 | ±4~12 | 61 | Ø159X4.5 | 330~460 | 0.25~2.5 |
200 | 760 | ±8~12 | 83 | Ø219X6 | 400~560 | 0.25~2.5 |
250 | 820 | ±7.8~12 | 131 | Ø273X8 | 480~710 | 0.25~2.5 |
300 | 900 | ±7.5~12 | 244 | Ø325X8 | 540~810 | 0.25~2.5 |
350 | 1030 | ±7.5~12 | 310 | Ø377X8 | 451~900 | 0.25~2.5 |
400 | 1030 | ±6.9~11 | 406 | Ø426X10 | 660~980 | 0.25~2.5 |
500 | 1100 | ±4.5~9 | 939 | Ø529X10 | 800~1280 | 0.25~2.5 |
600 | 1260 | ±4.5~8 | 2072 | Ø630X10 | 930~1350 | 0.25~2.5 |
700 | 1260 | ±3.9~6 | 3108 | Ø720X12 | 1030~1400 | 0.25~2.5 |
800 | 1260 | ±3.6~6 | 3863 | Ø820X12 | 1130~1500 | 0.25~2.5 |
900 | 1340 | ±3.6~6 | 4040 | Ø920X12 | 1250~1730 | 0.25~2.5 |
1000 | 1000 | ±2.4~6 | 12705 | Ø1020X12 | 1370~2000 | 0.25~2.5 |
1100 | 1280 | ±2.4~6 | 14292 | Ø1120X12 | 1510~2200 | 0.25~2.5 |
1200 | 1520 | ±3~6 | 11936 | Ø1220X12 | 1620~2400 | 0.25~2.5 |
* They’re the regular sizes above, we can design and produce according to users’ detail required sizes and conditions.
Feature of Angular Gimbal Expansion Joint
· Angular gimbal expansion joints can absorb any angular deflections by angular variation caused by thermal expansion or compression on the axis direction in ducts or containers.
· Anguar gimal expansion joints mainly used in complex ducts system to meet the angular deflection requirement, such as “L”, “Z” and “U” pipe system.
· Double angular gimbal expansion joints are designed applying in “Z” duct system to meet the angular deflection effected by thermal expansion. Prestretching of the expansion joints can provide much more compensate ability.
Angular Gimbal Expansion Joint
Angular gimbal expansion joint is composed of two universal expansion joints with long middle welded tube, which can absorb lateral deflection displacement in any direction. The hinge shafts can withstand internal pressure thrust.
Angular Gimbal Expansion Joint | Drawing |
NO | ITEMS | MATERIALS |
| ITEMS | MATERIALS |
1 | Connection tube | Carbon steel | 7 | Universal ring | Carbon steel |
2 | Outer saddle plate | Carbon steel | 8 | Shield ring | Carbon steel |
3 | Riser | Carbon steel | 9 | Bellow | SS304/SS316L/SS321 |
4 | Inner saddle plate | Carbon steel | 10 | Inner sleeve | SS304/Carbon steel |
5&6 | Hinge plate/Pin roll | Carbon steel | 11 | Middle connection tube | Carbon steel |
Technique Parameter
Normal Diameter | Length | Angular Displacement | Angular Stiffness | Joint Size D X S | Radial Max. Size D1 | Working Pressure |
mm | mm | mm | N/mm | mm | mm | Mpa |
100 | 540 | ±69~12 | 12 | Ø108X4 | 250~410 | 0.25~2.5 |
150 | 720 | ±4~12 | 61 | Ø159X4.5 | 330~460 | 0.25~2.5 |
200 | 760 | ±8~12 | 83 | Ø219X6 | 400~560 | 0.25~2.5 |
250 | 820 | ±7.8~12 | 131 | Ø273X8 | 480~710 | 0.25~2.5 |
300 | 900 | ±7.5~12 | 244 | Ø325X8 | 540~810 | 0.25~2.5 |
350 | 1030 | ±7.5~12 | 310 | Ø377X8 | 451~900 | 0.25~2.5 |
400 | 1030 | ±6.9~11 | 406 | Ø426X10 | 660~980 | 0.25~2.5 |
500 | 1100 | ±4.5~9 | 939 | Ø529X10 | 800~1280 | 0.25~2.5 |
600 | 1260 | ±4.5~8 | 2072 | Ø630X10 | 930~1350 | 0.25~2.5 |
700 | 1260 | ±3.9~6 | 3108 | Ø720X12 | 1030~1400 | 0.25~2.5 |
800 | 1260 | ±3.6~6 | 3863 | Ø820X12 | 1130~1500 | 0.25~2.5 |
900 | 1340 | ±3.6~6 | 4040 | Ø920X12 | 1250~1730 | 0.25~2.5 |
1000 | 1000 | ±2.4~6 | 12705 | Ø1020X12 | 1370~2000 | 0.25~2.5 |
1100 | 1280 | ±2.4~6 | 14292 | Ø1120X12 | 1510~2200 | 0.25~2.5 |
1200 | 1520 | ±3~6 | 11936 | Ø1220X12 | 1620~2400 | 0.25~2.5 |
* They’re the regular sizes above, we can design and produce according to users’ detail required sizes and conditions.
Feature of Angular Gimbal Expansion Joint
· Angular gimbal expansion joints can absorb any angular deflections by angular variation caused by thermal expansion or compression on the axis direction in ducts or containers.
· Anguar gimal expansion joints mainly used in complex ducts system to meet the angular deflection requirement, such as “L”, “Z” and “U” pipe system.
· Double angular gimbal expansion joints are designed applying in “Z” duct system to meet the angular deflection effected by thermal expansion. Prestretching of the expansion joints can provide much more compensate ability.
