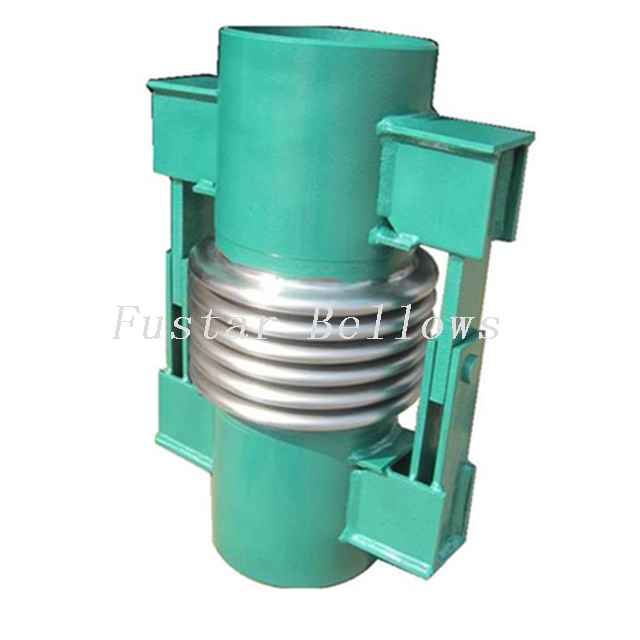

Angular Hinged Expansion Joint
This angular hinged expansion joint consists of welded pipe, bellows, and a pair of hinges connected to the welded pipe. It can absorb the angular displacement of single plane only.It should be used when combined with two or three angular expansion joints during absorption displacement.The angular hinged expansion joint has the ability to withstand the thrust of internal pressure.

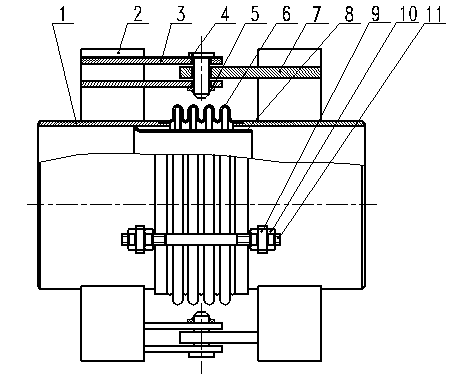

Angular Hinged Expansion Joints | Structure Diagram |
NO | ITEMS | MATERIALS |
| ITEMS | MATERIALS |
1 | Connection tube | Carbon steel | 6 | Bellow | SS304/SS316L/SS321 |
2 | Riser | Carbon steel | 7 | Main pull plate | Carbon steel |
3 | Pull plate | Carbon steel | 8 | Inner sleeve | SS304/Carbon steel |
4 | Pin roll | Carbon steel | 9/10 | Ear Plate/Nut | Carbon steel |
5 | Shield ring | Carbon steel | 11 | Stud | Carbon steel |
Technique Parameter
Normal Diameter | Length | Angular Displacement | Angular Stiffness | Joint Size D X S | Radial Max. Size D1 | Working Pressure |
mm | mm | mm | N/mm | mm | mm | Mpa |
100 | 540 | ±69~12 | 12 | Ø108X4 | 250~410 | 0.25~2.5 |
150 | 720 | ±4~12 | 61 | Ø159X4.5 | 330~460 | 0.25~2.5 |
200 | 760 | ±8~12 | 83 | Ø219X6 | 400~560 | 0.25~2.5 |
250 | 820 | ±7.8~12 | 131 | Ø273X8 | 480~710 | 0.25~2.5 |
300 | 900 | ±7.5~12 | 244 | Ø325X8 | 540~810 | 0.25~2.5 |
350 | 1030 | ±7.5~12 | 310 | Ø377X8 | 451~900 | 0.25~2.5 |
400 | 1030 | ±6.9~11 | 406 | Ø426X10 | 660~980 | 0.25~2.5 |
500 | 1100 | ±4.5~9 | 939 | Ø529X10 | 800~1280 | 0.25~2.5 |
600 | 1260 | ±4.5~8 | 2072 | Ø630X10 | 930~1350 | 0.25~2.5 |
700 | 1260 | ±3.9~6 | 3108 | Ø720X12 | 1030~1400 | 0.25~2.5 |
800 | 1260 | ±3.6~6 | 3863 | Ø820X12 | 1130~1500 | 0.25~2.5 |
900 | 1340 | ±3.6~6 | 4040 | Ø920X12 | 1250~1730 | 0.25~2.5 |
1000 | 1000 | ±2.4~6 | 12705 | Ø1020X12 | 1370~2000 | 0.25~2.5 |
1100 | 1280 | ±2.4~6 | 14292 | Ø1120X12 | 1510~2200 | 0.25~2.5 |
1200 | 1520 | ±3~6 | 11936 | Ø1220X12 | 1620~2400 | 0.25~2.5 |
* They’re the regular sizes above, we can design and produce according to users’ detail required sizes and conditions.
Construction Options of Angular Hinged Expansion Joint
· 50mm - 3000mm CN inclusive
· Length to suit
· Multiply convoluted membranes
· Bellows Technology stainless steel expansion joints can be supplied with flanged,weld-end or slotted terminations in line with our customers' requirements
· Material combinations can include stainless steels,carbon steels and high alloy
· Internal flow sleeves and liners
· Fixed or swivel flanges
· External protective shrouds
· Specialist flange coatings
· Non Destructive Testing
