Specification of annular flexible metal hose pipe

Views: 7     Author: Site Editor     Publish Time: 2017-06-18      Origin: Site

Specification of flexible metal hose pipe

Annular flexible metal hose pipe

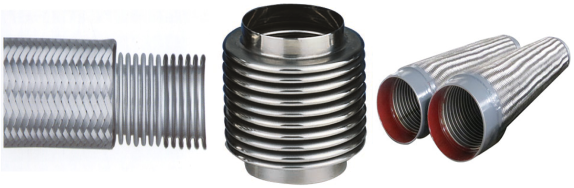

flexible metal hose pipes.png

12≤DN≤800

Description

The corrugated flexible metal hose pipe is made of stainless steel strip by the unit, automatic cutting, rolling,TIG welding, corrugated froming.H Type corrugated flexible body with a continuous circleline waveform, good softness.Difficult to produce torsional stress,applied in sport occasions and long life requirements of the occasion.

Material: 321,304,316,316 L SS Stainless Steel



Technique Parameter

Nominal Diameter

DN

InternalDiameterI.D

Outer   Diameter

 O.D (mm)

Minimum

Bend Radius

R.(mm)

Nominal pressure

PN (MPa)

mm

(in)

(mm)

Bellows

One layer   braid

Static

Dynamic

1 LayerBraid

2 Laye

Braids

3 Laye

Braids

12

1/2

12

18

21

40

130

10

12

25

15

5/8

15

21.5

24.5

70

190

10

12

25

18

11/16

18

25

28

90

205

8

12

25

20

3/4

20

28

33

175

400

7.5

12

25

25

1

24.4

32.5

35

225

510

6.3

10

15

32

11/4

32

41

45

280

640

4.0

6.3

10

40

11/2

39.6

51

55

350

800

2.5

4.0

6.3

50

2

49.7

62

66

390

845

2.5

4.0

6.3

65

21/2

64.8

78.5

82

480

1000

2.5

4.0

6.3

80

3

74.7

98

102

600

1200

2.5

4.0

5.0

100

4

96.5

120

125

750

1500

2.5

4.0

5.0

125

5

124.7

152

157

900

1800

2.0

2.5

4.0

150

6

149.4

182

187

1000

2000

1.6

2.5

4.0

200

8

199.4

236

243

1250

2500

1.6

2.5

4.0

250

10

248

292

297

1250

2500

1.6

2.5

, 4.0

300

12

298

348

353

1500

3000

1.6

2.0

2.5

350

14

347.6

398

403

1750

3500

1.0

2.0

2.5

400

16

398

448

453

2000

4000

1.0

1.6

2.5

450

18

448

498

503

2250

4500

1.0

1.6

2.5

500

20

498

548

553

2500

5000

1.0

1.6

2.5

600

24

598

648

653

3000

6000

0.6

1.0

1.6

700

28

698

748

753

3500

7000

0.6

1.0

1.6

800

32

798

848

853

4000

8000

0.6

1.0

1.6

If there is no special statement, the bellows is made of 304SS Stainles steel
If not make out working pressure ,according to 0.6MPa design
