Specification of spiral flexible metal hose pipe

Views: 3     Author: Site Editor     Publish Time: 2017-06-13      Origin: Site

Specification of spiral flexible metal hose pipe

Spiral flexible metal hose pipe

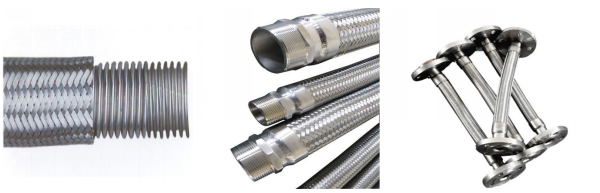

flexible metal hose pipe.png

6≤DN≤63.5

Description

The corrugated flexible metal hose pipe is made of stainless steel strip by the unit, automatic cutting, rolling, TIG welding, corrugated froming, all the processes are finished in one production line.

Spiral corrugated flexible body has a continuous spiral waveform, not need butt welding. Used for static and small amount of exercise occasions.

Material: 321,304 , 316,316 L SS Stainless Steel



Technique Parameter

Nominal Diameter

DN

InternalDiameterI.D

Outer Diameter
  O.D (mm)

Minimum

Bend  Radius

R.(mm)

Nominal Pressure

PN (MPa)

mm

(in)

(mm)

Bellows

One layer braid

Static

Dynamic

1 Layer Braid

2 Layer Braids

3 Layer   Braids

6

1/4

6

10.4

11.6

50

110

23

32

/

8

5/16

8

11.1

13.1

65

145

23

32

/

10

3/8

10.9

15

17

80

180

23

32

/

12

1/2

12

18.4

20.4

95

215

23

32

/

15

5/8

15.5

21.5

23.5

120

270

21

25

/

20

3/4

20

25

27

160

360

16

25

32

25

1

25

32.5

34.5

175

400

10

15

25

32

11/4

31

41

43

225

510

6.3

10

15

40

11/2

40

50

52.5

280

640

4.0

6.3

10

50

2

50

62

64.5

350

800

2.5

4.0

6.3

65

21/2

62

75

77.5

390

845

2.5

4.0

6.3

If there is no special statement, the bellows is made of 304SS Stainles steel
If not make out working pressure ,according to 0.6MPa design
