Tied Expansion Joint

Views: 2     Author: Site Editor     Publish Time: 2017-04-17      Origin: Site

Tied Expansion Joint Designs

Tied Expansioin Joints



Most Common Types:

Hinged Expansion Joints

In-line pressure Balance Expansion Joint

Gimbaled Expansion Joints

Tied Single & Universal Expansion Joints



Features:

Single or dual bellows with restraining hardware

Typically used for high pressure service

More complex=higher cost for expansion joint

Limited degrees of freedom

Pressure thrust restrained by hardware

Anchors only affected by bellows spring rate=low force



Expansion Joints Made using a Single or Multiple Bellows

Tied = NO Pressure Thrust



Single-Hinged Expansion Joint

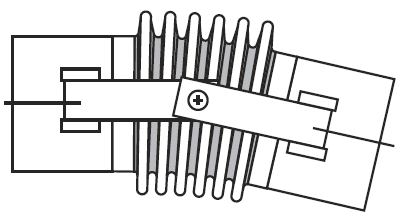

angular rotation in one plane.png





Angular rotation in one plane






Double –Hinged Expansion Joint

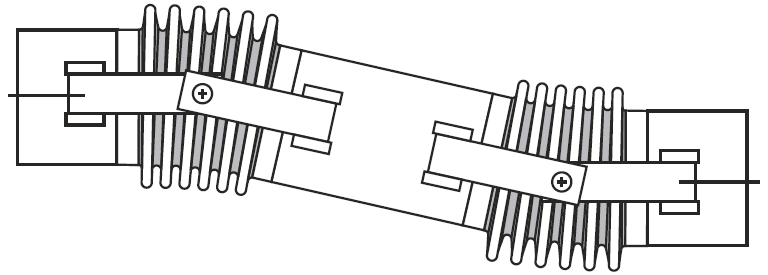

lateral movement in one plane.png                                            Lateral movement in one plane





* Option for slotted hinged joints
