Availability: | |
---|---|
Quantity: | |
DN40
Fustar
83071000
Size DN15(1/2”)- DN150(16”)

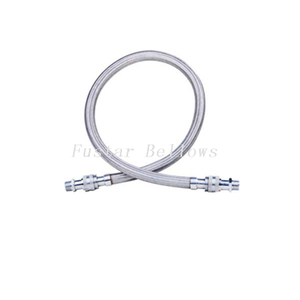

SS Quick Coupling Flexible Metal Bellow Hose designed and manufactured in accordance with GB/T14525-2010 standards to meet all types of applications. You can rest assured to use our quick coupling flexible metal hose. From 10mm NB up to 400mm NB in multiple layers and thicknesses. Our quick coupling metal bellow hose have different specifications. The temperature range that our quick coupling flexible metal hoses can be applicable is very wide.
The SS quick coupling flexible metal hose is characterized by rapid disassembly, which two-way open and close type quick couplers possession of automatic opening and closing single valve, when the SS quick coupling metal hose is removed, it can prevent the liquid flowing from the inside pipe. The quick coupling flexible metal hose can be used handily.
Specification
Normal Diameter :DN15~DN150
Bellow thickness :0.28mm~1.2mm
Available Pressure : PN≤2.5Mpa
Available Temperature : -196℃ ~ +600℃
Medium: oil,water,gas, chemical ,oxygen and so on
Materials : Bellows,braids----Stainless steel SS304,SS316,SS321
Quick couplings----Stainless steel , carbon steel
Recommend length: 300,400,500,600,1000mm,2000mm
Common used size : ¢15, ¢20, ¢25, ¢32, ¢50, ¢65, ¢80, ¢100, ¢125, ¢150
Quick Coupling Connector Hose Features
· Simple structure, easy operation, fast loading and unloading
· Compact size, has a good seal and interchange ability
· Used for gas, liquid, silty and other media input and output
· Pressure: ≤2.5Mpa
· Material: Stainless steel, carbon steel

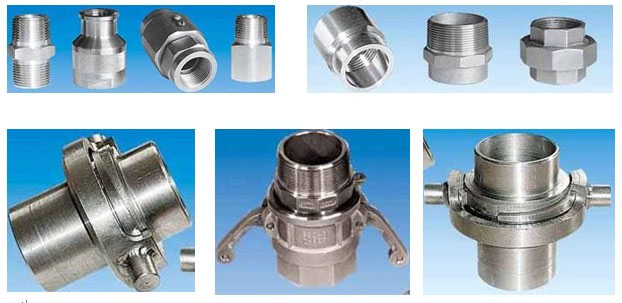

Quick Coupling Type
Quick Coupling Flexible Metal Hose Function And Application
· Communication Function: pneumatic, hydraulic tools, cylinders, hydraulic cylinders, metal mould,
relevant mechanical equipment.
· Protection function: computer cooling equipment,cylinder protection of die-casting machine.
· Check function: vacuum, pressure, leakage, and other works of the inspection.
· Transport function: bolts, nuts and other solids transport, conductive and transfer function.
· Fill function: inert gas, nitrogen, PG, carbonic acid.
· Coupling function: fishing rods, portable CD fasteners, mobile connection and fluid transport.
Size DN15(1/2”)- DN150(16”)
SS Quick Coupling Flexible Metal Bellow Hose designed and manufactured in accordance with GB/T14525-2010 standards to meet all types of applications. You can rest assured to use our quick coupling flexible metal hose. From 10mm NB up to 400mm NB in multiple layers and thicknesses. Our quick coupling metal bellow hose have different specifications. The temperature range that our quick coupling flexible metal hoses can be applicable is very wide.
The SS quick coupling flexible metal hose is characterized by rapid disassembly, which two-way open and close type quick couplers possession of automatic opening and closing single valve, when the SS quick coupling metal hose is removed, it can prevent the liquid flowing from the inside pipe. The quick coupling flexible metal hose can be used handily.
Specification
Normal Diameter :DN15~DN150
Bellow thickness :0.28mm~1.2mm
Available Pressure : PN≤2.5Mpa
Available Temperature : -196℃ ~ +600℃
Medium: oil,water,gas, chemical ,oxygen and so on
Materials : Bellows,braids----Stainless steel SS304,SS316,SS321
Quick couplings----Stainless steel , carbon steel
Recommend length: 300,400,500,600,1000mm,2000mm
Common used size : ¢15, ¢20, ¢25, ¢32, ¢50, ¢65, ¢80, ¢100, ¢125, ¢150
Quick Coupling Connector Hose Features
· Simple structure, easy operation, fast loading and unloading
· Compact size, has a good seal and interchange ability
· Used for gas, liquid, silty and other media input and output
· Pressure: ≤2.5Mpa
· Material: Stainless steel, carbon steel
Quick Coupling Type
Quick Coupling Flexible Metal Hose Function And Application
· Communication Function: pneumatic, hydraulic tools, cylinders, hydraulic cylinders, metal mould,
relevant mechanical equipment.
· Protection function: computer cooling equipment,cylinder protection of die-casting machine.
· Check function: vacuum, pressure, leakage, and other works of the inspection.
· Transport function: bolts, nuts and other solids transport, conductive and transfer function.
· Fill function: inert gas, nitrogen, PG, carbonic acid.
· Coupling function: fishing rods, portable CD fasteners, mobile connection and fluid transport.
