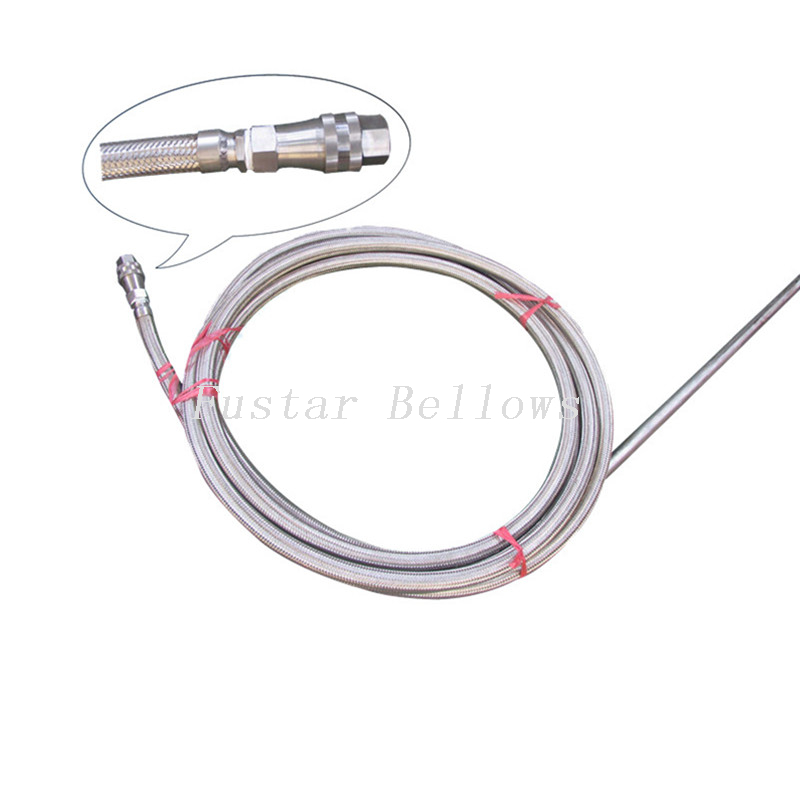

Stainless self-sealing quick coupling flexible metal hose pipe
This self-sealing(quick release)coupling flexible metal hose pipe works on simple'Push&Pull Principle'.The adaptor when pushed into the coupler is securely held by the self locking arrangements resulting in a positive and leak proof connection. This action simultaneously opens the valve and fluid flow starts.To disconnect,pull back the sleeve of the coupler , the adaptor ejects out and the valve shuts off automatically.Valves are provided in GSV and GDV type.

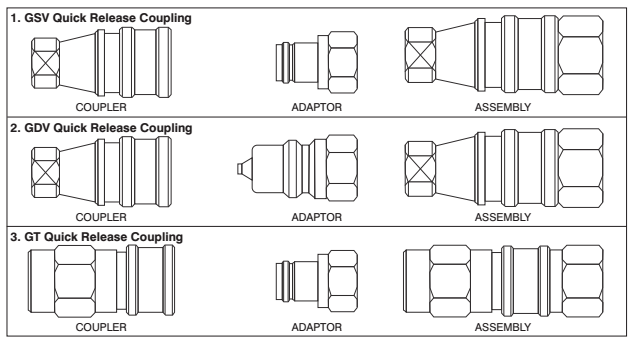

Types
GSV: Quick coupling with self sealing valve at the coupler end and through type adaptor.
GDV: Quick coupling with self sealing valve at coupler & adaptor ends.
GT: Quick coupling through type.
End Connection
Socket weld, hose thread,hose shank,pipe thread and flanged.
Size: 1/8" to 2"
Pressure: Upto 100Mpa.
Temperature: -25℃ to 250℃ with right selection of body& materials.
Advantages
Fast positive, leak proof,instant connection,without tools,without threading or twisting,without strain,without sweat,hence time saving.
Materials
Body : SS304,SS316,SS316L,mild steel,carbon steel duly hardened,brass,aluminium.
Spring: Spring steel,SS304,SS316,SS316L.
Ball: SS304,SS316,SS316L.
Seal Material: Nitrile,neoprene,viton,silicon,PTFE.
Standard: ISO 16028 for high pressure coupling
Note-If required for high pressure,high temperature or corrosive services,we can also offer quick couplings in various exotic materials & seals like inconel 625,monel,aluminium bronze,etc.
Quick Coupling Flexible Metal Hose Pipe Features
· Simple structure, easy operation, fast loading and unloading
· Compact size, has a good seal and interchange ability
· Used for gas, liquid, silty and other media input and output
· Pressure: ≤2.5Mpa
· Material: Stainless steel, carbon steel
Quick Coupling Metal Hose Pipe Function And Application
· Communication Function: pneumatic, hydraulic tools, cylinders, hydraulic cylinders, metal mould,
relevant mechanical equipment.
· Protection function: computer cooling equipment,cylinder protection of die-casting machine.
· Check function: vacuum, pressure, leakage, and other works of the inspection.
· Transport function: bolts, nuts and other solids transport, conductive and transfer function.
· Fill function: inert gas, nitrogen, PG, carbonic acid.
· Coupling function: fishing rods, portable CD fasteners, mobile connection and fluid transport.
Stainless self-sealing quick coupling flexible metal hose pipe
This self-sealing(quick release)coupling flexible metal hose pipe works on simple'Push&Pull Principle'.The adaptor when pushed into the coupler is securely held by the self locking arrangements resulting in a positive and leak proof connection. This action simultaneously opens the valve and fluid flow starts.To disconnect,pull back the sleeve of the coupler , the adaptor ejects out and the valve shuts off automatically.Valves are provided in GSV and GDV type.
Types
GSV: Quick coupling with self sealing valve at the coupler end and through type adaptor.
GDV: Quick coupling with self sealing valve at coupler & adaptor ends.
GT: Quick coupling through type.
End Connection
Socket weld, hose thread,hose shank,pipe thread and flanged.
Size: 1/8" to 2"
Pressure: Upto 100Mpa.
Temperature: -25℃ to 250℃ with right selection of body& materials.
Advantages
Fast positive, leak proof,instant connection,without tools,without threading or twisting,without strain,without sweat,hence time saving.
Materials
Body : SS304,SS316,SS316L,mild steel,carbon steel duly hardened,brass,aluminium.
Spring: Spring steel,SS304,SS316,SS316L.
Ball: SS304,SS316,SS316L.
Seal Material: Nitrile,neoprene,viton,silicon,PTFE.
Standard: ISO 16028 for high pressure coupling
Note-If required for high pressure,high temperature or corrosive services,we can also offer quick couplings in various exotic materials & seals like inconel 625,monel,aluminium bronze,etc.
Quick Coupling Flexible Metal Hose Pipe Features
· Simple structure, easy operation, fast loading and unloading
· Compact size, has a good seal and interchange ability
· Used for gas, liquid, silty and other media input and output
· Pressure: ≤2.5Mpa
· Material: Stainless steel, carbon steel
Quick Coupling Metal Hose Pipe Function And Application
· Communication Function: pneumatic, hydraulic tools, cylinders, hydraulic cylinders, metal mould,
relevant mechanical equipment.
· Protection function: computer cooling equipment,cylinder protection of die-casting machine.
· Check function: vacuum, pressure, leakage, and other works of the inspection.
· Transport function: bolts, nuts and other solids transport, conductive and transfer function.
· Fill function: inert gas, nitrogen, PG, carbonic acid.
· Coupling function: fishing rods, portable CD fasteners, mobile connection and fluid transport.
