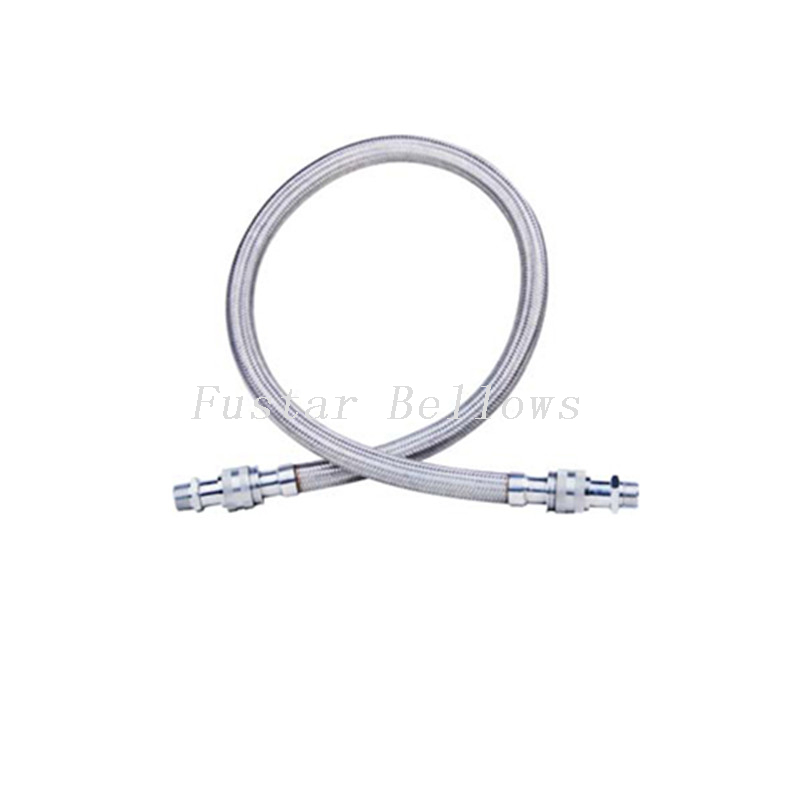

Low price stainless steel clamp type quick coupling metal flexible hose

Low pressure couplings for applications with low pressure can be swaged with ferrules or assembled with hose clamps.As a further customer sevice,Fustar can also offer pre-assembled hoses with couplings.
Quick couplings: brass aluminium,stainless steel,steel and polypropylene.
Inner bellow: stainless steel
Braids: stainless steel
Availability:
Quantity:
  • DN20
  • Fustar
  • 83071000

Stainless steel clamp type quick coupling metal flexible hose
The principle behind the design of clamp type quick coupling metal flexible hose is simple.Pivot pins for coupler cam arms which lock into the adaptor groove are located so that when line pressure attempts to force the camlock coupler and adapto apart,the bottom edge of the adapator groove pushes with equal pressure against the under edge of the cam arms , increasing the locking action. When properly coupled, line pressure will not separate a clamp connection within recommended pressure limits.

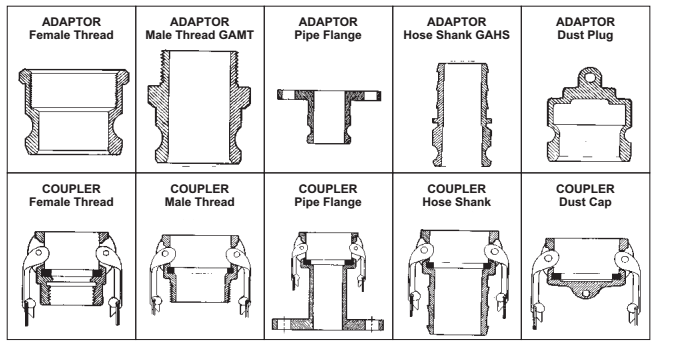

camlock coupling.png

End Connection: Socket Weld,Hose thread,Pipe thread,Hose shank and Flanged.

                            Sizes: 1/2"(12mm) to 6"(150mm)

                            Woking Pressure: Upto 25bar

Temperature:The quick coupling can handle fluids from -40℃ to 250℃ with right selection of body material and Gasket.


Materials :

Body :(1)Available in SS304,SS316L,aluminium,carbon steel,brass,polypropyline,super duplex SS,inconel and other exotic materials as                    per clients requirements.

           (2)Available in SS304&SS316L,casting of carbon steel grade,aluminium bronze grade etc.

           (3)Available with PTFE lining.

Cam Arms: Available in casting of SS304,SS316,SS316L,aluminium bronze.

Gasket: Available in nitrile,viton,neoprene,silicon,hypalon,PTFE or as per client's requirement.


Stainless Steel Quick Coupling Metal Flexible Hose Features
 ·  Simple structure, easy operation, fast loading and unloading
 ·  Compact size, has a good seal and interchange ability
 ·  Used for gas, liquid, silty and other media input and output
 ·  Pressure: ≤2.5Mpa
 ·  Material: Stainless steel, carbon steel

Clamp Coupling Hose Function And Application
·  Communication Function: pneumatic, hydraulic tools, cylinders, hydraulic cylinders, metal mould,
   relevant mechanical equipment.

·  Protection function: computer cooling equipment,cylinder protection of die-casting machine.
·  Check function: vacuum, pressure, leakage, and other works of the inspection.
·  Transport function: bolts, nuts and other solids transport, conductive and transfer function.
·  Fill function: inert gas, nitrogen, PG, carbonic acid.
·  Coupling function: fishing rods, portable CD fasteners, mobile connection and fluid transport.
