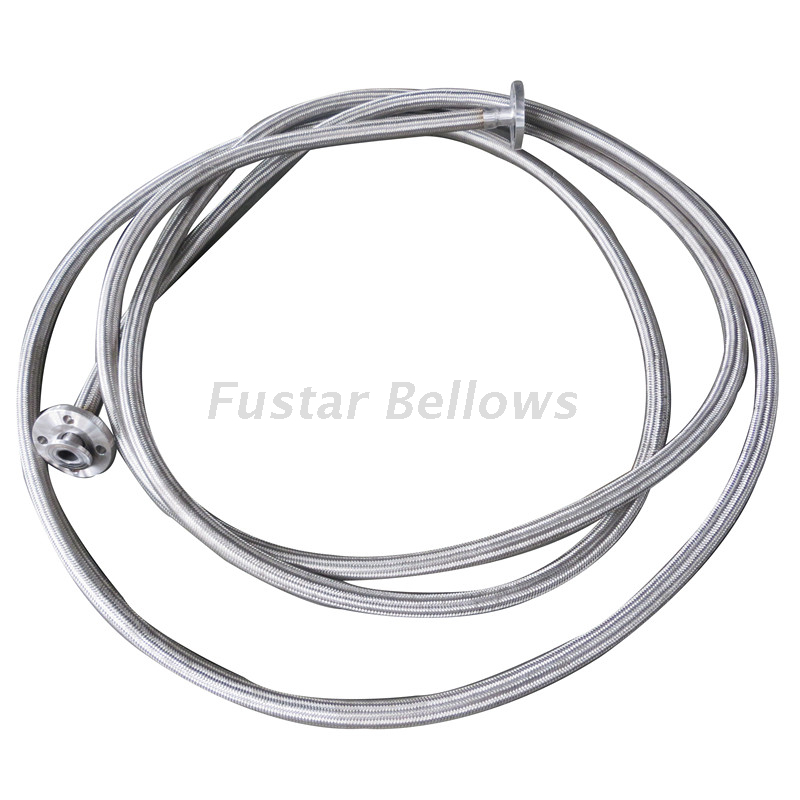

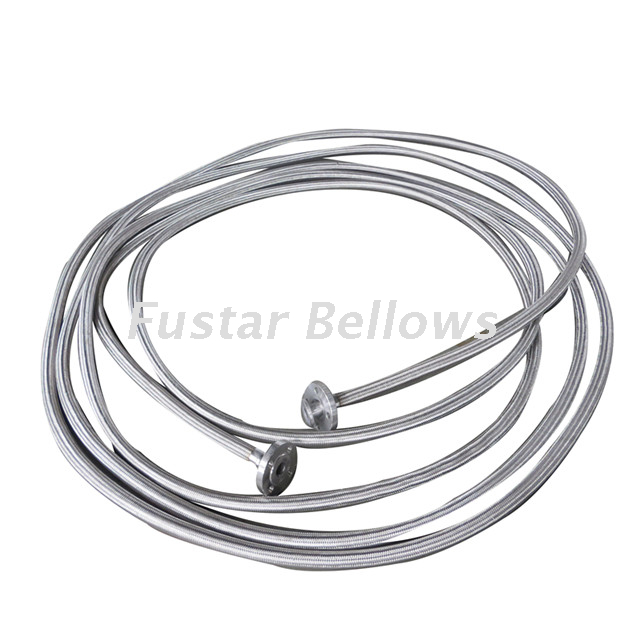

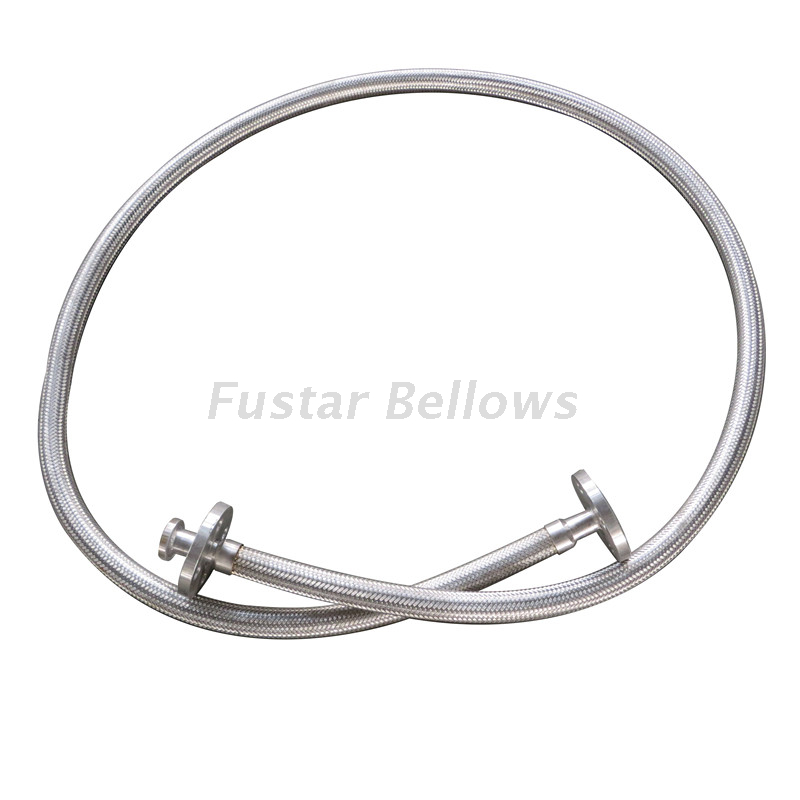

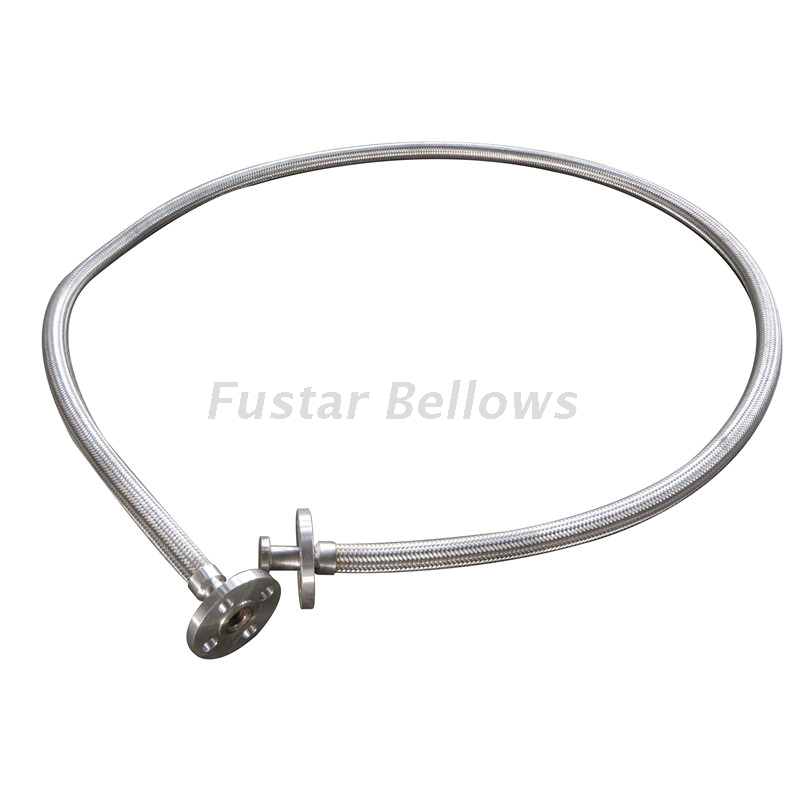

DN10 high pressure stainless steel DIN PN16 braided flexible metal hose
The DN10 high pressure stainless steel flexible metal hose is made of very thin-walled seamless or welded stainless steel tube which undergoes precise plastic processing. The stainless steel flexible metal hose is very durable. This metal hose has very good flexibility and elasticity because of waveform of the braided flexible metal hose pipe, making it very easy to absorb deformation of the cyclic loading caused by displacement, particularly in the piping system, the high pressure flexible metal hose has the ability to compensate for a large amount of displacement.
DIN PN16 braided flexible metal hoses are being used for connection where there is a high temperature and high pressure in the system. The main part of the stainless steel flexible hose is made of austenitic stainless steel so the braided flexible metal hose has good heat resistance. Depends on flow media, pressure, connection type and amount of movement. The number of convolution, wires and braiding is selected. In addition to the above, the high pressure stainless steel DIN PN16 braided flexible metal hose still has a lot of other features. The quality of stainless steel braided flexible hoses are guaranteed, you can refer to the following specifications and choose your need.
Flexible Metal Hose Construction
Fixed&Loosen flanges ends drawing
 |
| NO.S | ITEMS | MATERIALS (Stainless steel) | REMARK |
| 1 | Floating & smaller flange | SS304/SS316L/SS321/carbon steel | ANSI,DIN,JS,GB,BS etc |
| 2 | Inner Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
| 3 | Outer Braids | SS304/SS316 | no/1/2/3 layer |
| 4 | Fixed flange | SS304/SS316L/SS321/SS201 | ANSI,DIN,JIS,GB,BS etc |
Fixed flanges in both ends drawing
|
| NO.S | ITEMS | MATERIALS (Stainless steel) | REMARK |
| 1 | Fixed flange both ends | SS304/SS316L/SS321/carbon steel | ANSI,DIN,JIS,GB,BS etc |
| 2 | Inner Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
| 3 | Outer Braids | SS304/SS316 | no/1/2/3 layer |
Operating Pressure---DN10 High pressure stainless steel braided flexible metal hose
• Up to 32.0Mpa (Double braids)
• Up to 23.0Mpa (Single braids)
Operating Temperature
• -196℃ ~ +420℃
Applications Of Stainless Steel Braided Flexible Metal Hose
Typical applications for high pressure stainless steel braided flexible metal hose include all chemical industries,iron and steel manufacturing oil and gas industry,paper and board manufacturing and all process and liquid handling industries. • Oil and Gas Refineries
• Power Plants
• Steel Plants
• Pump & Paper Mills
• Nuclear Installations
• Fertilizer Industry
• Pharmaceutical Industry
• Chemical Industry
• Industry Boilers
How to Select Stainless Steel Braided Flexible Metal Hose Pipe? The following factors need to be considered when purchasing a stainless steel braided flexible metal hose pipe connection
---Temperature
---Dynamic pressure(carring capacity)
---Flexibility
---Chemical compatibility
---Optional accessories
