DN50-300MM
Fustar
83071000

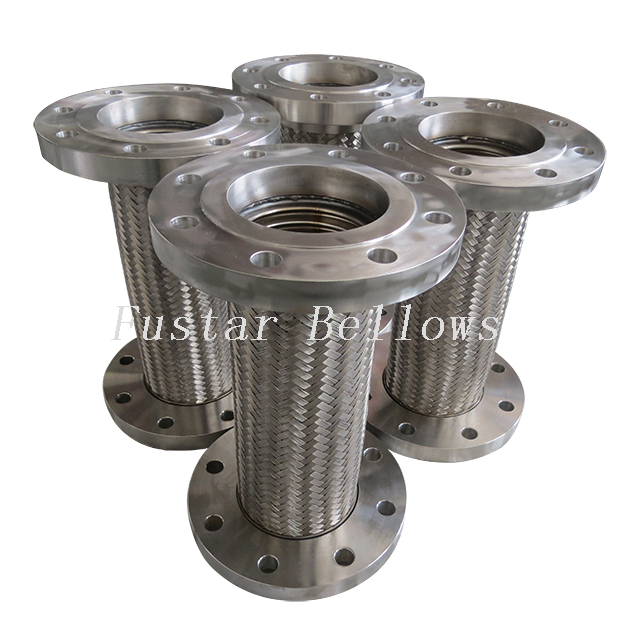

DN50-300MM ANSI Flanged Flexible Metal Hose
The flanged flexible metal hose is designed to carry gases and liquids at elevated rates of pressure and temperature or high vacuum,in a vibrating environment or where flexibility is required.The flexible metal hose is composed from an inner hydroformed,corrugated thin-walled pipe that is externally braided or unbraided for vacuum service.The metal flexible hoses can be welded to a variety of fittings and connectors,allowing compatibility with industry interfaces.Flexible flanged metal hoses are widely used in chemical ,pharmaceutical,semiconductor, vacuum industries etc.

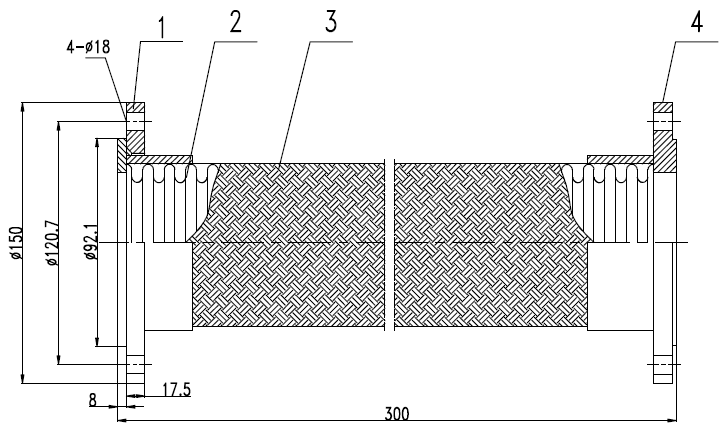

Drawing of DN50-300MM ANSI Flanged Flexible Metal Hose
Construction and Specifications for DN50-300MM Flexible Metal Hose
1 Loosen&Smaller flange: ANSI B16.5 150# , full stainless steel SS316L
2 Bellows : stainless steel SS316L
3 Single braid: SS316
4 Fixed flange: ANSI B16.5 150# , stainless steel SS316L
Features
· Available in range of sizes from 6mm to 800mm normal diameter
· Super-flexible
· Chemical resistanct
· Stainless steel grade SS304,SS316L,SS321
· Standard flanges ends connection or custom made end fittings
· Comprehensive range of standard fittings materials including stainless steel,carbon steel
· Temperature range -260℃ to +800℃
· Technical support
Applications for Flexible Metal Hose
·Chemical compatibility
·Temperature extremes
·Flexibility or vibration
·Fire safety
·Permeability concerns
·Achieving full vacuum
How to order Flanged Flexible Metal Hose
To selection of flanged flexible metal hoses for a particular application is influenced by these primary considerations as follow:
· Working pressure
· Working temperature
· Media
· Normal diameter
· Total length
· Material of bellows
· Material of flange
· Flange standard
· Flange pressure standard
To make the best choice for a specific application,consider all the relevent operating factors against the properties of the various types of flanged flexible metal hoses.
