Spiral Corrugated Flexible Metal Hose
6≤DN≤63.5 MM
Material: Stainless Steel SS304,316,316L,321
Discription
Corrugated flexible metal hoses with their high temperature and resistance and easy bent structures are produced in two different version(Annular &Spiral)depending on the corrugation types. You can choose one corrugated flexible metal hose which suits you.

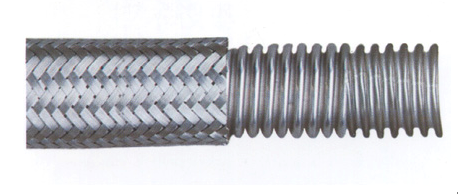

Spiral corrugation: Like annular corrugation, Spiral corrugation has a similar feature: Spiral corrugated metal hose is also made from longitudinally welded tubing but with the corrugations formed in helix or spiral relative to the axis of the hose.
Forming Precess
Stainless steel strip ---Automatic cutting ---Rolling TIG welding ---Corrugation forming
We can design spiral corrugated metal hoses according to the requirements of customers. Besides spiral corrugated metal hoses, we also have other spiral products, like spiral flexible metal hose, suspension system spiral vibration absorber and so on.
Technique Parameter
DN | I.D | O.D mm | Pitch Distance | Wall Thickness | Weight | Min Bend Radius R.(mm) | Norminal Pressure (Mpa) PN | Wire Diameter | Wire Quantity | |||||
mm | inch | mm | Bellow | With 1 Ply Braid | mm | mm | Kg/m | Static | Dynamic | 1 Ply Braid | 2 Plys Braids | 3 Plys Braids | mm | |
8 | 5/16 | 8 | 11.1±0.2 | 13.1 | 2.2 | 0.2 | 0.1 | 65 | 145 | 23 | 32 | / | 0.3 | 6 |
10 | 3/8 | 10.9 | 15±0.2 | 17 | 2.7 | 0.2 | 0.16 | 80 | 180 | 23 | 32 | / | 0.3 | 7 |
12 | 1/2 | 12 | 18.4±0.2 | 20.4 | 3.5 | 0.2 | 0.18 | 95 | 215 | 23 | 32 | / | 0.3 | 8 |
15 | 5/8 | 15.5 | 21.5±0.2 | 23.5 | 3.8 | 0.2 | 0.22 | 120 | 270 | 21 | 25 | / | 0.3 | 7 |
20 | 3/4 | 20 | 25±0.2 | 27 | 4 | 0.2 | 0.24 | 160 | 360 | 16 | 25 | 32 | 0.3 | 9 |
25 | 1 | 25 | 32.5±0.25 | 34.5 | 4.3 | 0.25 | 0.45 | 175 | 400 | 10 | 15 | 25 | 0.3 | 10 |
32 | 1 1/4 | 31 | 41±0.3 | 43 | 5.5 | 0.25 | 0.55 | 225 | 510 | 6.3 | 10 | 15 | 0.3 | 12 |
40 | 1 1/2 | 40 | 50±0.3 | 52.5 | 6 | 0.28 | 0.8 | 280 | 640 | 4.0 | 6.3 | 10 | 0.4 | 9 |
50 | 2 | 50 | 62±0.3 | 64.5 | 7 | 0.28 | 1 | 350 | 800 | 2.5 | 4.0 | 6.3 | 0.4 | 12 |
Ordering
Corrugated metal hoses are normally manufactured in Standard Pitch. In general , each manufacture specifies a standard number of corrugation per meter based on their own specifications considering the acceptable flexibility. If you have specific requirements , pls let us know as follow:
---Normal diameter (Inner diameter)
---External diameter
---Length
---Height of convolutions
---Pitch
---Wall thickness
---Material selection
Spiral Corrugated Flexible Metal Hose
6≤DN≤63.5 MM
Material: Stainless Steel SS304,316,316L,321
Discription
Corrugated flexible metal hoses with their high temperature and resistance and easy bent structures are produced in two different version(Annular &Spiral)depending on the corrugation types. You can choose one corrugated flexible metal hose which suits you.
Spiral corrugation: Like annular corrugation, Spiral corrugation has a similar feature: Spiral corrugated metal hose is also made from longitudinally welded tubing but with the corrugations formed in helix or spiral relative to the axis of the hose.
Forming Precess
Stainless steel strip ---Automatic cutting ---Rolling TIG welding ---Corrugation forming
We can design spiral corrugated metal hoses according to the requirements of customers. Besides spiral corrugated metal hoses, we also have other spiral products, like spiral flexible metal hose, suspension system spiral vibration absorber and so on.
Technique Parameter
DN | I.D | O.D mm | Pitch Distance | Wall Thickness | Weight | Min Bend Radius R.(mm) | Norminal Pressure (Mpa) PN | Wire Diameter | Wire Quantity | |||||
mm | inch | mm | Bellow | With 1 Ply Braid | mm | mm | Kg/m | Static | Dynamic | 1 Ply Braid | 2 Plys Braids | 3 Plys Braids | mm | |
8 | 5/16 | 8 | 11.1±0.2 | 13.1 | 2.2 | 0.2 | 0.1 | 65 | 145 | 23 | 32 | / | 0.3 | 6 |
10 | 3/8 | 10.9 | 15±0.2 | 17 | 2.7 | 0.2 | 0.16 | 80 | 180 | 23 | 32 | / | 0.3 | 7 |
12 | 1/2 | 12 | 18.4±0.2 | 20.4 | 3.5 | 0.2 | 0.18 | 95 | 215 | 23 | 32 | / | 0.3 | 8 |
15 | 5/8 | 15.5 | 21.5±0.2 | 23.5 | 3.8 | 0.2 | 0.22 | 120 | 270 | 21 | 25 | / | 0.3 | 7 |
20 | 3/4 | 20 | 25±0.2 | 27 | 4 | 0.2 | 0.24 | 160 | 360 | 16 | 25 | 32 | 0.3 | 9 |
25 | 1 | 25 | 32.5±0.25 | 34.5 | 4.3 | 0.25 | 0.45 | 175 | 400 | 10 | 15 | 25 | 0.3 | 10 |
32 | 1 1/4 | 31 | 41±0.3 | 43 | 5.5 | 0.25 | 0.55 | 225 | 510 | 6.3 | 10 | 15 | 0.3 | 12 |
40 | 1 1/2 | 40 | 50±0.3 | 52.5 | 6 | 0.28 | 0.8 | 280 | 640 | 4.0 | 6.3 | 10 | 0.4 | 9 |
50 | 2 | 50 | 62±0.3 | 64.5 | 7 | 0.28 | 1 | 350 | 800 | 2.5 | 4.0 | 6.3 | 0.4 | 12 |
Ordering
Corrugated metal hoses are normally manufactured in Standard Pitch. In general , each manufacture specifies a standard number of corrugation per meter based on their own specifications considering the acceptable flexibility. If you have specific requirements , pls let us know as follow:
---Normal diameter (Inner diameter)
---External diameter
---Length
---Height of convolutions
---Pitch
---Wall thickness
---Material selection
