1/2" To 24"
Fustar
83071000

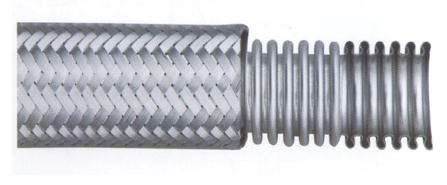

Annular Corrugated Flexible Metal Hose
12≤DN≤800 MM
Material: Stainless Steel SS304,316,316L,321
Discription
Annular corrugated flexible metal hose with their high temperature ,resistance and easy bent structures are produced in two different versions(Annular &Spiral)depending on the corrugation types. You can choose one corrugated flexible metal hose which suits you.
Annular corrugation: Annular corrugated metal hose is made from longitudinally welded tubing but with the corrugations formed in parallel planes vertical to the axis of the hose.
Flexibility of annular corrugated metal hoses depends on the profile and the distance between the corrugations as well as the wall thickness. Higher profiles with small distance between the corrugations provide more flexibility. In the same way, reducing the wall thickness also causes an increase in the flexibility, but in this case, the pressure resistance will be reduced. We can choose a suitable way to increase the annular corrugated metal hose pipe's flexibility according to the specific situation.
Forming Precess
Stainless steel strip-----Automatic cutting-----Rolling TIG welding-----Corrugation forming
Technique Parameter
DN | I.D | O.D mm | Pitch Distance | Wall Thickness | Weight | Min Bend Radius R.(mm) | Norminal Pressure (Mpa) PN | Wire Diameter | Wire Quantity | |||||
mm | inch | mm | Bellow
| With 1 Ply Braid | mm | mm | Kg/m | Static | Dynamic | 1 Ply Braid | 2 Plys Braids | 3 Plys Braids | mm | |
12 | 1/2 | 12 | 18±0.3 | 21 | 4 | 0.25 | 0.2 | 40 | 130 | 10 | 12 | 25 | 0.3 | 8 |
15 | 5/8 | 15 | 21.5±0.3 | 24.5 | 4 | 0.28 | 0.32 | 70 | 190 | 10 | 12 | 25 | 0.3 | 7 |
18 | 11/16 | 18 | 25±0.3 | 28 | 4.5 | 0.28 | 0.36 | 90 | 205 | 8 | 12 | 25 | 0.3 | 8 |
20 | 3/4 | 20 | 28±0.3 | 33 | 4.5 | 0.28 | 0.38 | 175 | 400 | 7.5 | 12 | 25 | 0.3 | 9 |
25 | 1 | 24.4 | 32.5±0.3 | 35 | 4.5 | 0.28 | 0.5 | 225 | 510 | 6.3 | 10 | 15 | 0.3 | 10 |
32 | 1.25 | 32 | 41±0.3 | 45 | 5 | 0.28 | 0.6 | 280 | 640 | 4.0 | 6.3 | 10 | 0.3 | 12 |
40 | 1.5 | 39.6 | 51±0.3 | 55 | 6 | 0.28 | 0.75 | 350 | 800 | 2.5 | 4.0 | 6.3 | 0.4 | 9 |
50 | 2 | 49.7 | 62±0.3 | 66 | 7 | 0.28 | 1.0 | 390 | 845 | 2.5 | 4.0 | 6.3 | 0.4 | 12 |
65 | 2.5 | 64.8 | 78.5±0.3 | 82 | 8 | 0.28 | 1.3 | 480 | 1000 | 2.5 | 4.0 | 6.3 | 0.4 | 14 |
80 | 3 | 74.7 | 98±0.4 | 102 | 10.8 | 0.4 | 1.9 | 600 | 1200 | 2.5 | 4.0 | 5.0 | 0.4 | 14 |
100 | 4 | 96.5 | 120±0.4 | 125 | 12.5 | 0.4 | 2.5 | 750 | 1500 | 2.5 | 4.0 | 5.0 | 0.4 | 16 |
125 | 5 | 124.7 | 152±0.5 | 157 | 15 | 0.5 | 3.5 | 900 | 1800 | 2.0 | 2.5 | 4.0 | 0.5 | 12 |
150 | 6 | 149.4 | 182±0.5 | 187 | 18 | 0.5 | 4.5 | 1000 | 2000 | 1.6 | 2.5 | 4.0 | 0.5 | 15 |
200 | 8 | 199.4 | 236±0.6 | 243 | 23 | 0.6 | 6.5 | 1250 | 2500 | 1.6 | 2.5 | 4.0 | 0.5 | 17 |
250 | 10 | 248 | 292±0.8 | 297 | 25 | 0.8 | 11.5 | 1250 | 2500 | 1.6 | 2.5 | 4.0 | 0.5 | 18 |
300 | 12 | 298 | 348±1 | 353 | 30 | 1.0 | 13.5 | 1500 | 3000 | 1.6 | 2.0 | 2.5 | 0.5 | 19 |
350 | 14 | 347.6 | 398±1 | 403 | 35 | 1.0 | 20 | 1750 | 3500 | 1.0 | 2.0 | 2.5 | 0.5 | 19 |
400 | 16 | 398 | 448±1.2 | 453 | 35 | 1.2 | 24.8 | 2000 | 4000 | 1.0 | 1.6 | 2.5 | 0.6 | 19 |
450 | 18 | 448 | 498±1.2 | 503 | 35 | 1.2 | 28 | 2250 | 4500 | 1.0 | 1.6 | 2.5 | 0.5 | 47 |
500 | 20 | 498 | 548±1.2 | 553 | 35 | 1.2 | 30.8 | 2500 | 5000 | 1.0 | 1.6 | 2.5 | 0.5 | 53 |
600 | 24 | 598 | 648±1.2 | 653 | 35 | 1.2 | 37 | 3000 | 6000 | 0.6 | 1.0 | 1.6 | 0.5 | 58 |
700 | 28 | 698 | 748±1.2 | 753 | 35 | 1.2 | 45 | 3500 | 7000 | 0.6 | 1.0 | 1.6 | 0.5 | 65 |
800 | 32 | 798 | 848±1.2 | 853 | 35 | 1.2 | 53 | 4000 | 8000 | 0.6 | 1.0 | 1.6 | 0.5 | 72 |
Ordering
Annular corrugated metal hoses are normally manufactured in Standard Pitch. In general , each manufacture specifies a standard number of corrugation per meter based on their own specifications considering the acceptable flexibility. If you have specific requirements , pls let us know as follow:
---Normal diameter (Inner diameter)
---External diameter
---Length
---Height of convolutions
---Pitch
---Wall thickness
---Material selection
