DN25
Fustar
83071000
Hot sell galvanized plain end seal joint thread metal flexible hose
Galvanized plain end seal joint thread metal flexible hose with thread and bolt,its drift diameter usually under 50mm and can endure higher working pressure.Thread metal flexible hose's material and numbers of mesh grid can change replying on different medium,temperature and pressure .

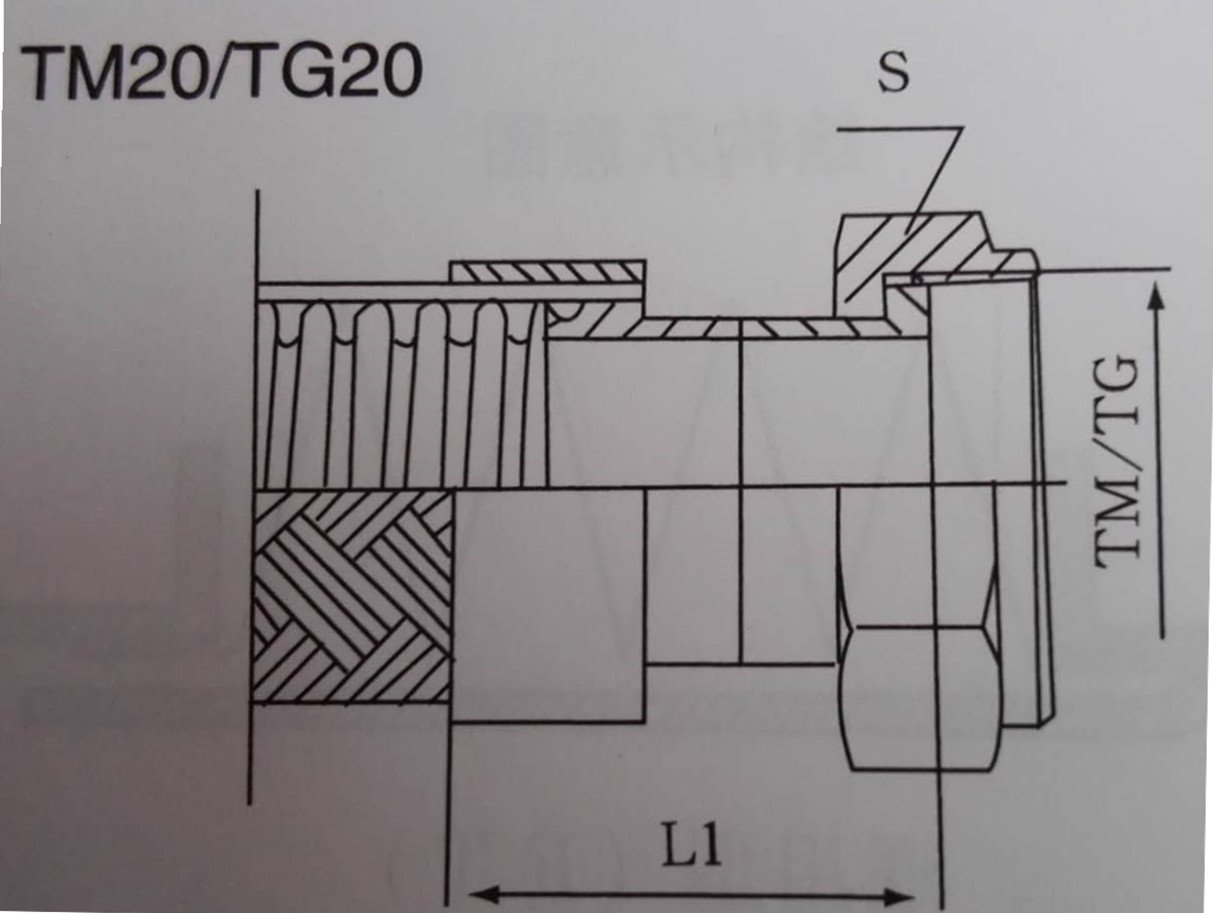

Fitting Construction Type And Parameters
CONSTUCTION:
TM20:Loosen nut, metric screw thread,plain sealing joint.
TG20:Loosen nut,pipe screw thread,plain sealing joint.
DN | Connection Spec | Rigid Segment Length | |||
mm | TM20 | S | TG10 | S | mm |
4 | M12X1.25 | 17 | / | / | 48 |
6 | M14X1.5 | 17 | G1/8 | 17 | 48 |
8 | M16X1.5 | 19 | G1/4 | 19 | 48 |
10 | M20X1.5 | 24 | G3/8 | 22 | 48 |
12 | M22X1.5 | 27 | / | / | 53 |
15 | M24X1.5 | 27 | G1/2 | 27 | 53 |
18 | M30X1.5 | 36 | / | / | 57 |
20 | M30X1.5 | 36 | G3/4 | 32 | 57 |
25 | M36X1.5 | 41 | G1 | 41 | 57 |
32 | M45X1.5 | 50 | G1 1/4 | 50 | 73 |
40 | / | / | G1 1/2 | 55 | 81 |
50 | / | / | G2 | 70 | 87 |
Features of Flexible Hoses
· They thread metal flexible hose is accommodate expansion and movement, serve as a flexible connection between mobile and static elements of mechanical equipment, neutralise of vibrations, equalize unavoidable assembly tolerances. The galvanized plain end seal joint thread metal flexible hoses can be used as extinguishing and loading hoses, as fuel hoses, etc.
· For protection against mechanical influences, for example impermissible buckling and abrasion, we supply our stainless steel corrugated flexible hoses with external or internal protective a graffe hose made of stainless steel.
· For protection against contact or for danger-free handling we equip our stainless steel corrugated hoses with external thermal insulation. Fustar galvanized plain end seal joint thread metal flexible hoses are used in all temperature ranges from - 196°C to +600°C, and from a high vacuum up to a pressure of 200 bar.
Usages of Metal Flexible Hose
The galvanized plain end seal joint thread metal flexible hose is used to protect all kinds of device signal lines,transmission wire and cables,optical fiber and cables.Applying to four categories of products:
1. Wire protection tubes used in armoured cables,precision optical ruler,optical measuring instruments, medical instruments and machinery equipments.
2. The devices that needs SS wire safety protection like public telephone sets,remote water metering and magentic contacts.
3. All kinds of small wire protection hose pipes.
4. Network cable protection used in computers and robots etc.
