DN32
Fustar
83071000
Metric thread system (M) ball end seal joint thread metal flexible hoses
Thread metal flexible hoses are used to absorb thermal and seismic movement,absorb hydraulic shock,provide vibration and noise dampening,ease installation and correct misalignment of piping and components.Ball end seal joint thread metal flexible hoses come in a variety of sizes,and connection ends for numerous applications.
The inner flexible hose is an annular(bellows) design.An annular metal flexible hose is better suited for pump connections because it can better sustain torrion stress due to longitudinal expansion from rises in pressure.Metal wire braid on a metal flexible hose assembly restrains against hose elongation under higher pressures and acts to dampen vibration. A heavy braid also increases abrasion resistance. Optimal braid coverage will contain the core under pressure and reduce the possibility of twisting and suiming.
Specification & Construction
Normal Diameter :DN6~DN100
Bellow thickness :0.2mm~0.4mm
Available Pressure : PN≤4.0Mpa
Available Temperature : -196℃ ~ +600℃
Medium: oil,water,gas, chemical fluid etc
Materials : Bellows,braids----Stainless steel SS304,SS316L,SS321
Threaded nuts----Stainless steel SS304,SS316L,SS321, carbon steel
Recommend length: 300mm,400mm,500mm,600mm,1000mm,2000mm,
Thread nut connection type :
A , Female thread nut in both ends
B, One end is male thread nut, female thread nut+external adapter in another end
C, Male thread nut in both ends

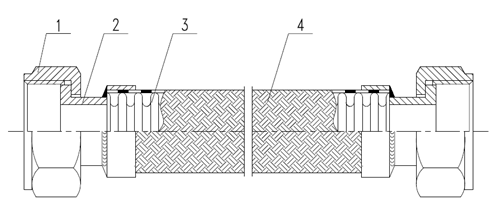

A. Female thread nuts in both ends drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Femaie thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Flat fitting | SS304/SS316 | Flat/Sphere/Flare opening |
3 | Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
4 | Braids | SS304 | 1/2/3 layer |

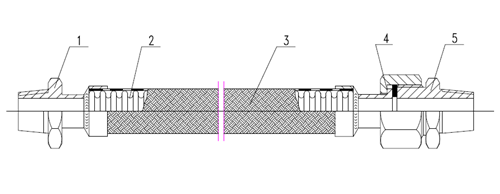

B. Male thread nut & Female thread nut+ fitting in each end drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Male thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
3 | Braids | SS304 | 1/2/3 layer |
4 | Female thread nut | Stainless steel/Carbon steel | NPT/BSP |
5 | External adapter | Stainless steel | ---------- |

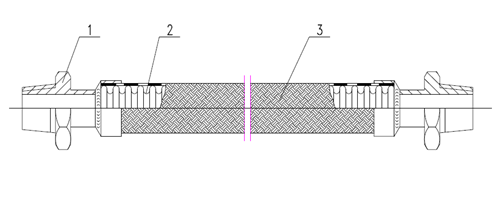

C. Male thread nuts in both ends drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Male thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Inner Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
3 | Outer Braids | SS304 | 1/2/3 layer |
The use of ball end seal joint thread joint metal flexible hose for applications such as pumps, compressors and other mechanical equipment can enhance the overall operation of a system.
Advantages:
· Longer service life
· Increased pressure capacity
· Greater fatigue resistance due to flex
· Increased temperature capacity of media
· Greater protection of annular hose
· Acceptance of thermal expansion
Metric thread system (M) ball end seal joint thread metal flexible hoses
Thread metal flexible hoses are used to absorb thermal and seismic movement,absorb hydraulic shock,provide vibration and noise dampening,ease installation and correct misalignment of piping and components.Ball end seal joint thread metal flexible hoses come in a variety of sizes,and connection ends for numerous applications.
The inner flexible hose is an annular(bellows) design.An annular metal flexible hose is better suited for pump connections because it can better sustain torrion stress due to longitudinal expansion from rises in pressure.Metal wire braid on a metal flexible hose assembly restrains against hose elongation under higher pressures and acts to dampen vibration. A heavy braid also increases abrasion resistance. Optimal braid coverage will contain the core under pressure and reduce the possibility of twisting and suiming.
Specification & Construction
Normal Diameter :DN6~DN100
Bellow thickness :0.2mm~0.4mm
Available Pressure : PN≤4.0Mpa
Available Temperature : -196℃ ~ +600℃
Medium: oil,water,gas, chemical fluid etc
Materials : Bellows,braids----Stainless steel SS304,SS316L,SS321
Threaded nuts----Stainless steel SS304,SS316L,SS321, carbon steel
Recommend length: 300mm,400mm,500mm,600mm,1000mm,2000mm,
Thread nut connection type :
A , Female thread nut in both ends
B, One end is male thread nut, female thread nut+external adapter in another end
C, Male thread nut in both ends
A. Female thread nuts in both ends drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Femaie thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Flat fitting | SS304/SS316 | Flat/Sphere/Flare opening |
3 | Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
4 | Braids | SS304 | 1/2/3 layer |
B. Male thread nut & Female thread nut+ fitting in each end drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Male thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
3 | Braids | SS304 | 1/2/3 layer |
4 | Female thread nut | Stainless steel/Carbon steel | NPT/BSP |
5 | External adapter | Stainless steel | ---------- |
C. Male thread nuts in both ends drawing | |||
NO.S | ITEMS | MATERIALS | REMARK |
1 | Male thread nut | Stainless steel/Carbon steel | NPT/BSP |
2 | Inner Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
3 | Outer Braids | SS304 | 1/2/3 layer |
The use of ball end seal joint thread joint metal flexible hose for applications such as pumps, compressors and other mechanical equipment can enhance the overall operation of a system.
Advantages:
· Longer service life
· Increased pressure capacity
· Greater fatigue resistance due to flex
· Increased temperature capacity of media
· Greater protection of annular hose
· Acceptance of thermal expansion
