1-1/2"---300mm NPT Galvanized Male&Female Threaded Metal Hose

1-1/2"--300mm NPT Male&Female Threaded Metal Hose

NPT threaded metal hoses are specially designed to dampen or suppress noise,absorb vibration of horizontal,vertical or angular,accommodate thermal expansion and stresses,and adjust or correct for misalignment in piping systems.The isolation of any of the above problem areas will extend the life of the entire system substantially.

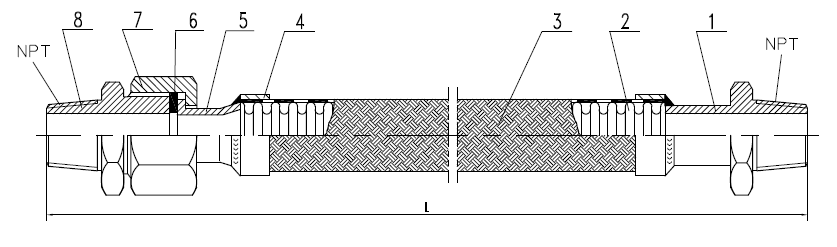

Drawing of 1-1/2"--300mm NPT Threaded Metal Hose

Construction

1 Lap joint

2 Bellows

3 Wire braids

4 Sheath

5 The plain joint

6 Sealing gasket

7 Nut

8 External adapter

Specifications

Name:  NPT Male&Female Threaded Metal Hose

Size: 1-1/2"

Length: 300mm

One end fitting: Longer NPT male threaded nut

Another end fitting: NPT plain nut & external adapter

Threaded nuts material: Carbon steel,galvanized

Inner bellows material: Stainless steel SS304

Outer braids: Stainless steel SS304

Working pressure: 10 bar

Working temperature: 27 celcius degree

Application: Gasoline

Production standard: GB/14525-2010

How to Order Threaded Metal Flexible Hose

Pls provide the following information:

·Size of hose:Nominal diameter and total length

·System application:Flowing media,special requirements

·Type of hose:Material of construction,any corrosive conditions

·Threaded nut fitting:Female/male,NPT/BSP

·Pressure:Design,operating

·Temperature:Design,operating

·Installation: Straight,offset

·Movement:Constant or intermittent

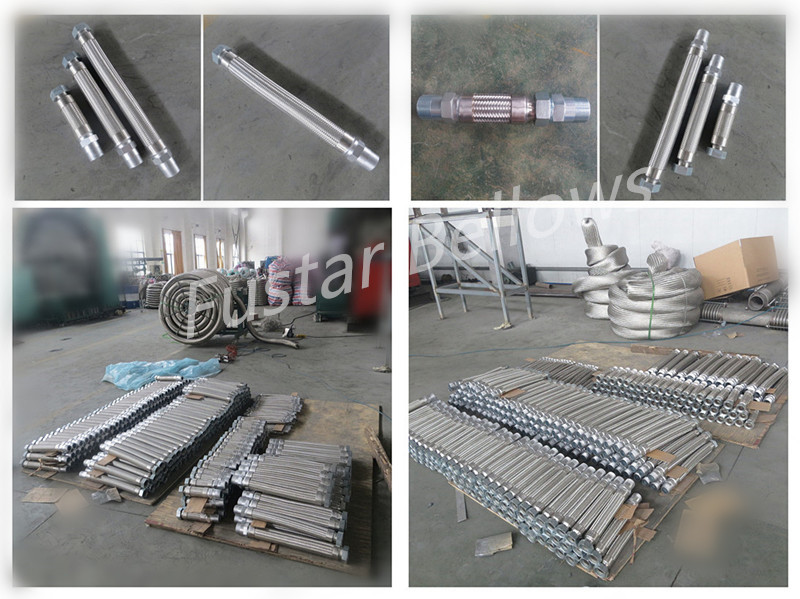

Photo Gallery of 1-1/2" Threaded Flexible Metal Hose Available in Different Length
