DN50-1000MM Corrugated Flexible Metallic PTFE Lined Hose

Our corrugated flexible metallic PTFE lined hose is composed of PTFE convoluted inner core ,stainless steel wire braid reinforcement and end flanges. It can endure temperature ranging from -60℃ to +200℃.The PTFE lined flexible hoses are widely used in chemical transfer, hydraulic systems,food processing, marine ,transportation industries etc.
Price: $ 118
Availability:
Quantity:

  • DN50-1000mm
  • Fustar
  • 83071000

DN50-1000MM Corrugated Flexible Metallic PTFE Lined Hose

Specifications

Inner Diameter: 50mm

Length: 1000mm

Bellow: PTFE corrugated hose

Flange: ANSI 150#,swivel

Flange material: Stainless steel SS304

Braids: Double ply, SS304

PTFE thickness: 2mm

Working Pressure: 10bar

Temperature: 50~60 celcius degree

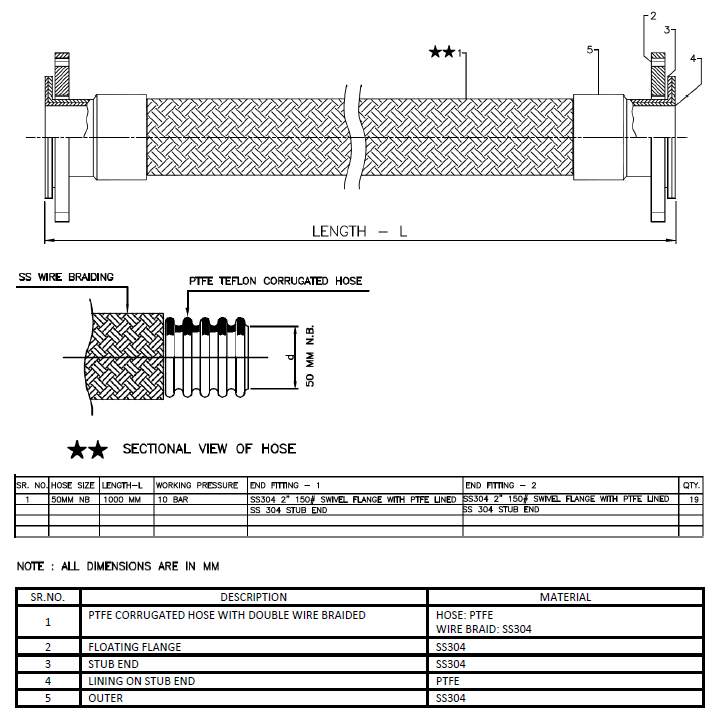

Drawing

corrugated flexible metallic ptfe lined hose drawing

Advantanges of Corrugated Flexible Metallic PTFE Lined Hose

PTFE is an ideal material for flexible bellow hose,to which a wire braid is added for excellent pressure ratings. Such hose gives extremely long life because its inner core has out-standing resistance to steam,chemicals,solvents,heat pressure impulses,flexing,vibration and aging.

Flexible                        : PTFE lined hose will stand up under severe conditions of continuous flexing and vibration without failure from flex fatigue.

Chemical Resistant    : Inert PTFE creates a nearly"Universal" hose,capable of handling the broadest range of applications except the molten alkali metals such as sodium and potassium and fluorochemicals such as chlorine trifluoride, oxygen difluoride and fluorine gas.

Temperature Resistant: Even Handles 180℃ steam alternating with cold water.

Non-stick                     :PTFE lined bellow hose is easily cleaned,to maintain batch purity when using one hose for several services.

Low Friction                : PTFE teflon flexible hose exhibits low pressure drop,which remains constant because no deposits accumulate on inside walls.

Moisture Resistant     : Ideal for pneumatic systems requiring low dew point.

Non-aging                   : Properties of teflon lined hose do not change with age or exposure to weather.

End Connection           : Swaged,crimped or reusable type.


Photo Gallery of DN50-1000MM Corrugated Flexible Metallic PTFE Lined Hose

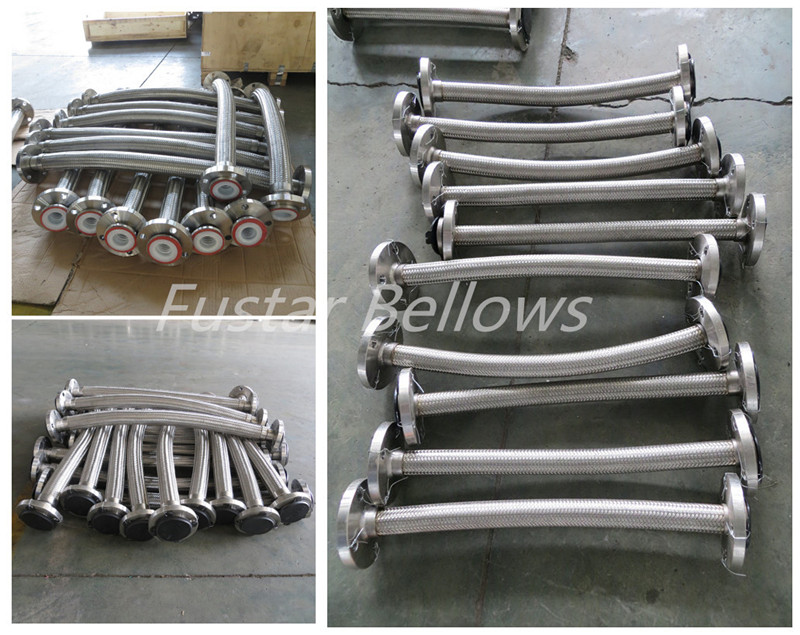

PTFE lined flanged flexible metal hose
