PTFE Teflon Lined Wire Braided Flexible Bellow Hose
PTFE lined wire braided flexible bellow hose is used in the chemical industry if the corrosion resistance of metal materials is no longer sufficient. In addition,PTFE lined hose assemblies are well suited as supply and filling hoses due to their smooth inner surfaces.

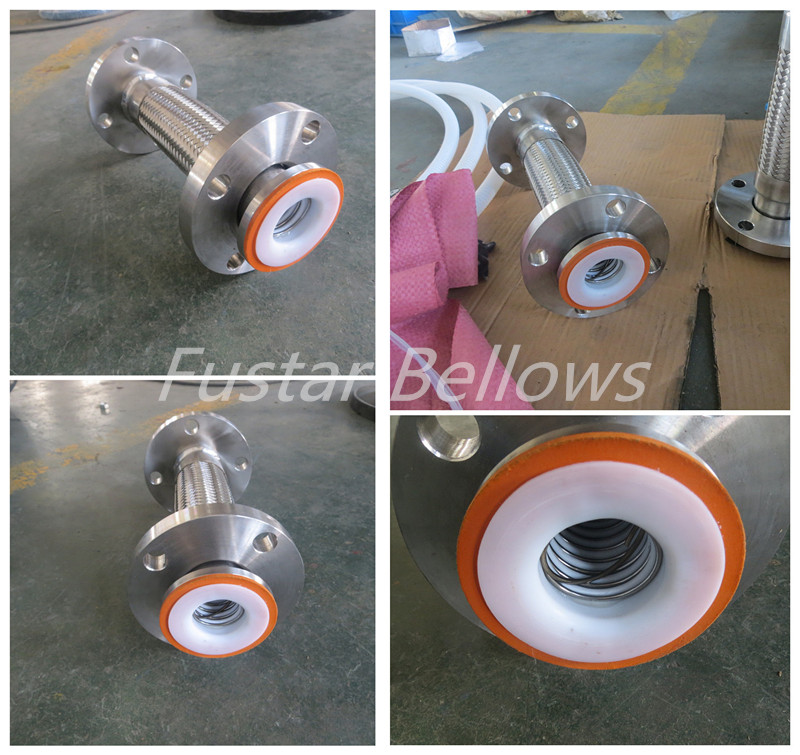

Our photos show the stripwound hoses with integrated profile,which is fitted internally with a PTFE liner.Outer braiding absorbs the longitudinal force resulting from the internal pressure and provides protection in combination with the stripwound hose against external mechanical loads.Welding rings and swivelling flanges made of steel or stainless steel serve as connection fittings on both sides.The PTFE liner also protects the sealing surface of the welding rings.
Wire braided flexible bellow hose assemblies lined with PTFE can be used in a temperature range of -40℃ to +230℃. The standard dimensions are listed in the technique parameter forms.
Structure
Inside: PTFE hose, the hose can be smoothbore PTFE , and also convoluted , for high and low temperature used, anti-corrosive, non-stick.
Outside: SUS304 Stainless steel braided. High pressure resistance. All kinds of couplings can be available.

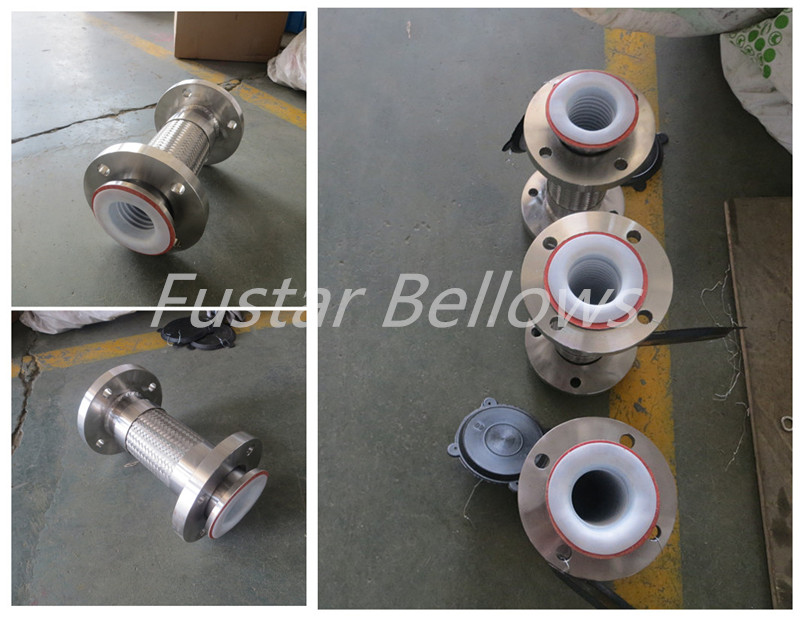

Photo Gallery of PTFE Teflon Lined Wire Braided Flexible Bellow Hose
