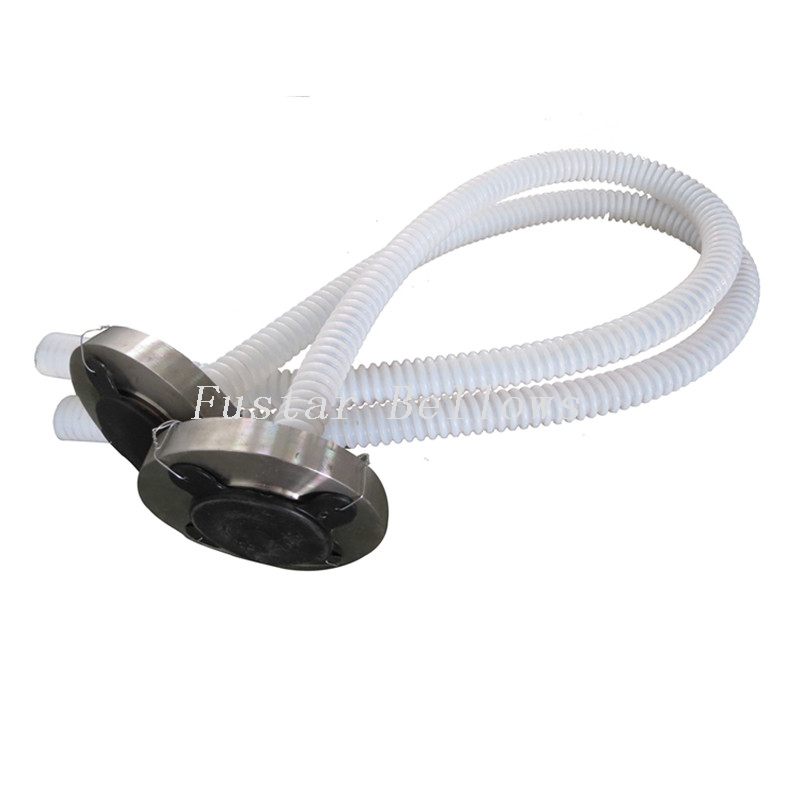

Stainles Steel Industry Flexible Braided Convoluted PTFE Teflon Hose

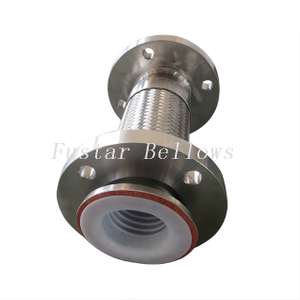

PTFE Teflon Lined Wire Braided Flexible Bellow Hose is widely used in chemical,petroleum,textile,
pharmaceutical,metallurgy,machinery,electronics,applicances,electricity,food and aviation.
Flange: SS304/carbon steel
Bellow: PTFE (F4)
Braid: SS304
Connection tube : SS304/carbon steel
Availability:
Quantity:
  • DN15~DN200
  • Fustar
  • 83071000

Stainles Steel Industry Flexible Braided Convoluted PTFE Teflon Hose

PTFE(F4) 15DN200

Fustar convoluted PTFE hose is probably the optimum flexible hose for all applications being virtually inert to all chemicals, self-cleaning, non-stick, excellent fatigue, kink resistant and extremely flexible. The industry flexible braided convoluted PTFE hose can be used to connect different pipes. Fustar is produced by a patented process with shallow helical convolutions and helix outer stainless wire support. The stainless steel braided PTFE hose's service life is long and easy to clean, beyond that, our flexible teflon hose still have other merits.

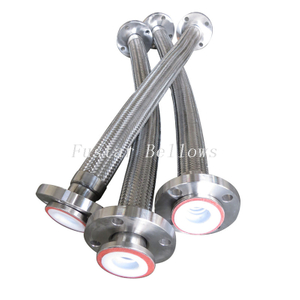

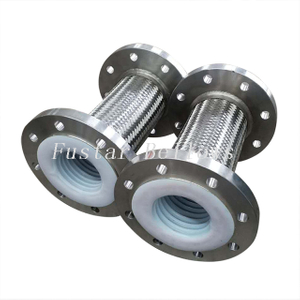

Stainless Steel Industry Flexible Braided Convoluted PTFE Teflon Hose is mainly composed of inner convoluted Teflon hose (ideal anti-corrosion material) and stainless steel braid outside for protection and loaning pressure, with buckled metal connectors on both ends. Our industry PTFE hoses have many connection types, we also have different PTFE hoses, such as convoluted PTFE hose and flexible PTFE hose, besides hoses, we have teflon PTFE expansion joints and other related products. We will meet all your requirements about the PTFE hose.

Structure

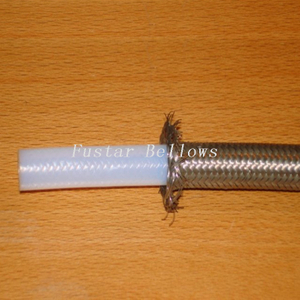

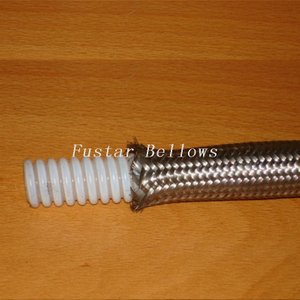

Inside: PTFE hose, the hose can be smoothbore PTFE , and also convoluted , for high and low temperature used, anti-corrosive, non-stick.
Outside: SUS304 Stainless steel braided. High pressure resistance. All kinds of couplings can be available.

Technique Parameter

  Nominal
 Diameter
          Common PTFE Bellow         PTFE Bellow With Braid     PTFE Bellow with Braid and
                  reinforcement
       DN
   (mm)
  Pressure
      Mpa

     Wire

  bending

   radius

 Temp.

  Pressure
       Mpa
     Wire
  bending
    radius
  Temp.  Pressure
       Mpa
     Wire
  bending
    radius
   Temp.
        15      0.65   ≥5.0DN     -100
   ~+150℃
       1.6








  ≥5.0DN


      -10
  ~+180℃
        2.0







   ≥5.0DN


       - 5

   ~+180℃
        20      0.62   ≥5.0DN       1.6        2.0
        25      0.60   ≥5.0DN       1.6        2.0
        32      0.50   ≥5.0DN       1.6        2.0
        40      0.50   ≥4.5DN       1.6

     -10
  ~+160℃
        2.0      - 5
  ~ + 170
        50      0.50   ≥4.5DN       1.6        2.0
        57      0.40   ≥4.0DN       1.6        2.0
        65      0.30   ≥4.0DN       1.6        2.0
        73      0.25   ≥3.5DN       1.6        2.0
        800.23   ≥3.5DN      -10
   ~+120℃
       1.6

      - 5
  ~+150℃
        2.0

       -5
   ~+150℃
        890.20   ≥3.5DN       1.6        2.0
      1000.18   ≥3.0DN       1.2        1.5
      114       0.12   ≥3.0DN       1.2        1.5
      125       0.08   ≥3.0DN       1.0        1.5
      150       0.07      5DN     - 0       1.0      6DN     - 0℃        1.2      6DN     - 0
      200       0.05      5DN   + 80       0.8      6DN   + 80        1.0      6DN    + 80

Features
1. Excellent chemical resistance
2. High and low temperature resistance(-100°C to 260°C)
3. High pressure resistance
4. Anti-aging,long life without an aging problem
5. Wear resistance, high lubrication
6. Anti-corrosion ,non-stick, easily cleaned
7. Fire resistance
8. Electrically insulated
9. Excellent flexibility

Applications Include
Chemicals                Acids                 Nuclear
Paint                      Solvents               Marine
Pharmaceuticals   Breweries         Petrochemicals
Food                    Steel plants           Textiles
Steam               Pulp and Paper    Automotive
Tanker Hoses         Dyeing                 Plastic
Tar and Bitumen   Cosmetics       Rubber Process
Drinking Water       Medical            Biochemicals
