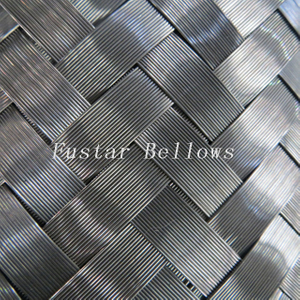

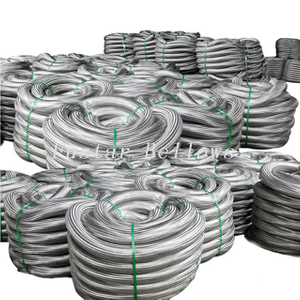

Stainless Steel Wire Braids
DN8~DN400MM
Construction of the braid is specified as (no.of carriers)X(no. of wires in each group)X(wire diameter)
Material :Stainles Steel 304,321,316,316L
Technique Parameter
Nominal Diameter DN(mm) | Internal Diameter I.D (mm) | Outer Diameter O.D (mm) | Plys n | Wire Diameter mm | Weight Kg/m |
8 | 12.5 | 6 | 24 | 0.3 | 0.13 |
10 | 16 | 7 | 24 | 0.3 | 0.17 |
12 | 19.5 | 8 | 24 | 0.3 | 0.19 |
15 | 22.5 | 7 | 36 | 0.3 | 0.21 |
18 | 27 | 8 | 36 | 0.3 | 0.3 |
20 | 29.5 | 9 | 36 | 0.3 | 0.31 |
25 | 34.5 | 10 | 36 | 0.3 | 0.39 |
32 | 43 | 12 | 36 | 0.3 | 0.55 |
40 | 53 | 10 | 48 | 0.4 | 0.75 |
50 | 65 | 12 | 48 | 0.4 | 0.95 |
65 | 81 | 14 | 48 | 0.4 | 1.3 |
80 | 102 | 14 | 72 | 0.4 | 1.6 |
100 | 124 | 16 | 72 | 0.4 | 1.9 |
125 | 156 | 12 | 96 | 0.5 | 2.8 |
150 | 186 | 15 | 96 | 0.5 | 3.9 |
200 | 244 | 18 | 96 | 0.5 | 5.6 |
250 | 297 | 18 | 112 | 0.5 | 6.5 |
300 | 353 | 18 | 144 | 0.5 | 7.5 |
350 | 403 | 18 | 148 | 0.5 | 8.5 |
400 | 453 | 18 | 160 | 0.5 | 10.5 |
Features
1. Unbraided corrugated tube elongates when pressurised above a certain level. To restrain this, a minimum of one external layer of braid is recommended, preventing longitudal expansion of the corrugated tube and thus increasing the internal pressure strength of the tube.
2. Our braids are also commonly used to sheeth hydraulic hoses, rubber hoses, plastic hoses and a wide range of other applications.
3. Wire braid is manufactured in our state of the art in house braid production facilities. Available in a variety of standard coil lengths and special lengths available upon request.
4. Braid is highly flexible and follows the movement of the hose. Excellent chemical resistance, durability and corrosion resistance.
5. Non-standard braids can be produced upon request.
6. Braid can be supplied loose, braided directly onto hose or supplied as part of hose assemblies.
Stainless Steel Wire Braids
DN8~DN400MM
Construction of the braid is specified as (no.of carriers)X(no. of wires in each group)X(wire diameter)
Material :Stainles Steel 304,321,316,316L
Technique Parameter
Nominal Diameter DN(mm) | Internal Diameter I.D (mm) | Outer Diameter O.D (mm) | Plys n | Wire Diameter mm | Weight Kg/m |
8 | 12.5 | 6 | 24 | 0.3 | 0.13 |
10 | 16 | 7 | 24 | 0.3 | 0.17 |
12 | 19.5 | 8 | 24 | 0.3 | 0.19 |
15 | 22.5 | 7 | 36 | 0.3 | 0.21 |
18 | 27 | 8 | 36 | 0.3 | 0.3 |
20 | 29.5 | 9 | 36 | 0.3 | 0.31 |
25 | 34.5 | 10 | 36 | 0.3 | 0.39 |
32 | 43 | 12 | 36 | 0.3 | 0.55 |
40 | 53 | 10 | 48 | 0.4 | 0.75 |
50 | 65 | 12 | 48 | 0.4 | 0.95 |
65 | 81 | 14 | 48 | 0.4 | 1.3 |
80 | 102 | 14 | 72 | 0.4 | 1.6 |
100 | 124 | 16 | 72 | 0.4 | 1.9 |
125 | 156 | 12 | 96 | 0.5 | 2.8 |
150 | 186 | 15 | 96 | 0.5 | 3.9 |
200 | 244 | 18 | 96 | 0.5 | 5.6 |
250 | 297 | 18 | 112 | 0.5 | 6.5 |
300 | 353 | 18 | 144 | 0.5 | 7.5 |
350 | 403 | 18 | 148 | 0.5 | 8.5 |
400 | 453 | 18 | 160 | 0.5 | 10.5 |
Features
1. Unbraided corrugated tube elongates when pressurised above a certain level. To restrain this, a minimum of one external layer of braid is recommended, preventing longitudal expansion of the corrugated tube and thus increasing the internal pressure strength of the tube.
2. Our braids are also commonly used to sheeth hydraulic hoses, rubber hoses, plastic hoses and a wide range of other applications.
3. Wire braid is manufactured in our state of the art in house braid production facilities. Available in a variety of standard coil lengths and special lengths available upon request.
4. Braid is highly flexible and follows the movement of the hose. Excellent chemical resistance, durability and corrosion resistance.
5. Non-standard braids can be produced upon request.
6. Braid can be supplied loose, braided directly onto hose or supplied as part of hose assemblies.
