DN40-DN300mm ANSI Galvanized Flange NBR Rubber Expansion Joint

We produce NBR rubber expansion joints as chemical industry standard HG/T2289-1992. The NBR rubber expansion joint are used when there are problems with noise and vibrations in pipe systems,and widely applied in a variety of industrial pipelines,power plants,heating networks,sewage treatment plants,pumping stations,water treatment stations and machines.

  • DN40-DN300mm

  • Fustar

  • 40169910

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

DN40-DN300mm ANSI Galvanized Flange NBR Rubber Expansion Joint
Specification

Size: DN40~300MM(Also available in other diameter according to clients' requirement)

Length: 130mm

Bellow: Nitrile rubber (NBR)

Flange: ANSI,150LBS , carbon steel ,galvanized

Reinforced Ring(vacuum ring): steel wire

Application: Marine

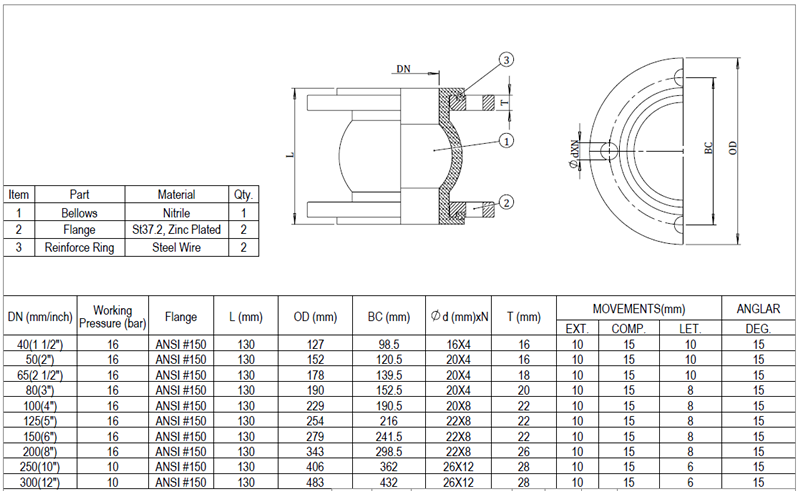

Drawing of DN40-DN300mm ANSI Galvanized Flange NBR Rubber Expansion Joint

nitrile bellow drawing


Photo Gallery

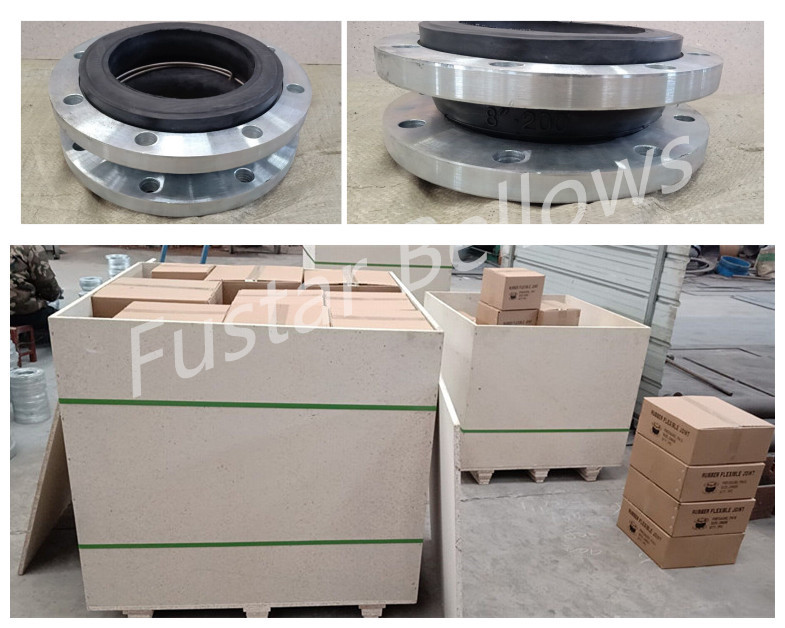

  nbr rubber compenstor packing

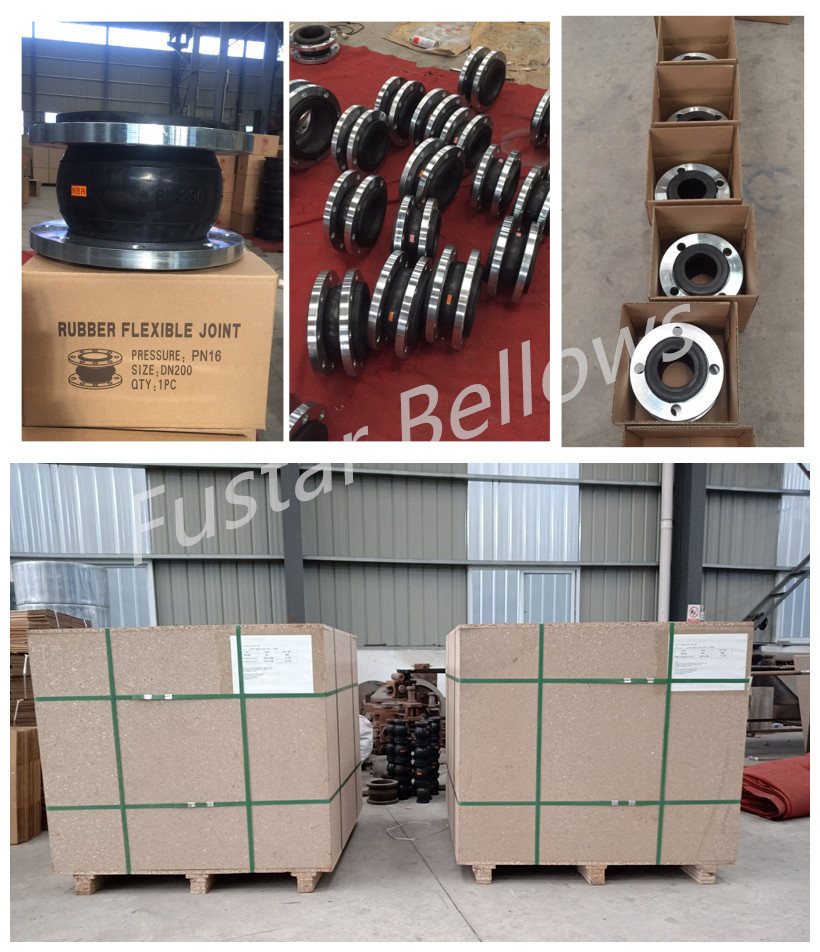

nitril rubber expansion joint
