DN150-230mm EPDM Rubber Expansion Joint

Fustar compensators are produced in accordance with the "Flexible Rubber Joints" chemical industry standard HG/T2289-1992.The rubber compensators are featured with good resistance to high temperature,acid,alkali and high pressure,which is generally made of vaveform rubber compensation parts and metal flanges.
Price: $ 130
Availability:
Quantity:

  • DN150-230MM
  • Fustar
  • 40169910

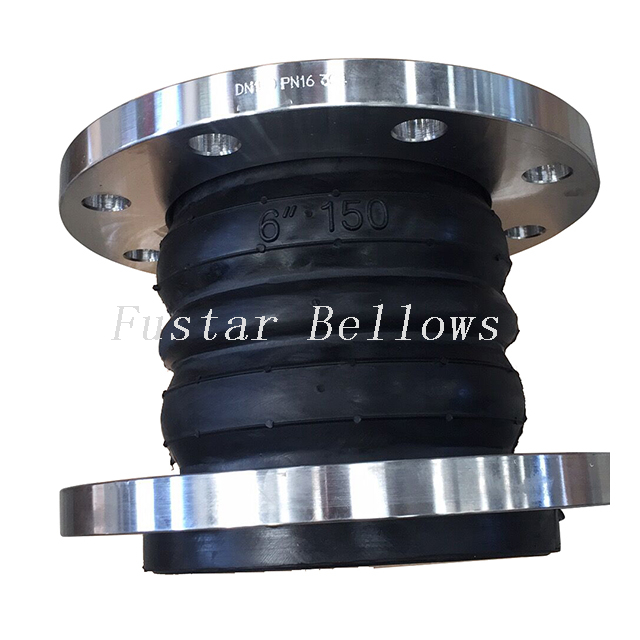

EPDM Rubber Expansion Joint
Fustar EPDM rubber expansion joint are designed to reduce vibration and dampen sound transmission.They are also designed to take the movements such as : compression movements ,extension movements,angular movements,torsional and lateral movements.Our main rubber materials are:EPDM,Neoprene,Nitrile, Hypalon,Viton and Natural rubber.

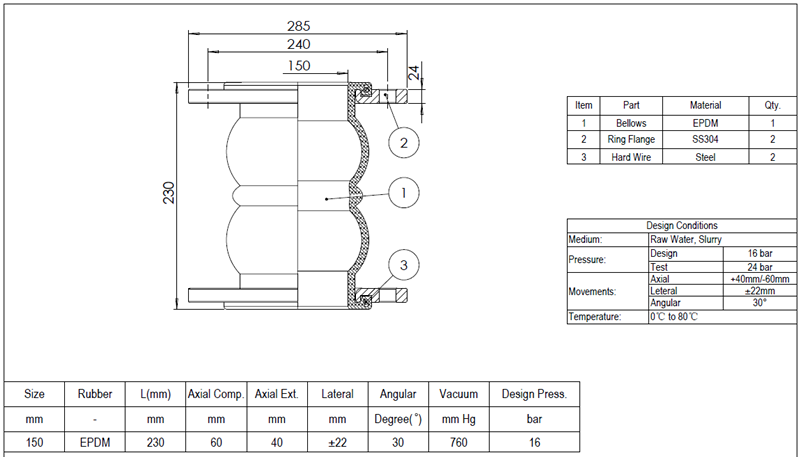

Drawing of DN150-230MM EPDM Rubber Expansion Joint

epdm rubber expansion joint drawing


Features of EPDM Rubber Expansion Joint
• Reduce Vibrations
• Dampen sound transmission
• Compensate lateral,axial,torsional and angular movements

• Light weight

• Low movement forces

• Reduce fatigue factor

• Reduce heat loss

• Corrosion,erosion resistant

• Acoustical impedance

• Greater shock resistance


Function
Fustar designed rubber expansion joints are flexible,reinforced elastomers which are used in piping systems to meet the following major needs:

• To protect piping by absorbing any difference in dimension due to temperature variation or line movement.

• To protect equipment such as supports & anchors,pumps,valves,turbines,condensors & other line equipment by reducing equipment vibration.
• To provide simple connection of misaligned pipes.
• To improve man's comfort by limiting noise from fluid circuits.
• Elimination of Noise and Vibration:
Two characteristics combine to reduce vibrations transmitted by the pipe well and by the fluid itself.

   a , A break in the pipe material,i.e. no metal-to metal contact;

   b , A damping effect provided by the convolution in the joint.

• Movement Accomodation.
