Butt Welded Flexible Metal Hose
Size DN15(1/2”)- DN400(16”)
Butt Welded Flexible Metal Hoses we designed and manufactured are according to GB/T14525-2010 latest standard with good characteristics of large diameter, high temperature resistance, high pressure resistance and high corrosion resistance. The hoses are widely used in domestic and foreign oil & chemical industries, metallurgy, shipbuilding, gaspipe network, refrigeration, vehicle and pharmacy industries ect. And our products had applied all over the world with good reputation from customers.
Welded Flexible Metal hose is one of the most important jointing elements in engineering technology which is consisted by flexible metal hose, outer protecting wire and connection joints each side. It is applied in pipelines of gas transmission, liquid transmission and length, temperature, location compensation system as compensation elements, sealing elements, connection elements and shock absorption elements. So it is widely applied in aeronautics and astronautics, petrochemical industry, machinery shipbuilding, medical treatment and public health and energy sources industries etc. For many territories, the butt weld flexible metal hose is a good element. We also have many similar products, such as flanged flexible metal hose, threaded flexible metal hose, stainless steel quick joint flexible metal hose pipe and so on.
Construction

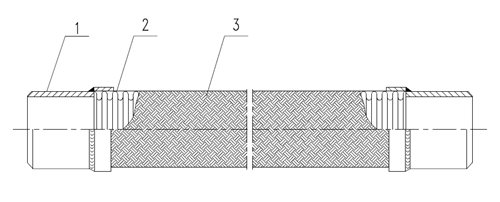

Butt welded flexible metal hose drawing
 |
| NO.S | ITEMS | MATERIALS | REMARK |
| 1 | Connection tube | Stainless steel SS304/SS316L/SS321 | -------------- |
| 2 | Bellow | SS304/SS316L/SS321 | Annular/Helical corrugation |
| 3 | Braids | SS304 | 1/2/3 layer |
Specification
Normal Diameter :DN15~DN400
Bellow thickness :0.28mm~1.2mm
Available Pressure : PN≤2.5Mpa
Available Temperature : -196℃ ~ +600℃
Medium: oil,water,gas, chemical ,oxygen and so on
Materials : Bellows,braids----Stainless steel SS304,SS316L,SS321
End pipe----Stainless steel SS304,SS316L,SS321, carbon steel
Recommend length: 300mm,400mm,500mm,600mm,1000mm,2000mm
Common used size : ￠15, ￠20, ￠25, ￠32, ￠50, ￠65, ￠80, ￠100, ￠125, ￠150, ￠200, ￠250, ￠300, ￠350, ￠400
Advantages
Very good flexible ,works effectively .
Excellent welding , fish-scale welding like a fish swimming in the water.
Use SS308 ,SS309 welding wire during welding of stainless steel bellows.
Apply in limited space and larger offset.
Applications of Butt Welded Flexible Metal Hose
Pipelines that need fully flexible and vibration resistance, medium like gas, air, heavy oil, petroleum, chemical-pharmaceutical, etc, are all available with Fustar metallic welded flexible metal hoses.
