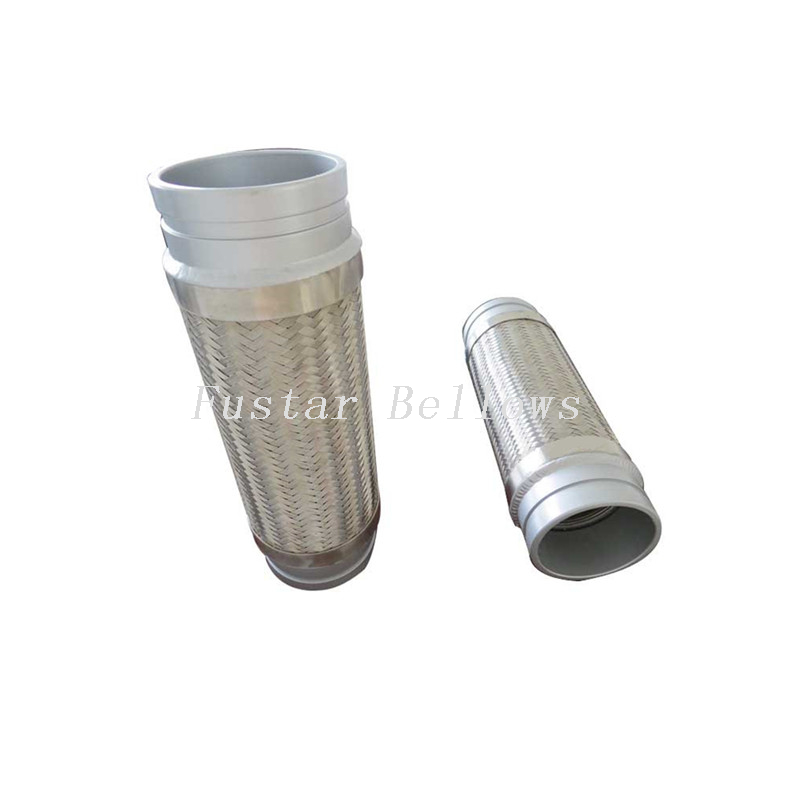

DN100 stainless lap joint weld connection type corrugated braided metal flexible hose

DN100 weld connection metal flexible hose can be used widely in systems like water,steam,hot oil and gas with their resistance to pressure and flexible structure. They are utilized for conducting liquids,compensating the problems originated from installation,absorbing vibrations and expansions.
End welding tube: Stainless steel SS304/SS316/SS321
Bellows:SS304/SS316L/SS321
Braids:SS304
Availability:
Quantity:
  • DN100
  • Fustar
  • 83071000

DN100 stainless lap joint weld connection type corrugated braided metal flexible hose
Fustar manufactures a complete line of annular corrugated braided metal flexible hose in many different sizes,materials

and configurations.Our lap joint welded metal flexible hose is ideal for absorbing vibration,misalignment,piping expansion or contraction and equipment motion.

Brading enables use at high pressures and also attenuates vibration.Each annular corrugation is a seperate element engineered to impart optimal flexibility for each size of corrugated braided metal flexible hose that we offer.


Construction

Butt welded flexible metal hose drawing
                   Butt welded_副本
NO.S ITEMS MATERIALS REMARK
1 Connection tube Stainless steel SS304/SS316L/SS321 --------------
2 Bellow SS304/SS316L/SS321 Annular/Helical corrugation
3 Braids SS304 1/2/3 layer



Specification
Normal Diameter :DN15~DN400
Bellow thickness :0.28mm~1.2mm
Available Pressure : PN≤2.5Mpa
Available Temperature : -196℃ ~ +600
Medium: oil,water,gas, chemical ,oxygen and so on
Materials : Bellows,braids----Stainless steel SS304,SS316L,SS321
End pipe----Stainless steel SS304,SS316L,SS321, carbon steel
Recommend length: 300mm,400mm,500mm,600mm,1000mm,2000mm
Common used size : ¢15, ¢20, ¢25, ¢32, ¢50, ¢65, ¢80, ¢100, ¢125, ¢150, ¢200, ¢250, ¢300, ¢350, ¢400



Special Lap Joint Welding Metal Flexible Hose Assemblies
For many years FUSTAR has combined technologies of corrugated braided metal flexible hose with expansion joints into composite assemblies to perform in special applications. When an unusual or difficult problem must be solved,FUSTAR engineering can create a solution. Some examples are shown below.

DN100 stainless lap joint weld connection type corrugated braided metal flexible hoses are frequently the only practical transfer metal flexible hose for various chemicals,particularly if elevated temperatures are included.


Need even more flexibility ? FUSTAR engineering can vary core widths, height and metal gauge to provide a custom corrugated braided metal flexible hose based on your design requirements.Consult factory for details.


Jacketed Assembly

When conveyants must be maintained at a specified temperature,steam jacketing is used frequently,often in lieu of electric tracing.


Guarded Assembly

Use of an external flexible armor protects lap joint metal hose from abuse due to rough handling,abrasion and bending below its limits. Often a rubber cover can accomplish this as well as armor if temperatures will permit.


Lined Assembly

If high conveyant velocities are required,use of an internal flexible metal liner will prevent damage and reduce abrasion problems.
