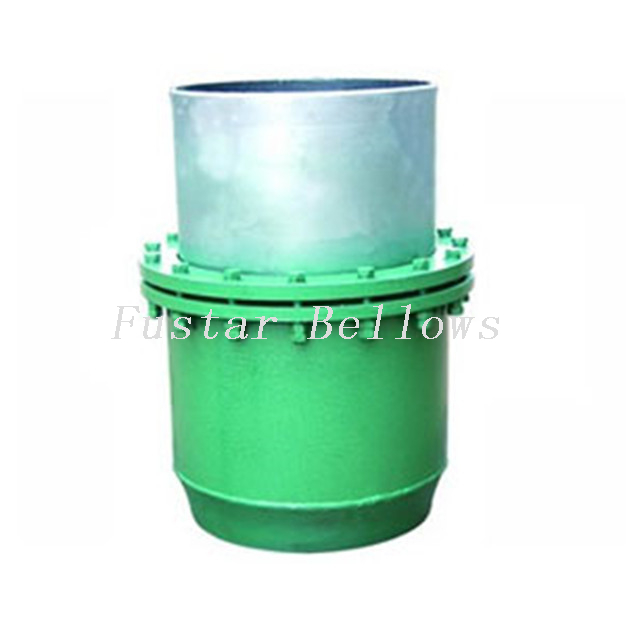

Single Way Sleeve Compensator

Sleeve type compensator adopts composite high temperature resistant flexible graphite seal packing and has a small friction resistance.At present,it's the most advanced sealing material in domestic,the use temperature can be 630℃. The core tube and shell are made of composite ceramic steel tubes,used for various wear resistant and corrosion resistant process pipelines,wear resistance is equivalent to 30 times that of ordinary steel tubes.
Availability:
Quantity:
  • DN350
  • Fustar
  • 73072900

Single Way Sleeve Compensator
Sleeve compensator also named tube type expansion joint or pipe expansion joint, which is compensation device of hot fluid pipeline, mainly used for auxiliary equipment in straight pipeline. There are a lot of applications of compensator, such as: hot water, steam, oil medium and so on, to achieve thermal expansion compensation between the sliding sleeve and outer sleeve by sliding movement. One feature of Single Way Sleeve Compensator, it has no long life, fatigue life amount to pipeline. Besides, it is used without requirement of chloride ion content, especially suitable for medium or surrounding system of excessive chloride ions. It is must be rely on guide bearings to withstand pipeline lateral forces, this is Single Way Sleeve Compensator's structure characteristic. We guarantee the quality and price of compensator, do not hesitate.

Features
   · Apply for medium engineering pressure ≤4.5MPa, temperature -190~630
   · Using the new style sealing material of flexible graphite,has the characteristics of high strength, small coefficient of friction (0.04~0.10), no aging, good effect, convenient  maintenance and so on.
   · With long life, fatigue life amount to pipeline. After special treated to sliding surface, it’s good corrosion resistance in salt water, saline solution and other environments, more higher than  austenitic stainless steel 50 times. Meanwhile, after years of abrasion causes a sealing effect due to weakened , it can repair automatically without affecting use continued under the pressure of the spring tension.
   · It is used without requirement of hloride ion content, especially suitable for medium or surrounding system of excessive chloride ions.
   · Sleeve compensator is divided into single-way and two-way types.Two-way structure is characterized by media inflowed from any side,sliding sleeve is always free to slide in both ends, realize two-way compensation, increase compensation amount.
   · Buried sleeve-type compensator can be buried in the ground, may not be provided well repair when installation,low construction cost. Sleeve compensator is suitable for pipe laid by straight line, consists of inner sleeve, outer sleeve,check injection material combination, end sleeve, packing chamber, guide bearings and so on.



Technique Parameter

Nominal

Diameter

Compensation

Single Way

Connection Tube

Outer Diameter

Maximum

Outer Diameter

Length

L

Single Way

Friction

   KN

mm

mm

mm

mm

mm

1.6Mpa

50

150

57

230

610

1.72

65

150

76

250

610

2.68

80

150

89

265

610

3.42

100

150

108

280

610

4.51

125

150

133

310

610

5.23

150

250

159

335

810

7.89

200

250

219

415

810

13.10

250

250

273

465

860

19.5

300

250

325

520

860

24.72

350

250

377

570

860

29.15

400

300

426

620

970

37.63

450

300

480

670

970

44.59

500

300

530

730

990

52.16

600

300

630

830

990

59.47

700

400

720

930

1280

65.12

800

400

820

1030

1280

78.37

900

400

920

1135

1280

96.53

1000

500

1020

1235

1550

133.5

1100

500

1120

1340

1550

147.21

1200

500

1220

1440

1550

158.32

Flange supply according to GB/T 9119-2000 standard ,also can supply according to clients’other requirements.
